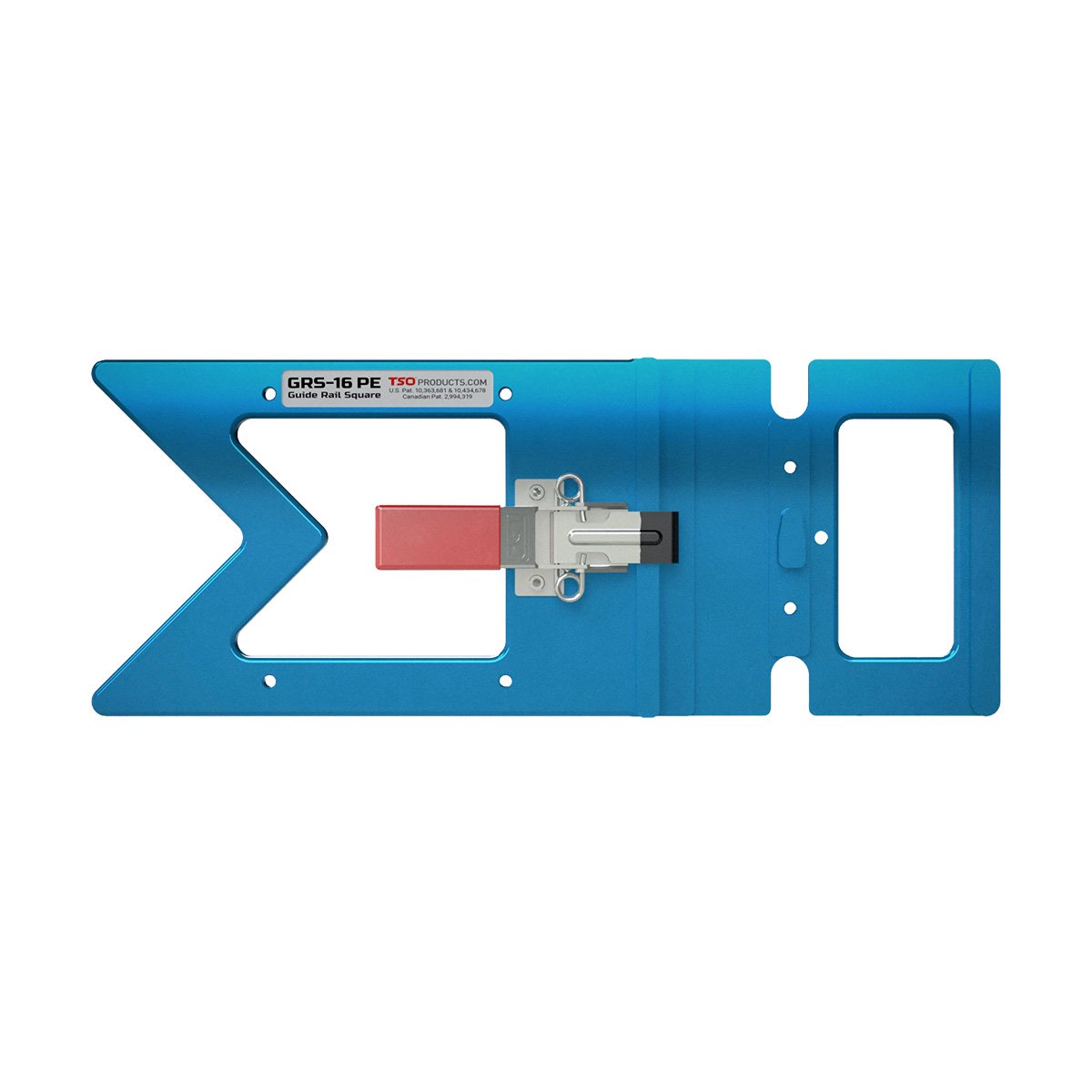

TSO Products GRS-16 PE Parallel Edge Guide Rail Square

TSO Products

GRS-16 PE Parallel Edge Guide Rail Square

SKU: 61-230-RA

TSO Products GRS-16 PE Parallel Edge Guide Rail Square

SKU: 61-230-RA

Patented precision guide rail square for FESTOOL®, MAKITA® & TRITON® track saw guide rails

  • Lighter than its predecessor despite being CNC machined from 25% thicker aluminum, with a mating vertical edge that now perfectly matches the height of your guide rail extrusion for maximum support and engagement
  • Now fits in a Systainer—see our new Dual FoamPac Systainer Insert
  • Latch hook now features a resilient coating to grasp and protect the edge of your guide rail
  • Reshaped T feature lead-in makes it even easier to install onto your guide rail
  • Accessory mounting holes tapped for M6 threads—enables connection to the TSO Parallel Guide System and Angle Accessory
  • Adjustments to key tolerances to better accommodate production variances observed in guide rail manufacturing
  • Fasteners used on all TSO brand tools are now metric for worldwide availability
  • New, fully recyclable all-corrugated white packaging

Compatible Guide Rails: FESTOOL, MAKITA, and TRITON
(not compatible with FESTOOL HK 55 Carpentry Saws including the FSK 250, FSK 420, and FSK 670; not compatible with BOSCH or DEWALT tracks)

Simple, Automatic Accuracy

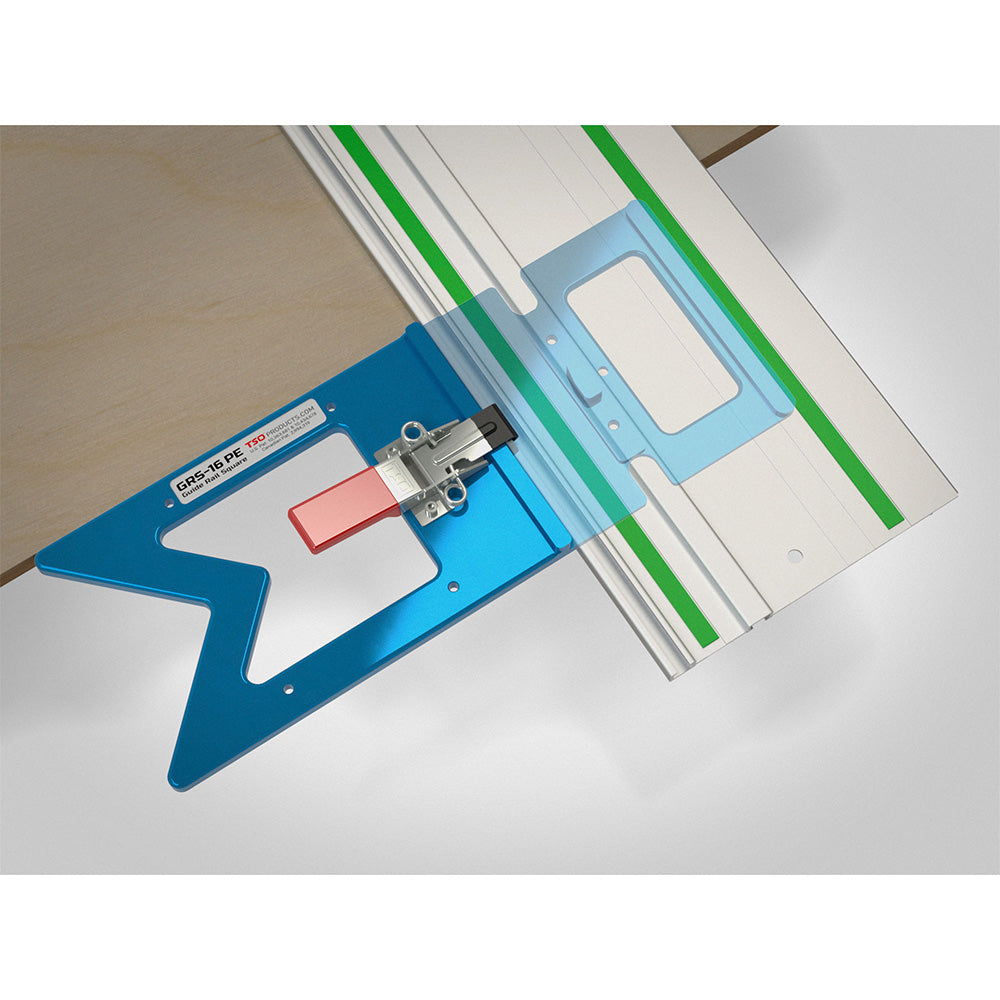

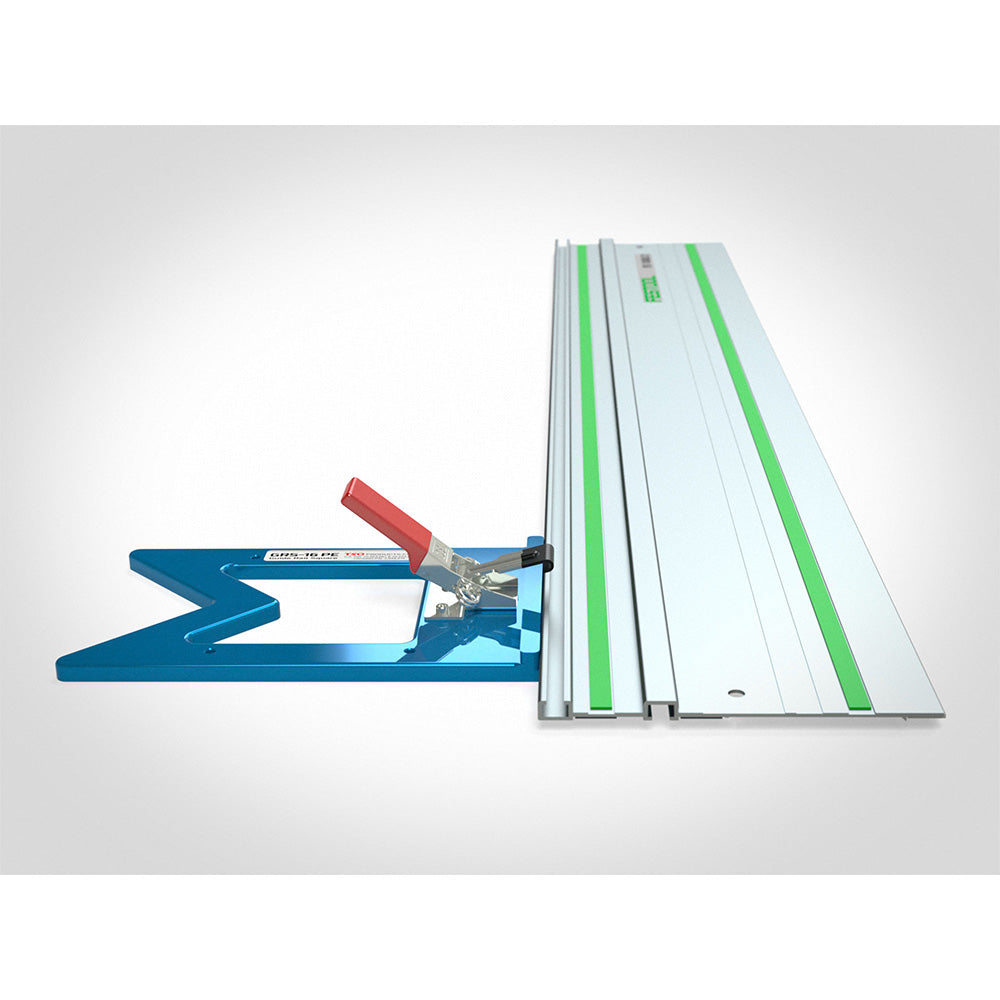

Before the GRS-16 family, accessories for squaring up your track saw guide rail relied on the loose-tolerance T-slot found on just about every guide rail. To overcome this inherent inaccuracy, you had to rely on a separate reference square, plus a combination of loose parts like T-bars, hex bolts, knobs, or wingnuts. No longer! The patented GRS-16 PE is completely self-contained and self-aligning, thanks to an innovative, high-strength integral draw latch mechanism. Simply slide the GRS-16 PE onto your guide rail, lock the draw latch, and you're done. Five seconds to square.

Built For A Lifetime Of Service

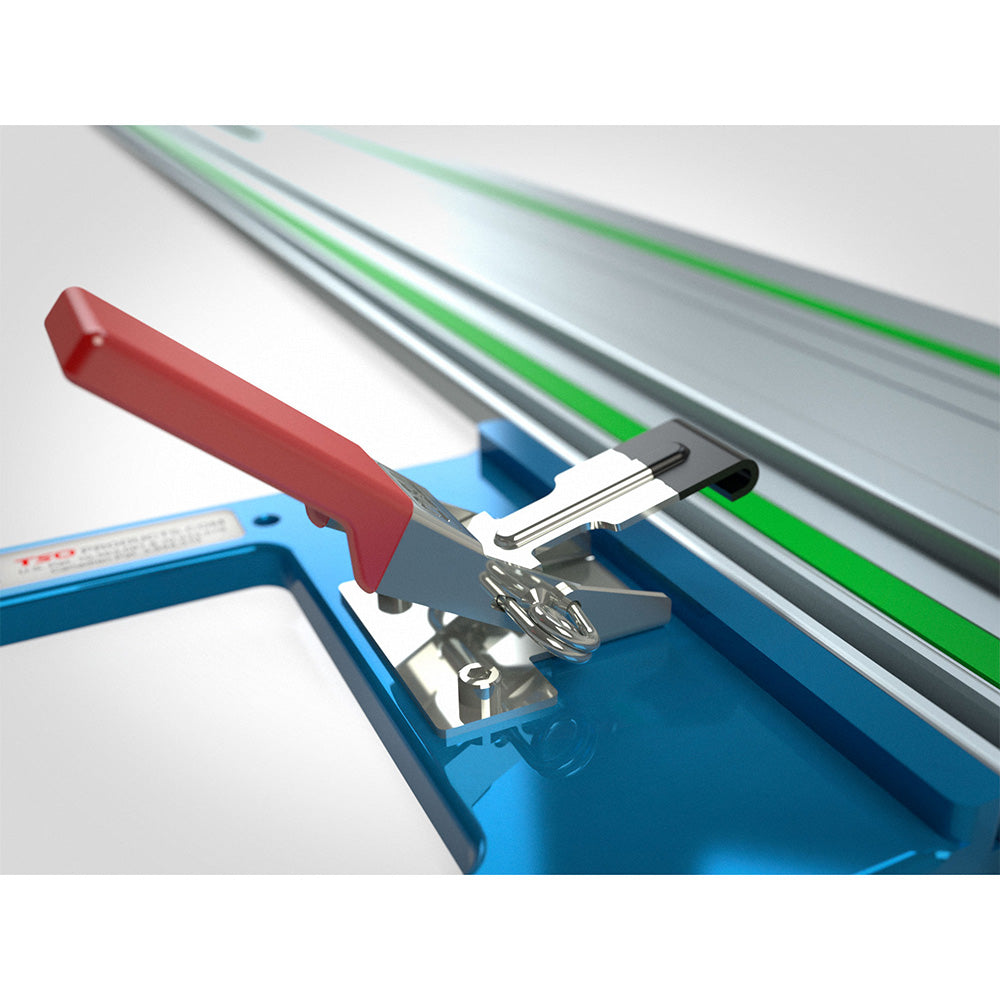

The GRS-16 PE is precision CNC machined from a single piece of 5/8" (15 mm) thick 6061-T6 aluminum and then anodized for a non-marring, high durability finish. The high-strength draw latch is built from stainless steel—to resist rust and pitting over time. Despite its high clamping strength, a comfort coating on the latch handle makes it easy to generate the leverage necessary to engage, release or reposition the square along your length of track. The GRS-16 is made in the United States and comes with our lifetime warranty.

MFT/3 Compatibility

We have added the ability to connect the GRS-16 PE to the MFT/3 guide rail hinge bracket! The time-consuming re-squaring process of the MFT guide rail is now a thing of the past with the newest GRS-16 PE. Rail squareness is now assured, unaffected by varying material thickness and rail height adjustment. We engineered this feature to keep the kerf line in exactly the same location as your standard MFT/3. You can quickly change back to the original MFT/3 arrangement any time.

Weight: 1.9 .lbs
Dimensions: 15.2" x 6.0" x 1.4"
Material: 6061-T6 aluminum, anodized, 5/8" (15 mm) thick
