TSO Products DoubleGroove™ 20mm Bench Dogs - Large

TSO Products

DoubleGroove™ 20mm Bench Dogs - Large

SKU: 61-405 A

order today only 6 left in stock
$32.95

T

Free Shipping

Click Checkmark for Details


TSO Products DoubleGroove™ 20mm Bench Dogs - Large

SKU: 61-405 A

Innovative 20mm Bench Dogs Ideal For Most Workholding Applications

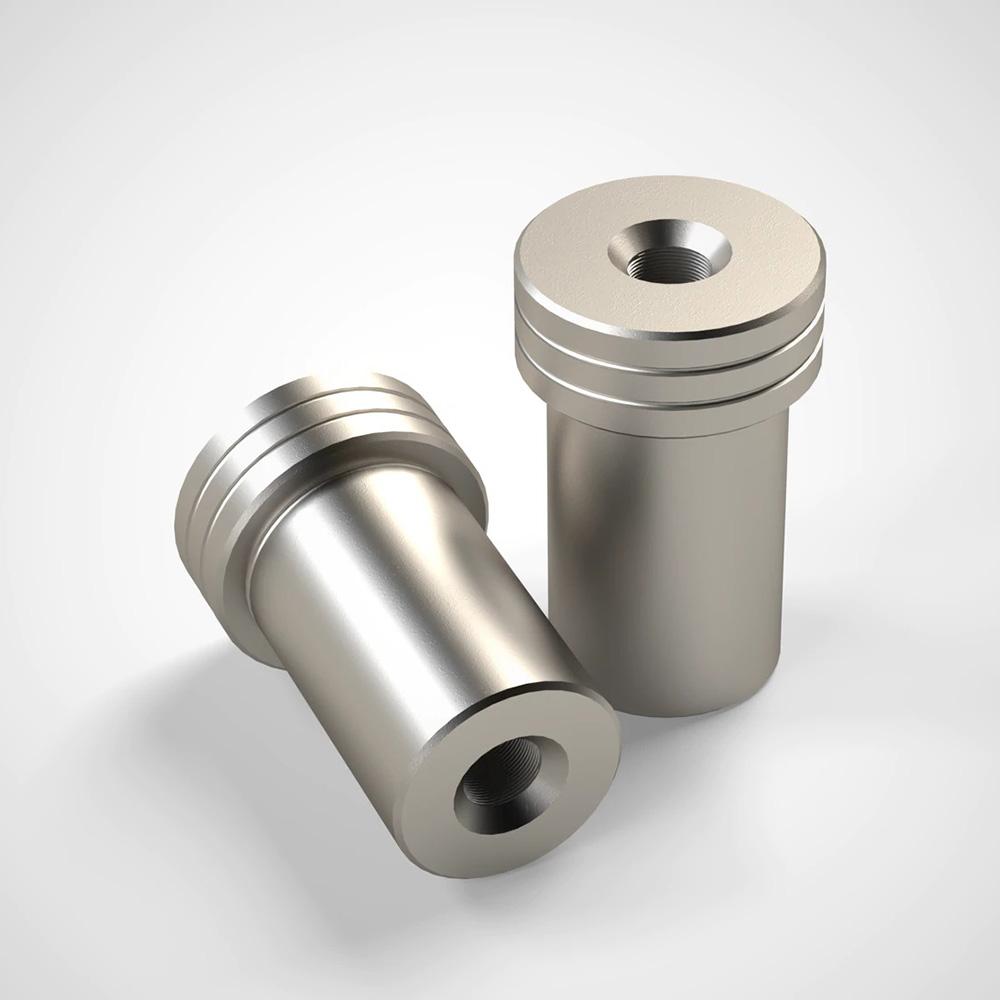

We've reinvented the modern 20mm bench dog and, in the process, addressed some common frustrations. Having dealt with our fair share of ill-fitting or "stuck" dogs, we've designed our dogs with twin grooves that run along the collar. While it may not seem like much, these double grooves make it much easier to remove the dog once it has been installed. Sharing the same careful attention to detail that has set our precision tools apart, small but important design elements—like the tiny undercut beneath the collar that guarantees a perfect 90-degree transition, even if the holes in your work surface aren't perfectly devoid of tearout, or slight chamfers along the touchable surfaces—result in a tool that's comfortable, accurate and a pleasure to use.

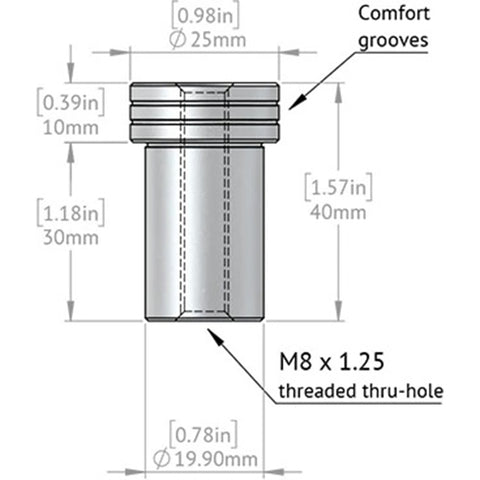

DoubleGroove™ Large Dogs measure 30mm from collar to bottom, making them the perfect size for our MTR-18 Precision System Triangle or very thick perforated worktops. To accommodate clamping, an included M8x1.25 threaded hole at the bottom of each dog accepts our M8 SpeedKnobs™, FESTOOL® M8 knobs from the clamping elements kit, or any other similar off-the-shelf M8x1.25 threaded knob. All DoubleGroove Dogs are made in the USA from 6061-T6 aluminum on high-precision CNC machining centers and are clear anodized for maximum durability. Sold in pairs.

  • Easier to Use: Twin grooves running along the collar make DoubleGroove Dogs easier to remove than other dogs on the market; no more stuck dogs!
  • A Perfect Fit: Precision machined to exacting tolerances, with a diameter of 19.9mm to strike the perfect balance between solid, secure mounting and ease of insertion/removal.
  • Ideal for Custom Worktops: If you've made your own perforated worktop based on the 20x96mm standard and aren't quite sure if your tolerances are perfect, you'll likely find DoubleGroove Dogs to be a better choice. Their twin collar grooves will make it easier to remove dogs that might become "too snug," and a swept undercut along the collar means DoubleGroove Dogs will mount flush even if your holes have tearout.
  • Clampable: Each dog includes an M8x1.25 threaded hole, perfect for use with our SpeedKnobs to secure the dogs inside your 20mm perforated worktop. (If you already have the knobs from Festool's 488030 Clamping Elements, those will work too, but you'll find our SpeedKnobs to be much faster and easier to thread.)
  • Material: 6000 series aluminum alloy, T5 tempered and anodized clear
