Carbide Tipped Corner Round 3/16 Radius x 7/8 Diameter x 1/2 x 1/2 Inch Shank

Name: Carbide Tipped Corner Round 3/16 Radius x 7/8 Diameter x 1/2 x 1/2 Inch Shank
Brand: Amana Tool
SKU: 49502
Price: 41.00 CAD
Availability: InStock

Carbide Tipped Corner Round 3/16 Radius x 7/8 Diameter x 1/2 x 1/2 Inch Shank

SKU: SKU:49502

$41.00

Sale Sold out

Order today only 1 left

Quantity

Free Shipping

Click Checkmark for Details

Amana Tool Carbide Tipped Corner Round 3/16 Radius x 7/8 Diameter x 1/2 x 1/2 Inch Shank

SKU: 49502

(D) Diameter:	7/8"
D1:	1/2"
(R) Radius:	3/16"
(B) Cutting Height:	1/2"
(d) Shank:	1/2"
(L) Overall Length:	2-7/16"
Replacement Bearing:	47706
Flutes:	2

View full details

Amana Tool Carbide Tipped Corner Round 3/16 Radius x 7/8 Diameter x 1/2 x 1/2 Inch Shank

SKU: 49502

(D) Diameter:	7/8"
D1:	1/2"
(R) Radius:	3/16"
(B) Cutting Height:	1/2"
(d) Shank:	1/2"
(L) Overall Length:	2-7/16"
Replacement Bearing:	47706
Flutes:	2

Overview

Overview

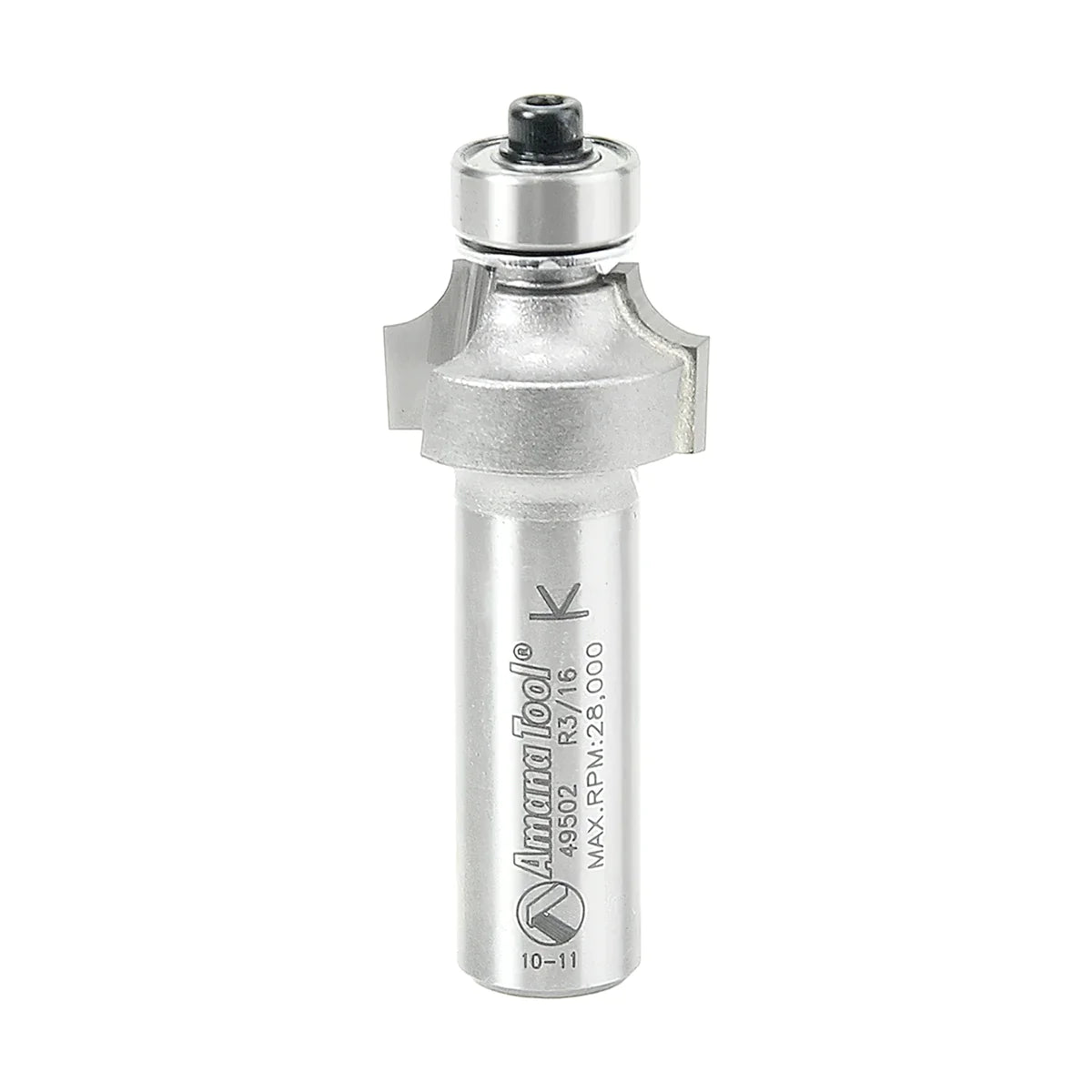

The basic edge-forming bit, the corner-rounding bit rounds an edge to a given radius. The tool is shouldered to cut a fillet. The cut can be used to ease edges, as a simple profile, or as a part of a complex one. Also known as roundover, rounding over and quarter-round. If a smaller pilot bearing is used, a second shoulder can be produced, in effect making the bit a beading bit.

Excellent for cutting:
