Axiom Precision
8pc CNC Bit Set by Amana Tool
8pc CNC Bit Set by Amana Tool
SKU: SKU:ABS108
Order today only 2 left
Couldn't load pickup availability
Click Checkmark for Details
Axiom 8pc CNC Bit Set by Amana Tool
SKU: ABS108
- Overview
For the most demanding signmaking, lettering and engraving tasks. Designed for creating signs and other CNC projects in a variety of materials. Each router bit is manufactured from Amana's exclusive grade carbide according to stringent quality standards.
*Vcarve and Aspire users* The purchase of this Axiom router bit set includes a free download of the tooling geometry and simple instructions which allow you to easily import your new bits directly into your Vectric tooling database.

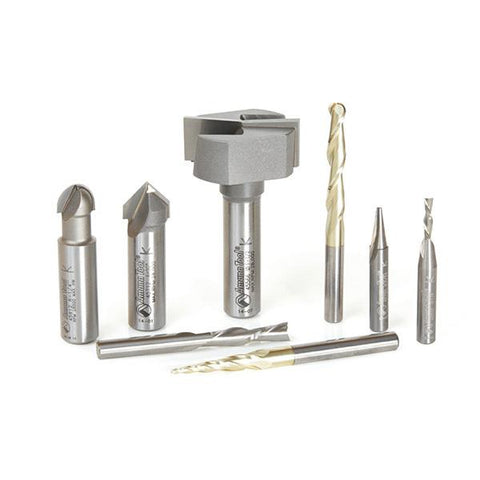

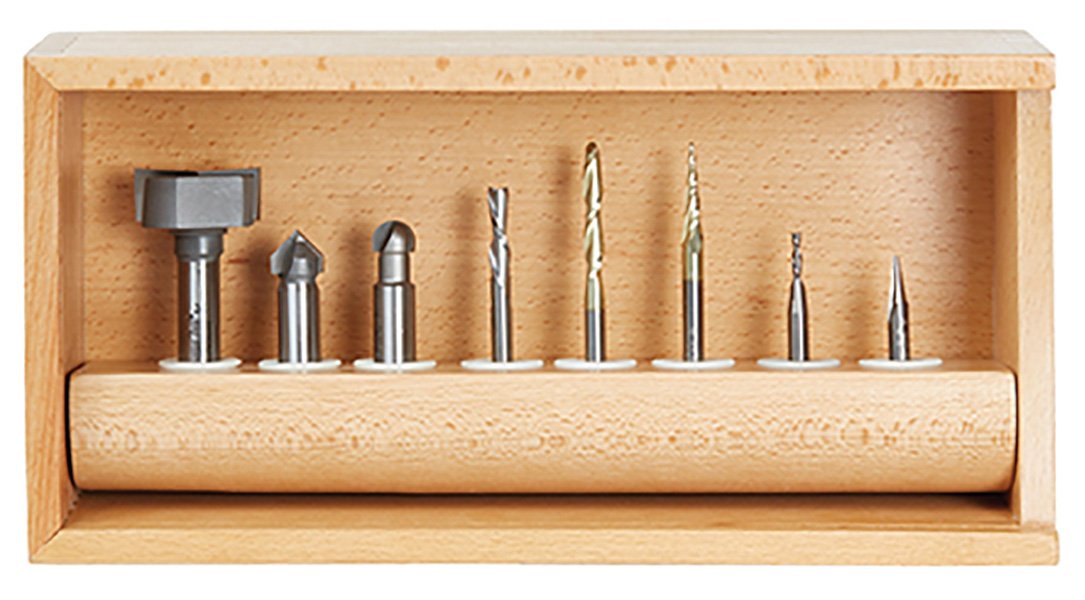

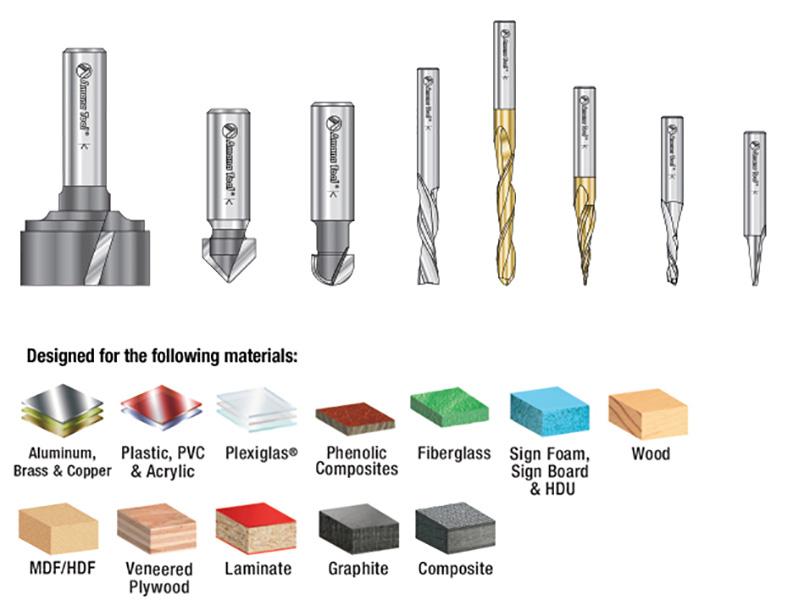

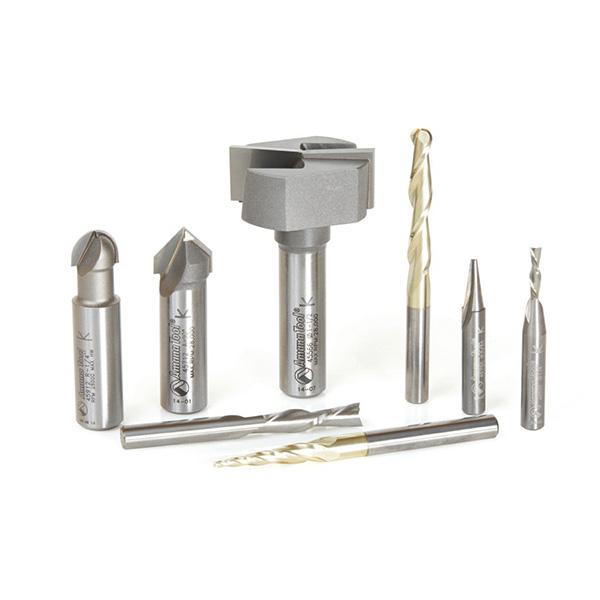

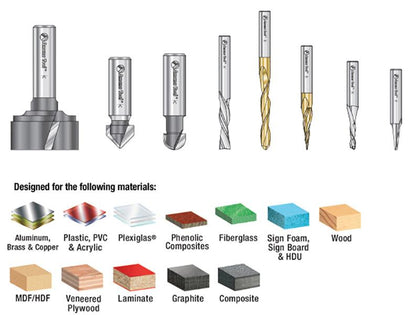

Set includes 1 of each of the following bits
Carbide Tipped Bottom Cleaning / Spoilboard:
1-1/2 Diameter x 5/8 x 1/2 Inch Shank Upshear Design |
Carbide Tipped V Groove
90 Deg x 5/8 Diameter x 1/2 x 1/2 Inch Shank |
Carbide Tipped Core Box
1/4 Radius x 1/2 Diameter x 3/8 x 1/2 Inch Shank |
Solid Carbide Spiral Plunge
1/4 Diameter x 1 Inch x 1/4 Shank Down-Cut |
CNC 2D and 3D Carving
0.10 Deg Tapered Angle Ball Tip 1/4 Diameter x 1/8 Radius x 1-1/2 x 1/4 Shank x 3 Inch Long x 2 Flute Solid Carbide ZrN Coated |
CNC 2D and 3D Carving
5.4 Deg Tapered Angle Ball Tip 1/16 Diameter x 1/32 Radius x 1 x 1/4 Shank x 3 Inch Long x 4 Flute Solid Sub Micrograin Carbide ZrN Coated |
Solid Carbide Spiral Plunge
1/8 Diameter x 1/2 x 1/4 Inch Shank |
Solid Carbide V Groove Engraving
7.5 Deg x 3/16 Diameter x 1/2 x 1/4 Inch Shank |
Share



Unless Otherwise Indicated All Prices Are F.O.B. Our Winnipeg Warehouse
If you are picking items up in store please call ahead to confirm availability.
