Mini-Mite 3 Platinum T-Series HVLP System Gravity Feed - UM_FMI

Fuji Spray

Mini-Mite 3 Platinum T-Series HVLP System Gravity Feed

SKU: 2803-T75G

order today only 1 left in stock


Free Shipping

Click Checkmark for Details

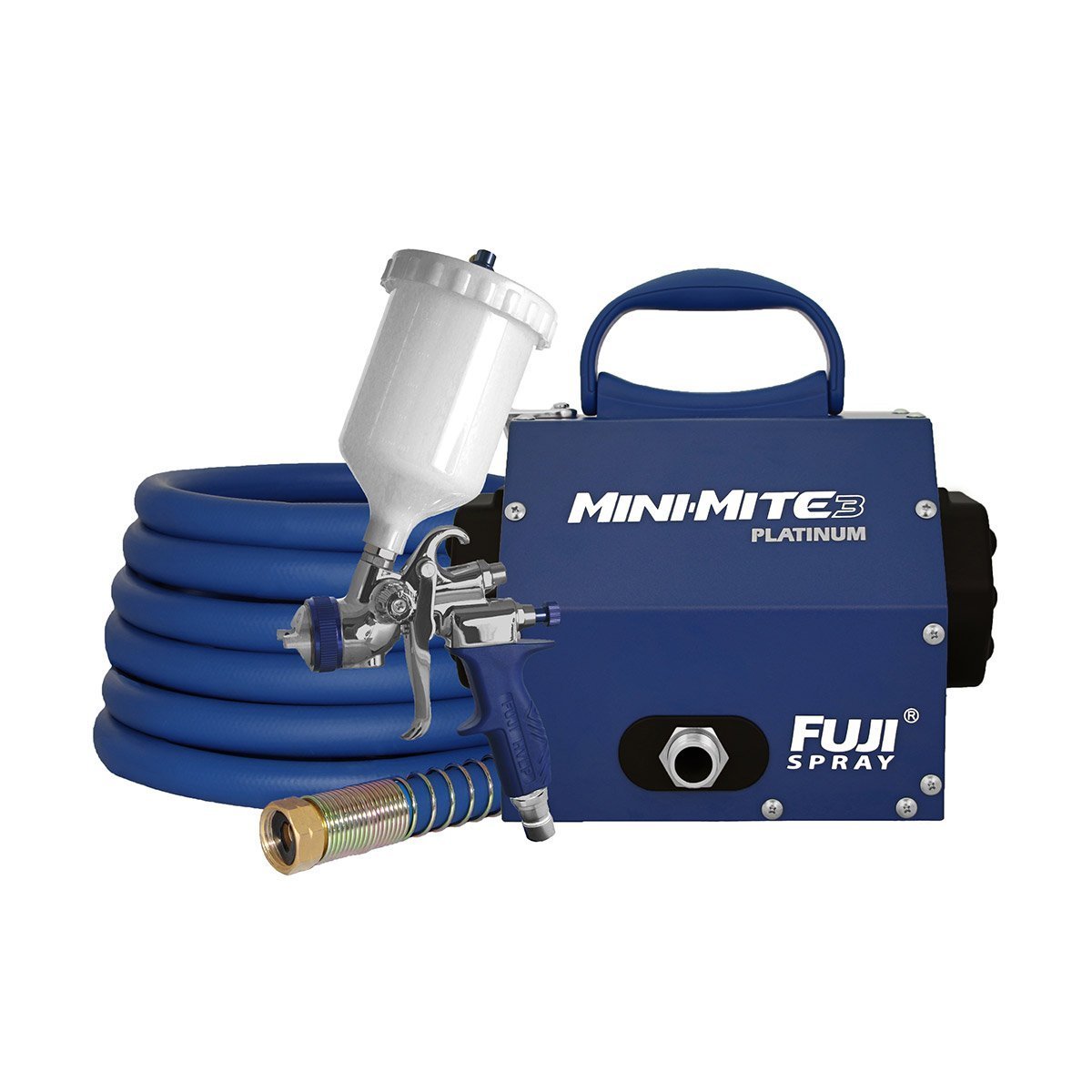

Fuji Mini-Mite 3 Platinum™ T-Series HVLP System Gravity Feed

SKU: 2803-T75G

The Mini-Mite 3 Platinum™ utilizes a powerful 3-stage Turbine Motor installed in a durable Metal Turbine powder coated case. The T-Model Gravity Feed Spray Gun (USA Patented) is a Non-Bleed with a side Pattern Control Knob allows the user to easily adjust the fan pattern. with Stainless Steel Fluid Components. Plus extra features such as an Air Control Valve and a High-Efficiency Air-cap for even less over spray.

The T-Series Gravity Gun now features a 600cc nylon gravity cup and lid. The lid on this nylon cup provides a perfect seal with no gasket required.

It is often thought that the reason that most people purchase an HVLP system is for speed, but we have found that the main reason is really the desire for a high quality of finish. Of course, any spray system is a few times faster than brushing - admittedly, even a cheap version will give you speed. But for quality of finish, you do need power and a high quality spray gun with all the features.

The Platinum™ series is built with the Fuji Spray Heat Dissipation Box™. See below for the benefits of this technology.

The Fuji Spray Heat Dissipation Box™

Fuji Spray has designed a unique method of removing any heat build up from the Turbine case. Excess heat is channeled to a Heat Dissipation Box™ located at the rear of the case.
Because the hot air is dissipated evenly through an optimum surface area with 60 holes, there is no added hiss or loud whistling noise. There is also no blowing around of dust.
The benefits of a cooler running unit results in a longer life for your Turbine motor compared to standard Turbines

Spray cabinets, furniture, autos or pianos - in fact, anything wood or metal. A powerful, portable system for all fine-finishing.

Recently voted Authors Best Overall and Best Value in Fine Woodworking Magazine. Click Here to read the article.

What's included with the Mini-Mite 3 Platinum™ T-Series System?

Mini-Mite Platinum 3 Stage Turbine
T-Series Gravity Feed Spray Gun
1.3mm Air Cap Set
25 Foot (7.62m) Hose
Quick Connect Coupler
Air Control Valve
Viscosity Cup
Cleaning Brush
Turbine Dimensions 12" x 8.6" x 8.1" (30.5 cm x 21.8 cm x 20.6 cm)
Weight 22.8 lbs. (10.4 kg.)
Voltage/Hz 110 - 120 volt / 60Hz
Amps 12 Amp
PSI 6.5
Warranty Limited 24 Month Parts and Labor
