Laguna P|Flux: 2 Cyclone Dust Collector

Laguna Tools

P|Flux: 2 Cyclone Dust Collector

SKU: MDCPF22201

Currently Out of Stock
Order Now and we will contact you with the availability date

Your Credit Card will not be charged until the availability date is accepted.

$4,699.00

T

Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.

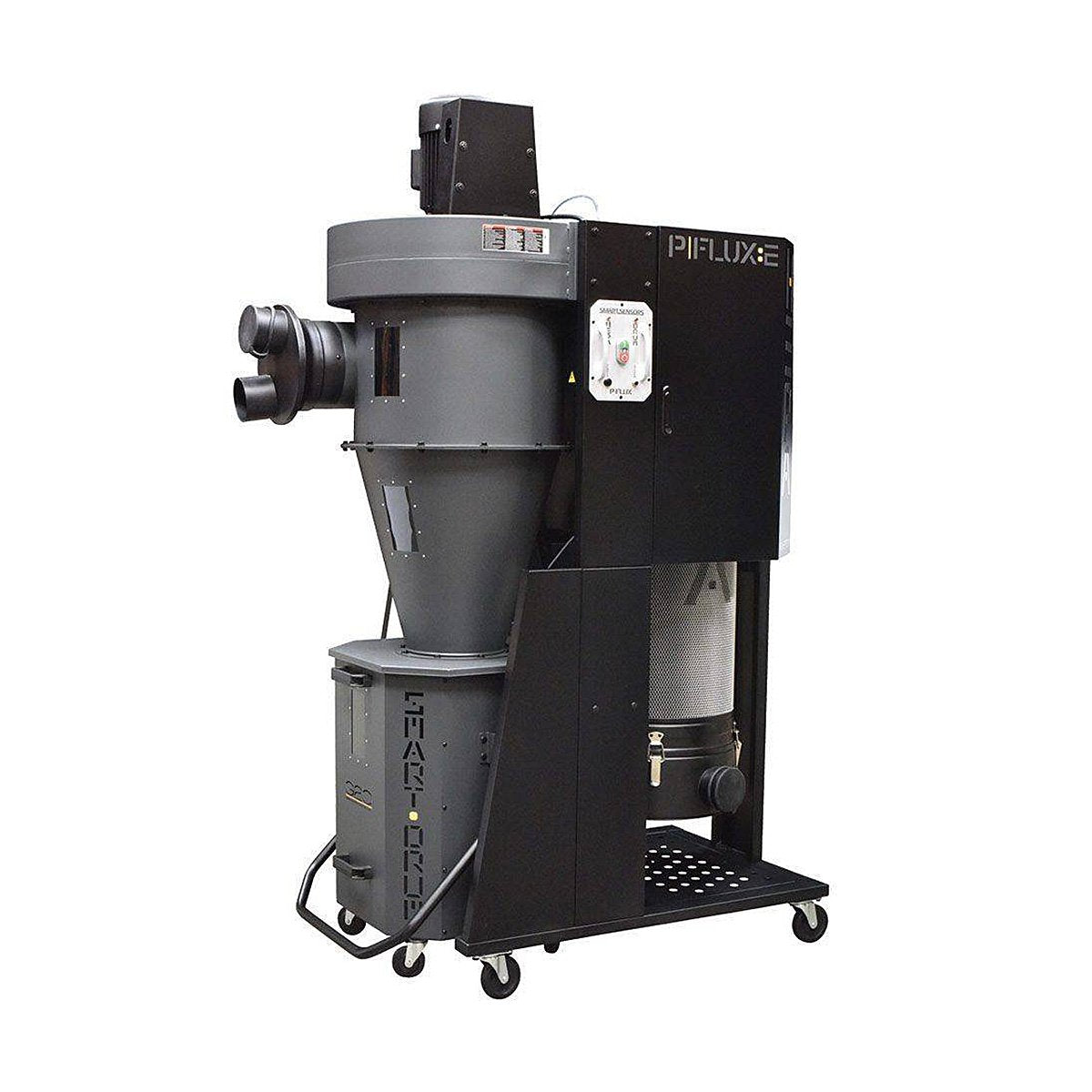

Laguna P|Flux: 2 Cyclone Dust Collector

SKU: MDCPF22201

Peerless performance. Sporting standard black HEPA filtration the P|Flux series is filled with innovative details such as:

  • LED status light shows when drum is full
  • LED status light when filter needs cleaning
  • Swing-away doors sports acoustic foam on the inside to lower noise level.

When lifting the drum into position a connector on the back of drum automatically hooks up to a pipe in cyclone this way creating a low pressure in bottom of the drum, this is designed to hold down plastic bag to avoid it being sucked up into the cone during use, no other cyclone or dust system has such a smart system, it is a vast improvement over last generation.

If you chose to use the p|flux without a bag you can simply shut off the system using a valve offering you speed and flexibility.

Motor: 2HP, 220V, 60Hz, 14A 1-Phase
R.P.M. 3450
Switch type Radio Frequency Remote switch with LED Full drum detection & LED HEPA dirty detection
Handheld remote control High Frequency
Real CFM/Nominal CFM 1166/1640
Max Static Pressure (inches of water) 9.3"
Impeller Fan Type/Size/Material Radial Fin/14 1/2"/Steel
Inlet Diameters 1 - 8" or 2 - 4"
Drum Capacity 33 US Gallons
Filter Type Hepa Canister
Filtration efficiency/Merv Rating ˜0.4micron @ 99.2%
Canister cleaning Manual Handle crank. 270 degrees*
Decibel Reading 76 d B(A) (@9.8ft)
Machine Weight 340lbs. (154kgs.)
Shipping Weight 408lbs. (185kgs.)

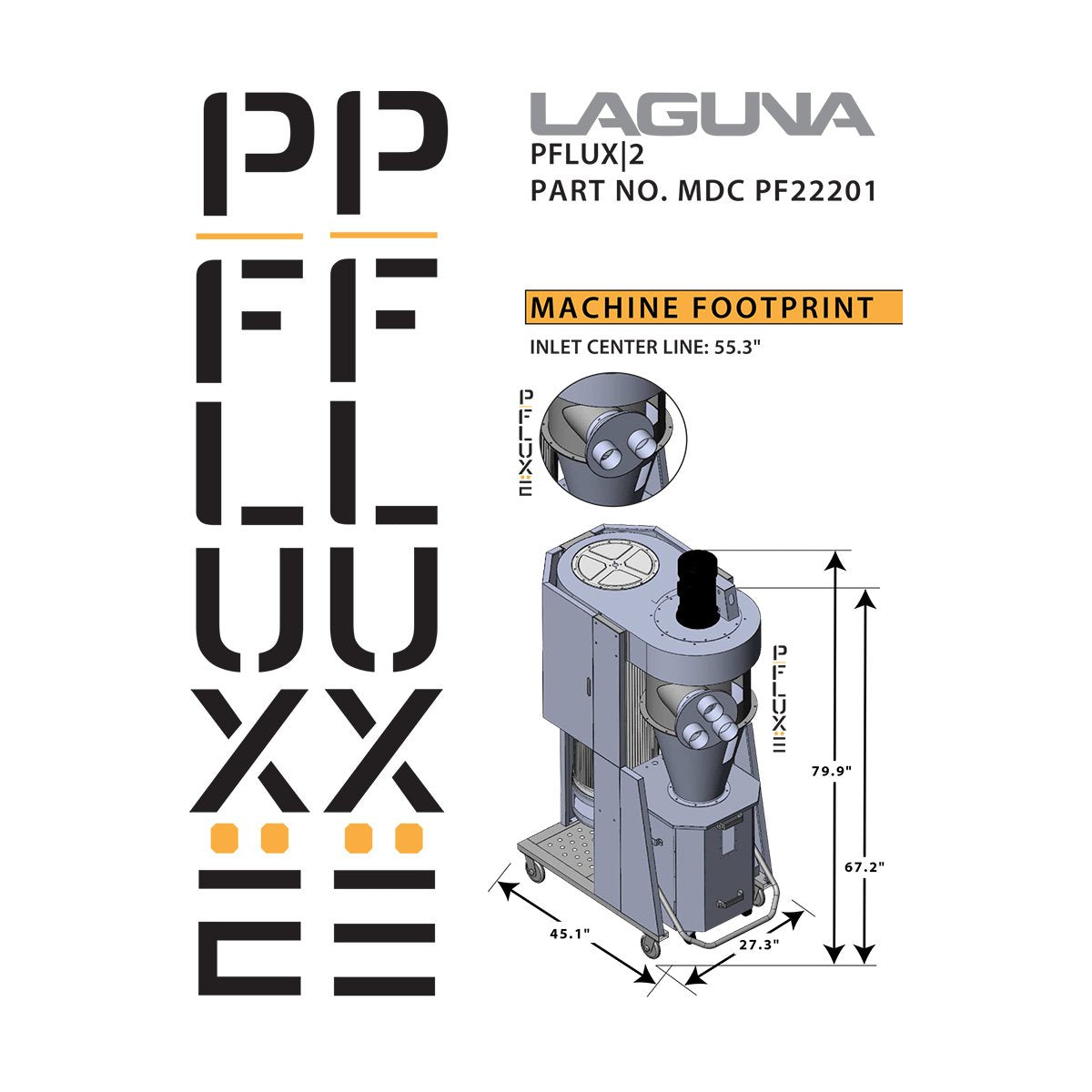

Assembled Dimensions (L x W x H) 46" x 27" x 79" (1178 x 690 x 2025mm)
