Amana Tool

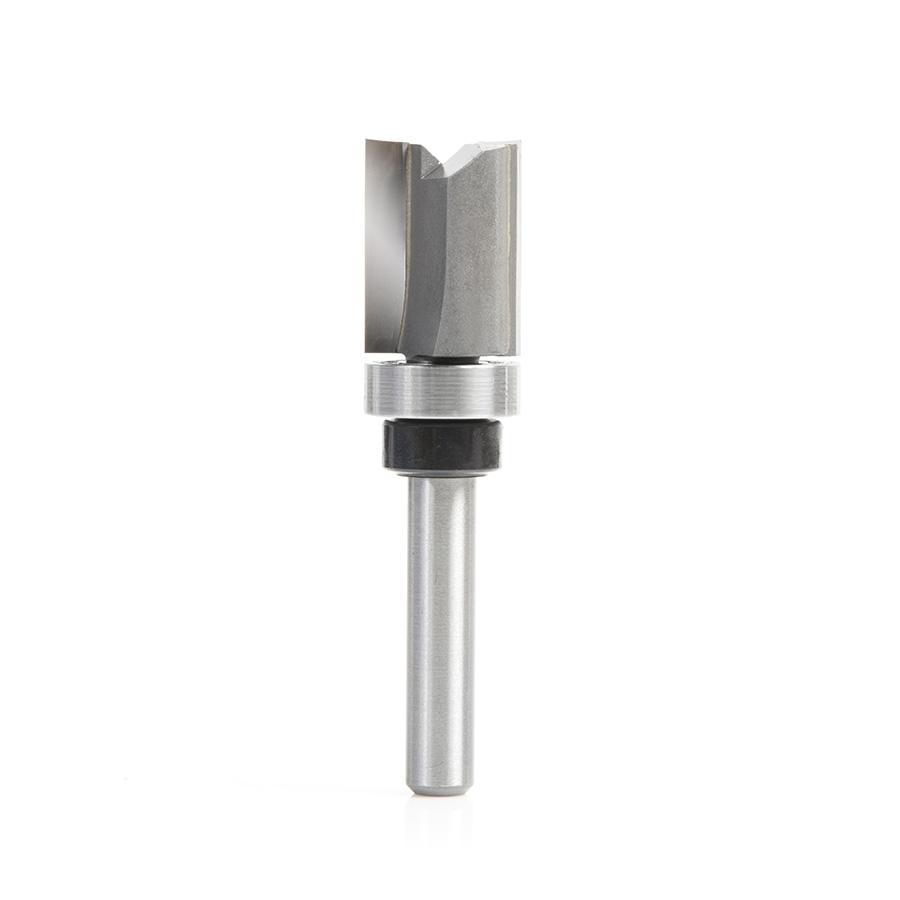

Carbide Tipped Flush Trim Plunge Template 9/16 Diameter x 3/4 Inch x 1/4 Shank with Upper BB

SKU: 45361

order today only 2 left in stock

Description

Amana Tool Carbide Tipped Flush Trim Plunge Template 9/16 Diameter x 3/4 Inch x 1/4 Shank with Upper BB

SKU: 45361

(D) Diameter:	9/16"
(B) Cutting Height:	3/7"
(d) Shank:	1/4"
(L) Overall Length:	2-5/16"
Replacement Collar:	47724
Replacement Bearing:	47753
Flutes:	2

Overview

This bit is essentially a plunge-cutting straight with a shank-mounted ball-bearing pilot. Versatile, useful for template/pattern routing of parts, joints, internal cuts and can be used in handheld and table-mounted routers. The template is attached to the workpiece, and the pilot bearing rides along its edge as the cutting edges rout the workpiece, forming an exact duplicate of the template. With a handheld router, the pattern is on top of the work; with a table-mounted router, the pattern is underneath the work.

AMAX Extended Life Features:

200% longer lifetime even when working with abrasive materials
Superior geometric design
Advanced grinding technology that improves the carbides' resistance to wear
Super clean cuts
