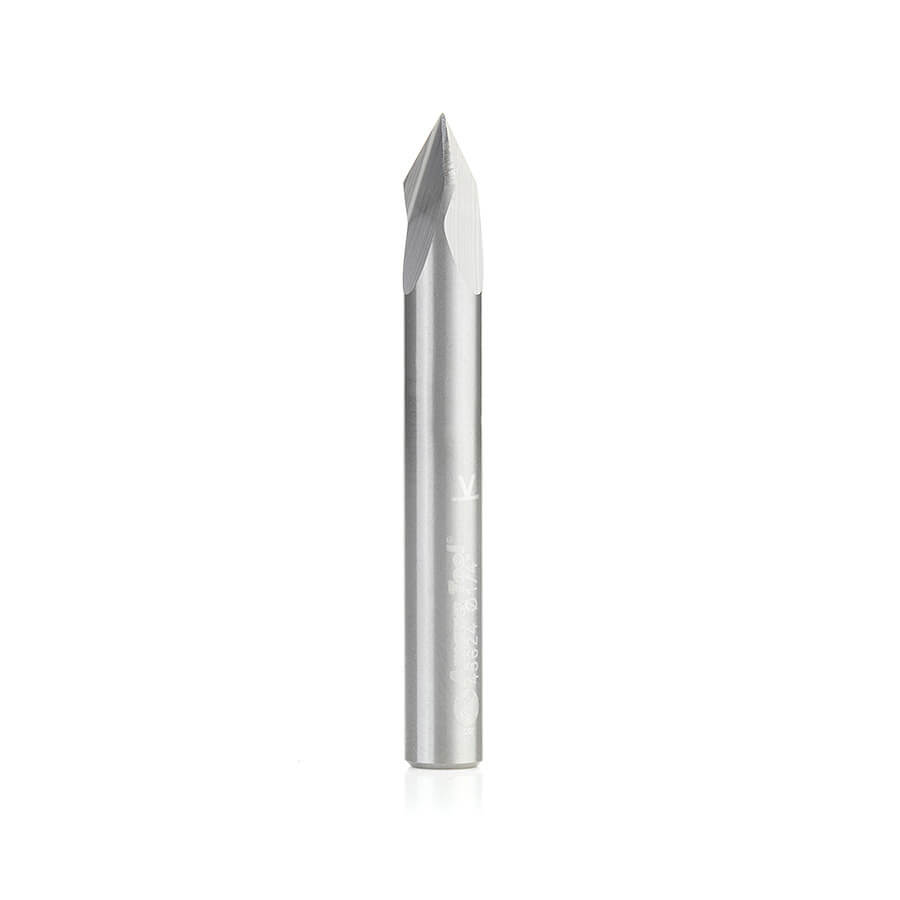

Amana Tool 45624 Solid Carbide V-Groove 60 Deg x 1/4 Diameter x 7/32 x 1/4 Inch Shank

Amana Tool

Solid Carbide V-Groove 60 Deg x 1/4 Diameter x 7/32 x 1/4 Inch Shank

SKU: 45624

order today only 2 left in stock
$35.00

T

Free Shipping

Click Checkmark for Details


Amana Tool Solid Carbide V-Groove 60 Deg x 1/4 Diameter x 7/32 x 1/4 Inch Shank

SKU: 45624

Angle (a°): 60°
(D) Diameter: 1/4"
(B) Cutting Height: 7/32"
B1: 31/64"
(d) Shank: 1/4"
(L) Overall Length: 2"
Flutes: 3
product icon

Cut decorative V-Grooves and lettering on signs with these V-Groove bits. Use with an edge guide to chamfer and bevel edges. Can be used with handheld, table-mounted and CNC routers.

Excellent for cutting:

  • 20lbs High Density Urethane
  • Acrylic
  • Composites
  • Composite Decking
  • Foam
  • Laminate
  • MDF/HDF
  • Melamine
  • Plywood
  • PVC Plastic
  • Sign Board
  • Solid Surface
  • Veneered Plywood
  • Wood
  • Xanita® Board

Tool #45624 Vectric Compatible Tool File
The 45624 tool file is part of the Amana Master Tool File to be used with all versions of Vectric software from version 8.0 and up. Works with Aspire, VCarve, Cut2D, Cut3D and PhotoVCarve. This tool file is to be used as a starting point for your CNC projects and the parameters should be adjusted based on your project and material. Installation: 1. Download to a safe location such as your desktop. 2. In the software, open the Tool Database and use the import option to load the file from the safe location.

Vectric File Warning

The Vectric .tool file should only be used in conjunction with the Amana Tool item number specified. Using this file with other brands is dangerous to the operator and CNC machine.

Master Tool File



Speed & Feed Rates
