Solid Carbide V-Groove 90 Deg x 1/4 Diameter x 1/4 x 1/4 Inch Shank Spektra™ Extreme Tool Life Coated Router Bit
Solid Carbide V-Groove 90 Deg x 1/4 Diameter x 1/4 x 1/4 Inch Shank Spektra™ Extreme Tool Life Coated Router Bit
SKU: SKU:45626-K
Order today only 2 left
Couldn't load pickup availability
Click Checkmark for Details
Amana Tool 45626-K Solid Carbide V-Groove 90 Deg x 1/4 Diameter x 1/4 x 1/4 Inch Shank Spektra™ Extreme Tool Life Coated Router Bit
SKU: 45626-K
(D) Diameter: | 1/4" |
---|---|
(a°) Angle: | 90° |
(B) Cutting Height: | 1/4" |
(d) Shank: | 1/4" |
(L) Overall Length: | 1-1/2" |
B1 | 1/8" |
Flutes: | 3 |

- Overview
- Tool Data Downloads
Specially designed for 2D and 3D CNC profiling and carving in plastic & wood with CNC machines. The high-shear ball nose tips cut smooth 2D and 3D contours with reduced stepping while the proprietary Spektra™ coating (applied by the physical vapor deposition coating process) provides high resistance to wear, sharper cutting edges, extended tool life, and less friction and heat buildup. Some of Amana Tool carving tools, as you can appreciate have a very small diameter therefore any material chip-loads need to reflect that small size. It can however withstand RPM’s up to 60,000 RPMs. A directed air-blast to keep chips away along with cooling the tool and workpiece are always welcome.
Excellent for cutting:
- 20lbs High-Density Urethane
- Acrylic
- Composites
- Composite Decking
- Foam
- Laminate
- MDF/HDF
- Melamine
- Plywood
- PVC Plastic
- Sign Board
- Solid Surface
- Veneered Plywood
- Wood
- Xanita® Board

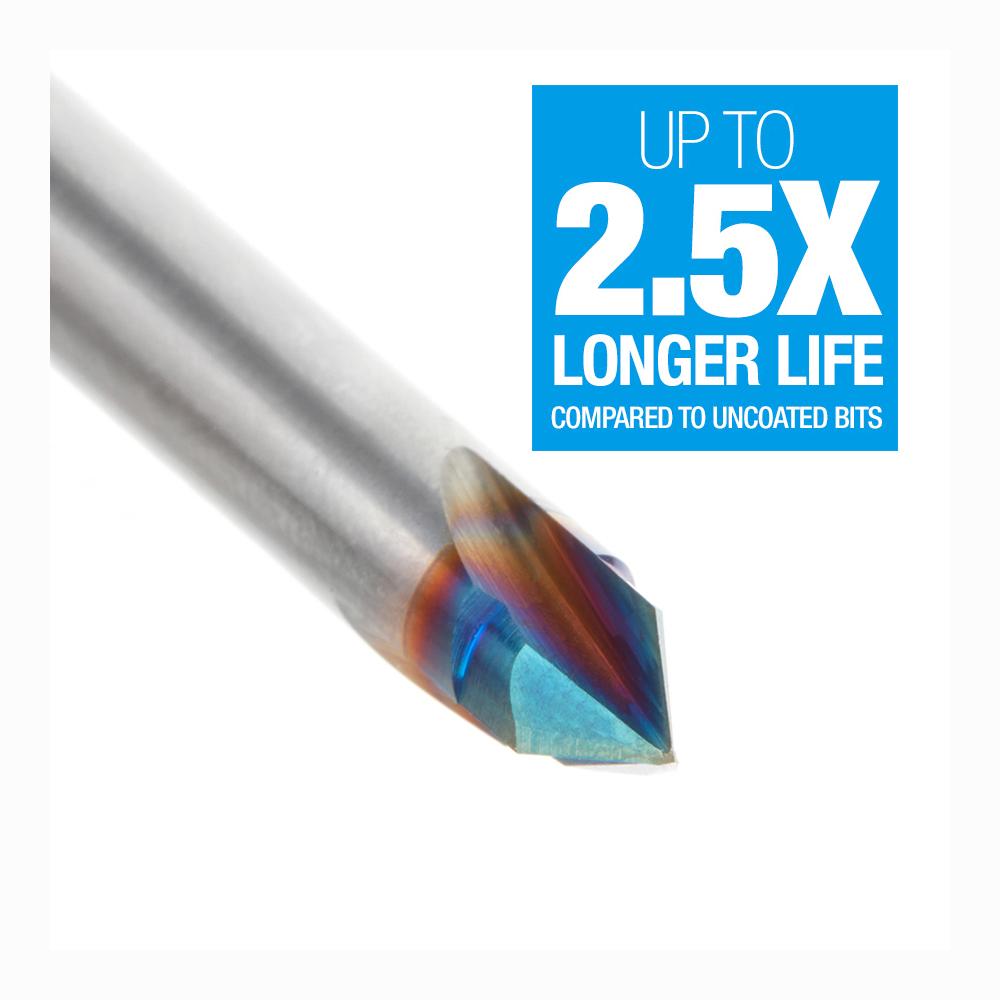

Our Spektra™ bits feature a nACo® nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.
- nACo coating is a micro-thin ceramic coating which enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.
- Coating prevents high heat and oxidation which is detrimental to cutting tool performance.
- Multi-colored hues, while attractive, will dissipate upon use, and yet coating will remain fully effective.
- nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits.
Note: Blue-based color dissipates immediately upon use. nACo® nanocomposite coating will not wear off.
