Amana Tool Carbide Tipped V-Groove 90 Deg x 1/2 Diameter x 1/2 x 1/4 Inch Shank

Amana Tool

Carbide Tipped V-Groove 90 Deg x 1/2 Diameter x 1/2 x 1/4 Inch Shank

SKU: 45704

$40.70

T

Free Shipping

Click Checkmark for Details

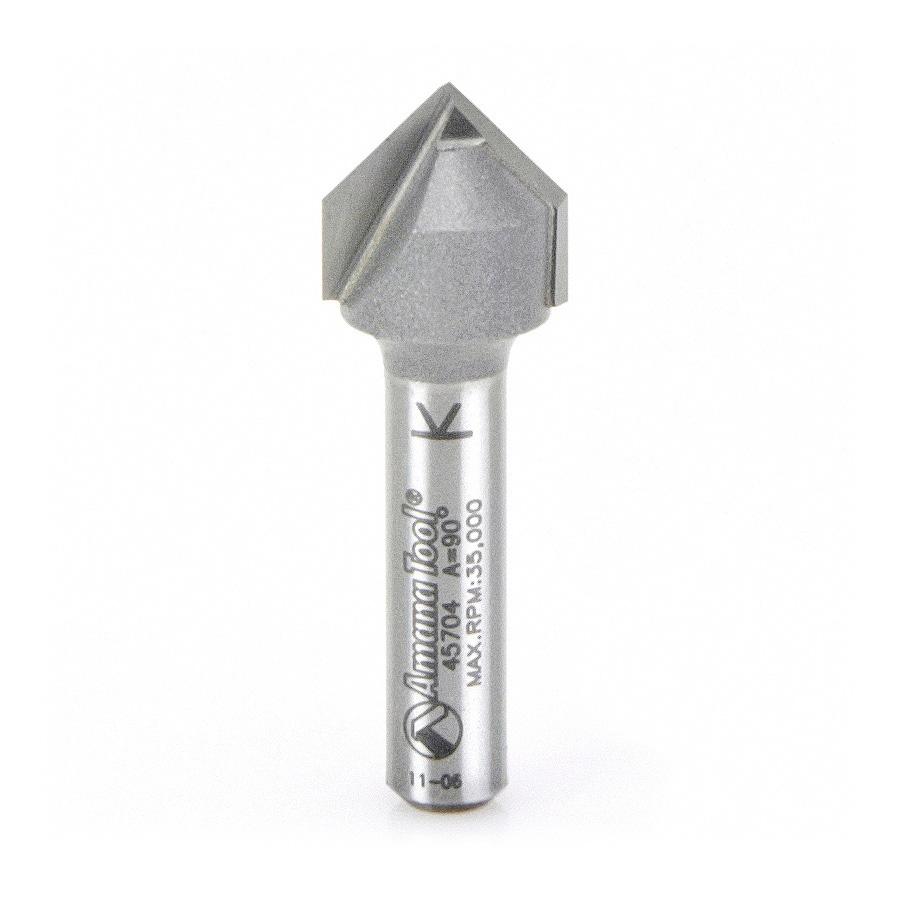

Amana Tool 45704 Carbide Tipped V-Groove 90 Deg x 1/2 Diameter x 1/2 x 1/4 Inch Shank

SKU: 45704

(D) Diameter: 1/2"
Angle (a°) 90°
(B) Cutting Height: 1/2"
(d) Shank: 1/4"
(L) Overall Length: 1-5/8"
Flutes: 2
product icon

Cut decorative V-Grooves and lettering on signs with these V-Groove bits. Use with an edge guide to chamfer and bevel edges. Can be used with handheld, table-mounted, and CNC routers.

  • 20lbs High Density Urethane
  • Acrylic
  • Composites
  • Composite Decking
  • Foam
  • Laminate
  • MDF/HDF
  • Melamine
  • Plywood
  • PVC Plastic
  • Sign Board
  • Solid Surface
  • Veneered Plywood
  • Wood
  • Xanita® Board

Tool #45704 Vectric Compatible Tool File
The 45704 tool file is part of the Amana Master Tool File to be used with all versions of Vectric software from version 8.0 and up. Works with Aspire, VCarve, Cut2D, Cut3D, and PhotoVCarve. This tool file is to be used as a starting point for your CNC projects and the parameters should be adjusted based on your project and material.
Installation:
1. Download to a safe location such as your desktop.
2. In the software, open the Tool Database and use the import option to load the file from the safe location.

Vectric File Warning

The Vectric .tool file should only be used in conjunction with the Amana Tool item number specified. Using this file with other brands is dangerous to the operator and CNC machine.

download icon

Amana Tool Vectric Master File

download icon

Speed & Feed Rates
