Amana Tool
Carbide Tipped Double Edge Folding V-Groove 108 Degree x 0.090 Inch Tip Width x 5/32 x 1/2 Diameter x 1/4 Inch Shank
Carbide Tipped Double Edge Folding V-Groove 108 Degree x 0.090 Inch Tip Width x 5/32 x 1/2 Diameter x 1/4 Inch Shank
SKU: SKU:45795
Order today only 3 left
Couldn't load pickup availability
Click Checkmark for Details

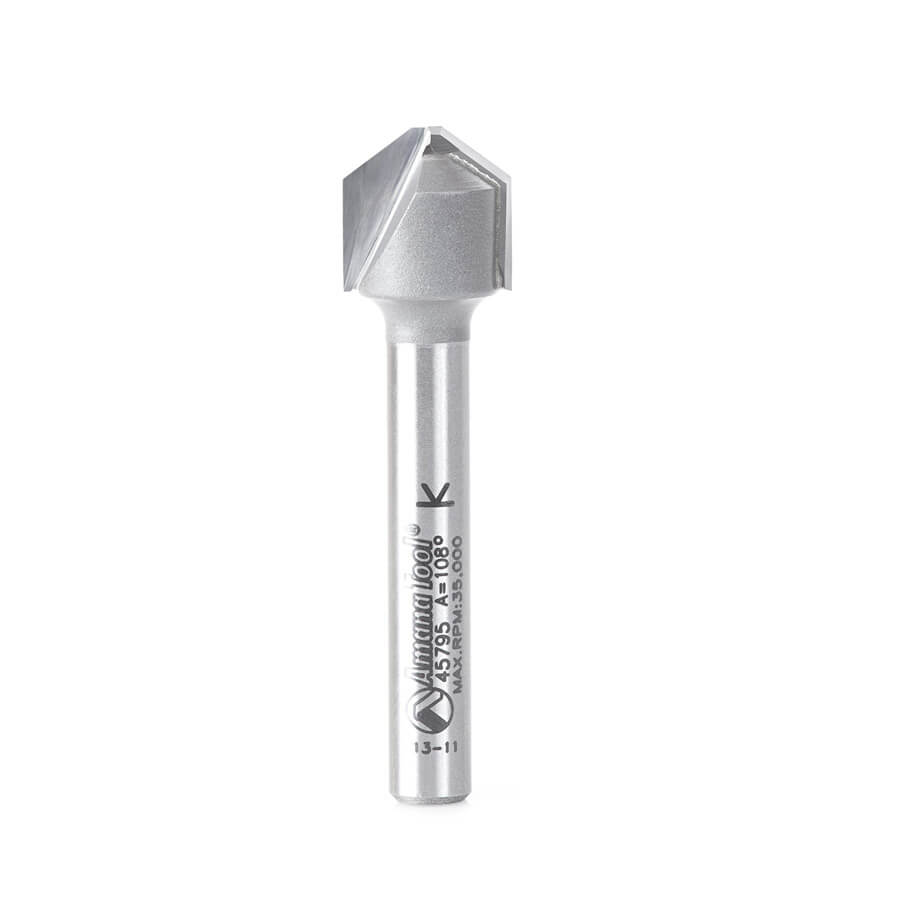

Amana Tool Carbide Tipped Double Edge Folding V-Groove 108 Degree x 0.090 Inch Tip Width x 5/32 x 1/2 Diameter x 1/4 Inch Shank
SKU: 45795
Angle (a°): | 108° |
---|---|
a1°: | 36° |
(D) Diameter: | 1/2" |
D1: | 0.090" |
(B) Cutting Height: | 5/32" |
B1: | 3/8" |
(d) Shank: | 1/4" |
(L) Overall Length: | 2" |
Type: | Carbide Tipped V-Groove |
Maximum RPM: | 35,000 |
Flutes: | 2 |

- Overview
- Tool Data Downloads
Designed for shaping Aluminum Composite (sandwich) Materials (ACM) with 108ª angle V-grooves with flat bottoms. Routing V-shaped grooves, whereby the aluminum cover and a part of the polyethylene core is removed, allows folding/creasing the remaining material by hand. Ideal for wall panel fabrication.
ACM is widely used for cladding many diverse exterior and interior applications such as office buildings, hospitals, convention centers, airports, and hotels. The long lasting durability of the material makes it an excellent choice for buildings, signage, displays, etc.
Designed for cutting and scoring aluminum sandwich materials including:
- Acetate
- Aluminum, Brass, Bronze, Clay, Zinc & Wood Composite Panels
- Aluminum 5052
- Aluminum Composite Materials (ACM)
- Aluminum Composite Panel (ACP)*
- ALPOLIC® Copper Composite Material (CCM)
- Alucobond®
- Alupanel®
- Bakelite
- Dibond®
- Durabond**
- e-panel™
- Etalbond®
- Nylon
- PE and FR Cores
- Phenolics
- Plastic/Acrylic
- Plexiglas®
- PVC
- Thermoplastics
- Titanium Composite Material (TCM)
- Wood
*Aluminum Composite Panel (ACP) is a type of ACM flat panel that consists of two thin aluminum sheets bonded to a non-aluminum core. ACPs are frequently used for external cladding or facades of buildings, insulation, and signage. **Durabond is a polyethylene core with 0.3mm colored aluminum sheet on either side, pre-finished requiring no decoration.
Tool #45795 Vectric Compatible Tool File
The 45795 tool file is part of the Amana Master Tool File to be used with all versions of Vectric software from version 8.0 and up. Works with Aspire, VCarve, Cut2D, Cut3D and PhotoVCarve. This tool file is to be used as a starting point for your CNC projects and the parameters should be adjusted based on your project and material.
Installation:
1. Download to a safe location such as your desktop.
2. In the software, open the Tool Database and use the import option to load the file from the safe location.
Vectric File Warning
The Vectric .tool file should only be used in conjunction with the Amana Tool item number specified. Using this file with other brands is dangerous to the operator and CNC machine.
Master Tool File
Speed & Feed Rates
