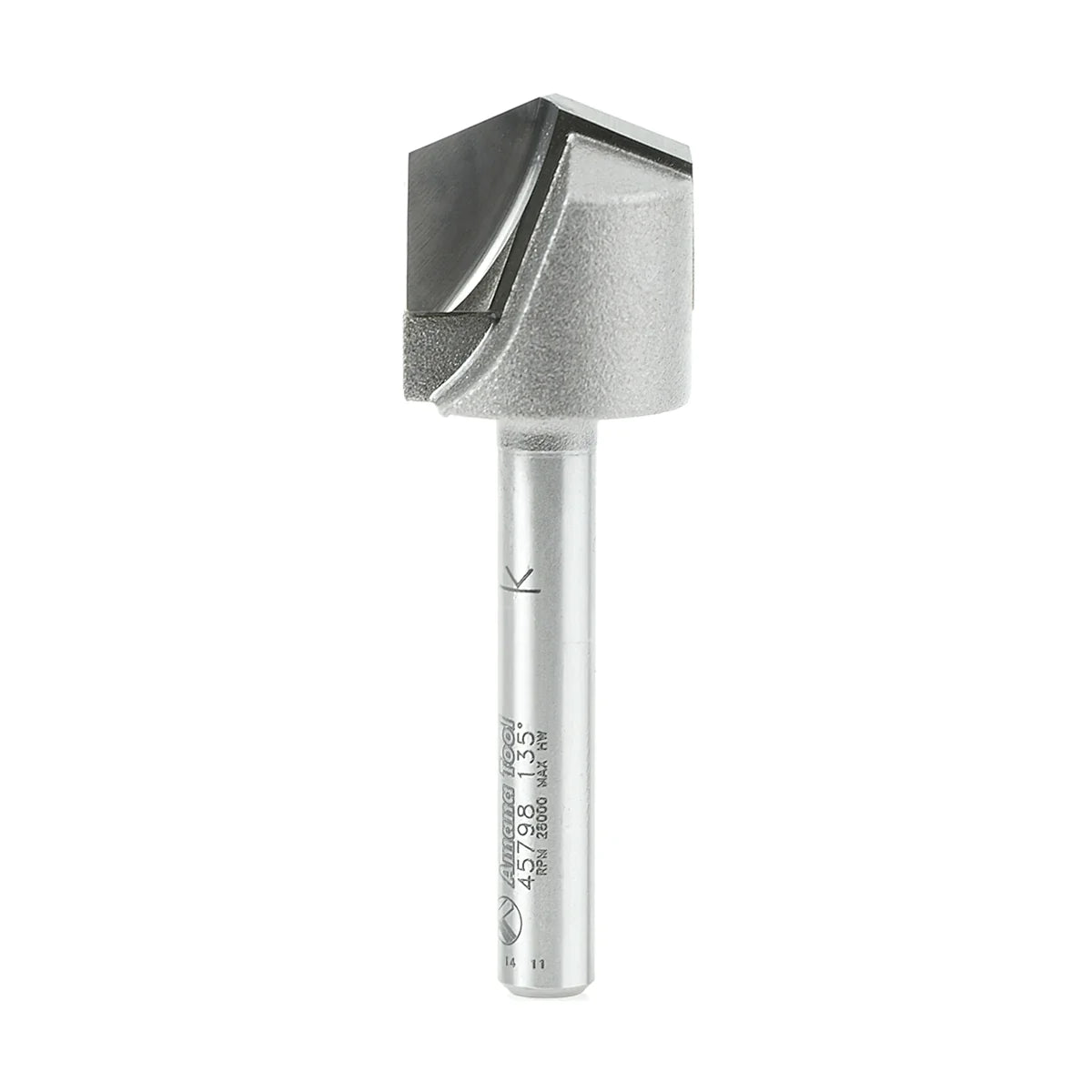

Carbide Tipped Double Edge Folding V-Groove 135 Degree x 0.078 Inch Tip Width x 3/4 Diameter x 9/64 x 1/4 Inch Shank

SKU: 45798

order today only 1 left in stock

Description

Amana Tool Carbide Tipped Double Edge Folding V-Groove 135 Degree x 0.078 Inch Tip Width x 3/4 Diameter x 9/64 x 1/4 Inch Shank

SKU: 45798

Angle (a°):	135°
a1°	22.5°
(D) Diameter:	3/4"
D1	0.078"
(B) Cutting Height:	9/64"
B1:	1/2"
(d) Shank:	1/4"
(L) Overall Length:	2-1/4"
Type:	ZrN Coated V-Groove
Maximum RPM:	28,000
Flutes:	2
a1°:	22.5°

Overview
Tool Data Downloads

Designed for shaping Aluminum Composite (sandwich) Materials (ACM) with 135° angle V-grooves with flat bottoms. Routing V-shaped grooves, whereby the aluminum cover and a part of the polyethylene core is removed, allows folding/creasing the remaining material by hand. Ideal for wall panel fabrication.

ACM is widely used for cladding many diverse exterior and interior applications such as office buildings, hospitals, convention centers, airports, and hotels. The long lasting durability of the material makes it an excellent choice for buildings, signage, displays, etc.

Designed for cutting and scoring aluminum sandwich materials including:

Acetate
Aluminum, Brass, Bronze, Clay, Zinc & Wood Composite Panels
Aluminum 5052
Aluminum Composite Materials (ACM)
Aluminum Composite Panel (ACP)*
ALPOLIC® Copper Composite Material (CCM)
Alucobond®
Alupanel®
Bakelite
Dibond®
Durabond**
e-panel™
Etalbond®
Nylon
PE and FR Cores
Phenolics
Plastic/Acrylic
Plexiglas®
PVC
Thermoplastics
Titanium Composite Material (TCM)
Wood

*Aluminum Composite Panel (ACP) is a type of ACM flat panel that consists of two thin aluminum sheets bonded to a non-aluminum core. ACPs are frequently used for external cladding or facades of buildings, insulation, and signage. **Durabond is a polyethylene core with 0.3mm colored aluminum sheet on either side, pre-finished requiring no decoration.
