Amana Tool
Carbide Up-Cut Spiral 3/16 Diameter x 5/8 x 1/4 Shank x 2-1/2 Inch Long Composite, Fiberglass & Phenolic Cutting ZrN Coated Router Bit
Carbide Up-Cut Spiral 3/16 Diameter x 5/8 x 1/4 Shank x 2-1/2 Inch Long Composite, Fiberglass & Phenolic Cutting ZrN Coated Router Bit
SKU: SKU:46092
Regular price
$52.00
Regular price
Sale price
$52.00
Unit price
per
Order today only 1 left
Free Shipping
Click Checkmark for Details

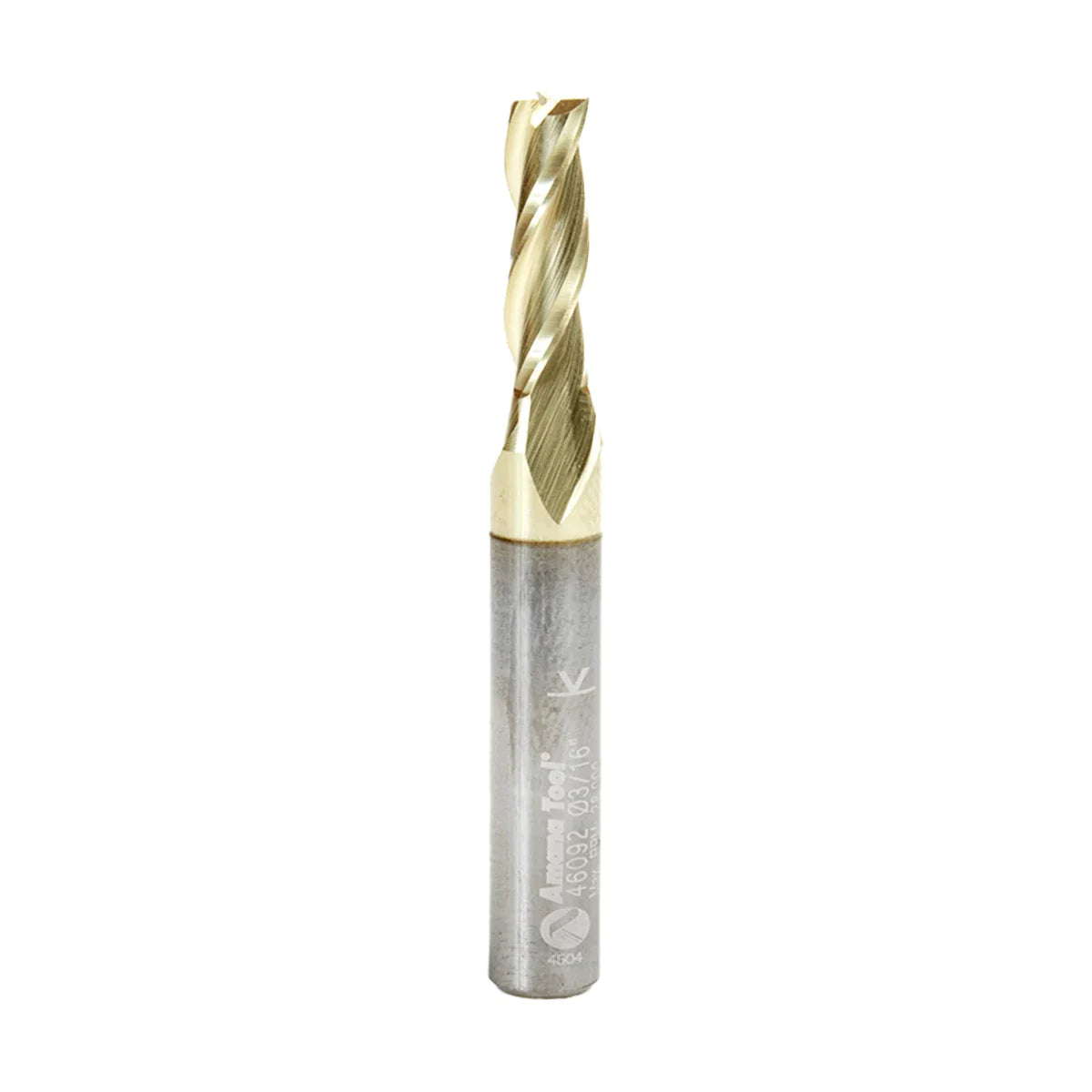

Amana Tool Solid Carbide Up-Cut Spiral 3/16 Diameter x 5/8 x 1/4 Shank x 2-1/2 Inch Long Composite, Fiberglass & Phenolic Cutting ZrN Coated Router Bit
SKU: 46092
| Direction: | Up-Cut |
|---|---|
| (D) Diameter: | 3/16" |
| (B) Cutting Height: | 5/8" |
| (d) Shank: | 1/4" |
| (L) Overall Length: | 2-1/2" |
| Flutes: | 3 |
- Overview
- Tool Data Downloads
Overview
Amana Tool®'s Modern Materials Finishing Geometry (MMFG) incorporates high shear, multi-flute and a ZrN coating designed for the ultimate combination of finish and tool longevity in aerospace materials. Modern-day materials present challenges to the fabricator using these special multi-flute edge tools featuring ZrN ceramic coating addresses these challenges with a winning geometry combination.
Excellent for cutting:
- Plastic
- Acrylic Stone
- Aluminum
- Acrylonitrile-Butadiene-Styrene (ABS)
- Carbon Fiber Reinforced Polymer (CFRP)
- Composite
- Corian
- Coroplast®*
- Fiberglass
- Fiberglass PCB Board
- HDPE
- High Impact Polystyrene (HIPS)
- Low Density Polyethylene (LDPE)
- Phenolics
- Poly (methyl methacrylate) (PMMA)
- Polycarbonate (Lexan™)†
- Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
- Thermoplastic Polyolefin (TPO)
*A soft plastic cardboard made with super soft super flexible PVC.
†Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan™.
Benefits of ZrN Coating
- Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
- High resistance to wear
- Extended tool life
- Less friction & heat buildup
- High resistance to wear
Tool Data Downloads
Speed & Feed Rates
