Amana Tool Solid Carbide Up-Cut Spiral 1/4 Diameter x 3/4 x 1/4 Shank x 2-1/2 Inch Long Composite, Fiberglass & Phenolic Cutting Spektra™ Extreme Tool Life Coated Router Bit

Amana Tool

Solid Carbide Up-Cut Spiral 1/4 Diameter x 3/4 x 1/4 Shank x 2-1/2 Inch Long Composite, Fiberglass & Phenolic Cutting Spektra™ Extreme Tool Life Coated Router Bit

SKU: 46094-K

order today only 4 left in stock
$50.59

T

Free Shipping

Click Checkmark for Details


Amana Tool 46094-K Solid Carbide Up-Cut Spiral 1/4 Diameter x 3/4 x 1/4 Shank x 2-1/2 Inch Long Composite, Fiberglass & Phenolic Cutting Spektra™ Extreme Tool Life Coated Router Bit

SKU: 46094-K

Direction: Up-Cut
(D) Diameter: 1/4"
(B) Cutting Height: 3/4"
(d) Shank: 1/4"
(L) Overall Length: 2-1/2"
Flutes: 3
product icon

Amana Tool®'s Modern Materials Finishing Geometry (MMFG) incorporates high shear multi-flute and a Spektra™ coating designed for the ultimate combination of finish and tool longevity in aerospace materials. Modern-day materials present challenges to the fabricator using these special multi-flute edge tools featuring Spektra™ coating addresses these challenges with a winning geometry combination.

Excellent for cutting:

  • Plastic
  • Acrylic Stone
  • Aluminum
  • Acrylonitrile-Butadiene-Styrene (ABS)
  • Carbon Fiber Reinforced Polymer (CFRP)
  • Composite
  • Corian
  • Coroplast® *
  • Fiberglass
  • Fiberglass PCB Board
  • HDPE
  • High Impact Polystyrene (HIPS)
  • Low-Density Polyethylen (LDPE)
  • Phenolics
  • Poly (methyl methacrylate) (PMMA)
  • Polycarbonate (Lexan™)
  • Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
  • Thermoplastic Polyolefin (TPO)

*A soft plastic cardboard made with super soft super flexible PVC.

Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan™.

Our Spektra™ bits feature a nACo® nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.

  • nACo coating is a micro-thin ceramic coating which enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.
  • Coating prevents high heat and oxidation which is detrimental to cutting tool performance.
  • Multi-colored hues, while attractive, will dissipate upon use, and yet coating will remain fully effective.

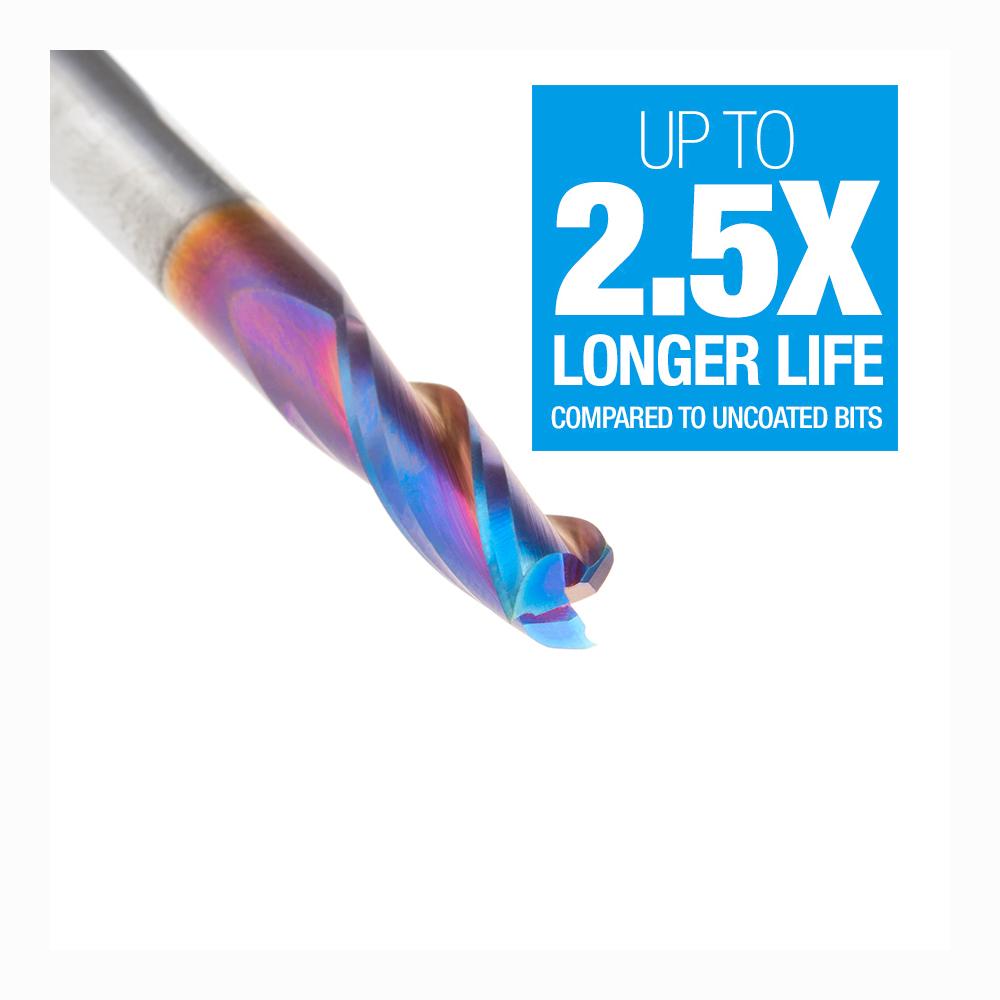

  • nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits.

Note: Blue-based color dissipates immediately upon use. nACo® nanocomposite coating will not wear off.

Set #AMS-CNC-60 Vectric Compatible Tool File
AMS-CNC-60 tool file to be used with all versions of Vectric software from version 8.0 and up. Works with Aspire, VCarve, Cut2D, Cut3D, and PhotoVCarve. This tool file is to be used as a starting point for your CNC projects and the parameters should be adjusted based on your project and material.
Installation:
1. Download to a safe location such as your desktop.
2. In the software, open the Tool Database and use the import option to load the file from the safe location.

Vectric File Warning

The Vectric .tool file should only be used in conjunction with the Amana Tool item number specified. Using this file with other brands is dangerous to the operator and CNC machine.

download icon

Speed & Feed Rates
