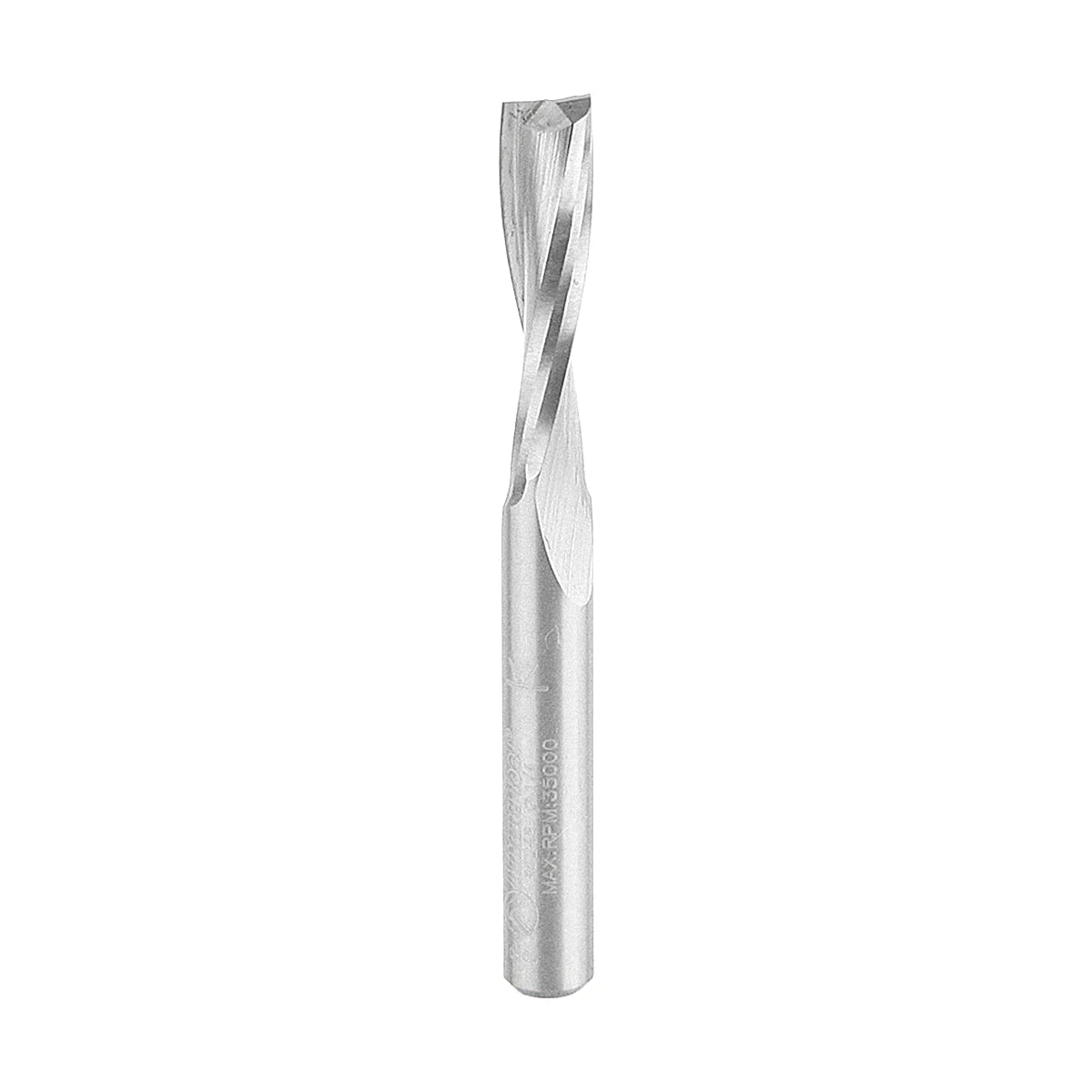

Amana Tool 46248 Solid Carbide Spiral Plunge for Solid Wood 1/4 Diameter x 1 Inch x 1/4 Shank Up-Cut
New Addition

Amana Tool

Solid Carbide Spiral Plunge for Solid Wood 1/4 Diameter x 1 Inch x 1/4 Shank Up-Cut

SKU: 46248

order today only 2 left in stock
$46.91

T

Free Shipping

Click Checkmark for Details


Amana Tool Solid Carbide Spiral Plunge for Solid Wood 1/4 Diameter x 1 Inch x 1/4 Shank Up-Cut

SKU: 46248

Direction: Up-Cut
(D) Diameter: 1/4"
(B) Cutting Height: 1"
(d) Shank: 1/4"
(L) Overall Length: 2-1/2"
Flutes: 2
product icon

Specially designed for speed and finish when working with solid hardwood. The combination of acute spiral flute shear angles with face ground helix yield high feed rates, fast plunge action, quick direction changes, deep penetration and mirror finish. Recommended RPM 20,000-21,000.

Tool #46248 Vectric Compatible Tool File
The 46428 tool file is part of the Amana Master Tool File to be used with all versions of Vectric software from version 8.0 and up. Works with Aspire, VCarve, Cut2D, Cut3D and PhotoVCarve. This tool file is to be used as a starting point for your CNC projects and the parameters should be adjusted based on your project and material.
Installation:
1. Download to a safe location such as your desktop.
2. In the software, open the Tool Database and use the import option to load the file from the safe location.

Vectric File Warning

The Vectric .tool file should only be used in conjunction with the Amana Tool item number specified. Using this file with other brands is dangerous to the operator and CNC machine.

icon

Master Tool File



icon

Speed & Feed Rates
