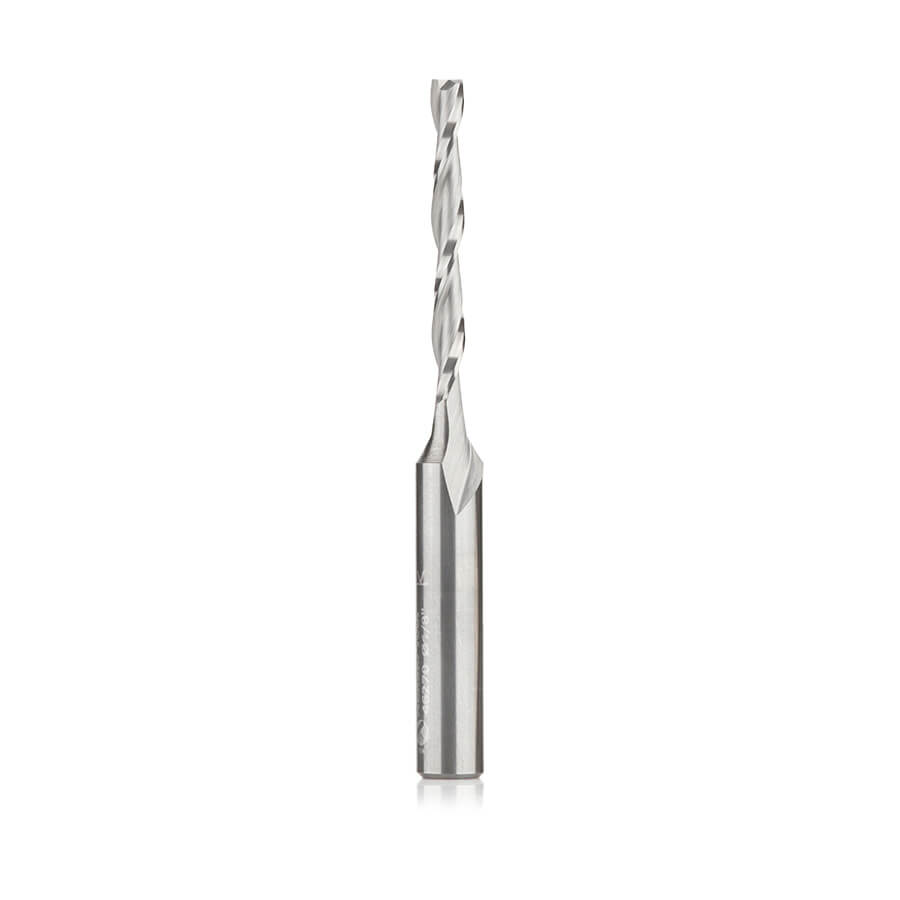

Amana Tool 46270 Solid Carbide CNC Foam Cutting Up-Cut Square End Spiral 1/8 Diameter x 1-1/8 x 1/4 Shank x 2-1/2 Inch Long Router Bit

Amana Tool

Solid Carbide CNC Foam Cutting Up-Cut Square End Spiral 1/8 Diameter x 1-1/8 x 1/4 Shank x 2-1/2 Inch Long Router Bit

SKU: 46270

order today only 2 left in stock
$71.02

T

Free Shipping

Click Checkmark for Details


Amana Tool Solid Carbide CNC Foam Cutting Up-Cut Square End Spiral 1/8 Diameter x 1-1/8 x 1/4 Shank x 2-1/2 Inch Long Router Bit

SKU: 46270

Direction: Up-Cut
(D) Diameter: 1/8"
(B) Cutting Height: 1-1/8"
(d) Shank: 1/4"
(L) Overall Length: 2-1/2"
Type: Square End
Flutes: 2
product icon

Ensure your foam projects are milled with unparalleled accuracy detail and clarity. Achieve both precision and depth for foam carving and milling applications. Provides deeper cuts and larger slices with fewer passes in thick materials resulting in improved productivity and less assembly. The up-cut spiral ejects chips away from the workpiece.

Specifically designed for milling:

  • Crosslinked Polyethylene Foam (XLPE)
  • Ethafoam**
  • Ethylene-vinyl Acetate Foam (EVA)
  • Expanded Polypropylene (EPP)*
  • Expanded Polystyrene (EPS)
  • Extruded Polystyrene Foam (XPS)
  • Flexible Polyurethane Foam (FPF)
  • Fomex®
  • High Density Urethane (HUD Board)
  • PALFOAM™
  • Polycarbonate (Lexan™)
  • Polyethylene Foam**
  • Polylam**
  • Polyurethane Foam

*Expanded polypropylene (EPP) is a foam form of polypropylene.

**Ethafoam Polyethylene and Polylam are durable flexible closed-cell foams with excellent memory.

Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan™.

For thick material with up-cut chip removal. For 2D & 3D CNC routing applications.

Tool #46270 Vectric Compatible Tool File
The 46270 tool file is part of the Amana Master Tool File to be used with all versions of Vectric software from version 8.0 and up. Works with Aspire, VCarve, Cut2D, Cut3D and PhotoVCarve. This tool file is to be used as a starting point for your CNC projects and the parameters should be adjusted based on your project and material. Installation: 1. Download to a safe location such as your desktop. 2. In the software, open the Tool Database and use the import option to load the file from the safe location.

Vectric File Warning

The Vectric .tool file should only be used in conjunction with the Amana Tool item number specified. Using this file with other brands is dangerous to the operator and CNC machine.

Master Tool File

Speed & Feed Rates
