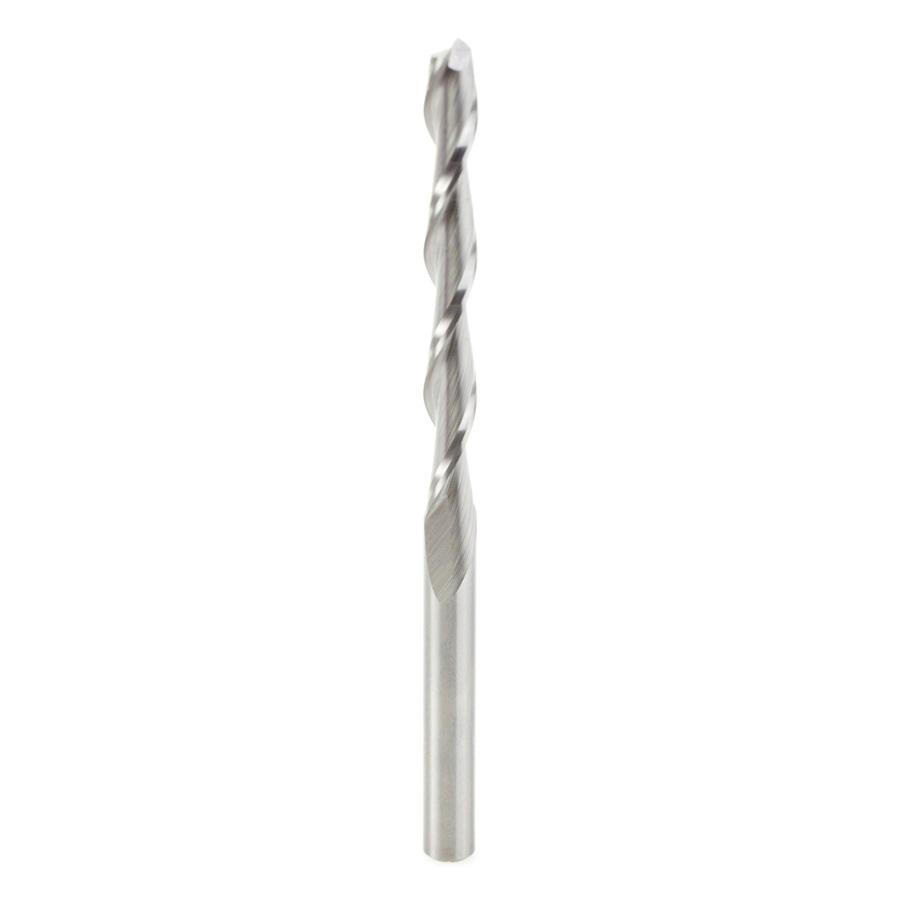

Solid Carbide CNC Foam Up-Cut Cutting Square End Spiral 1/4 Dia x 2-1/4 x 1/4 Shank x 2-1/2 Inch Long Router Bit
Solid Carbide CNC Foam Up-Cut Cutting Square End Spiral 1/4 Dia x 2-1/4 x 1/4 Shank x 2-1/2 Inch Long Router Bit
SKU: SKU:46272
Order today only 3 left
Couldn't load pickup availability
Click Checkmark for Details
Amana Tool 46272 Solid Carbide CNC Foam Up-Cut Cutting Square End Spiral 1/4 Dia x 2-1/4 x 1/4 Shank x 2-1/2 Inch Long Router Bit
SKU: 46272
| Direction: | Up-Cut |
|---|---|
| (D) Diameter: | 1/4" |
| (B) Cutting Height: | 2-1/4" |
| (d) Shank: | 1/4" |
| (L) Overall Length: | 4" |
| Flutes: | 2 |
- Overview
- Tool Data Downloads
Ensure your foam projects are milled with unparalleled accuracy detail and clarity. Achieve both precision and depth for foam carving and milling applications. Provides deeper cuts and larger slices with fewer passes in thick materials resulting in improved productivity and less assembly. The up-cut spiral ejects chips away from the workpiece.
Specifically designed for milling:
- Crosslinked Polyethylene Foam (XLPE)
- Ethafoam**
- Ethylene-vinyl Acetate Foam (EVA)
- Expanded Polypropylene (EPP)*
- Expanded Polystyrene (EPS)
- Extruded Polystyrene Foam (XPS)
- Flexible Polyurethane Foam (FPF)
- Fomex®
- High-Density-Urethane (HUD Board)
- PALFOAM™
- Polycarbonate (Lexan™)†
- Polyethylene Foam**
- Polylam**
- Polyurethane Foam
*Expanded polypropylene (EPP) is a foam form of polypropylene.
**Ethafoam Polyethylene and Polylam are durable flexible closed-cell foams with excellent memory.
†Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan™.
For thick material with up-cut chip removal. For 2D & 3D CNC routing applications.
