Amana Tool
CNC Solid Carbide ZrN Coated Honeycomb Cutting Hogger 1/4 Diameter x 1-1/4 x 1/4 Shank x 4 Inch Long x 6-Flute
CNC Solid Carbide ZrN Coated Honeycomb Cutting Hogger 1/4 Diameter x 1-1/4 x 1/4 Shank x 4 Inch Long x 6-Flute
SKU: SKU:46306
Order today only 2 left
Couldn't load pickup availability
Click Checkmark for Details

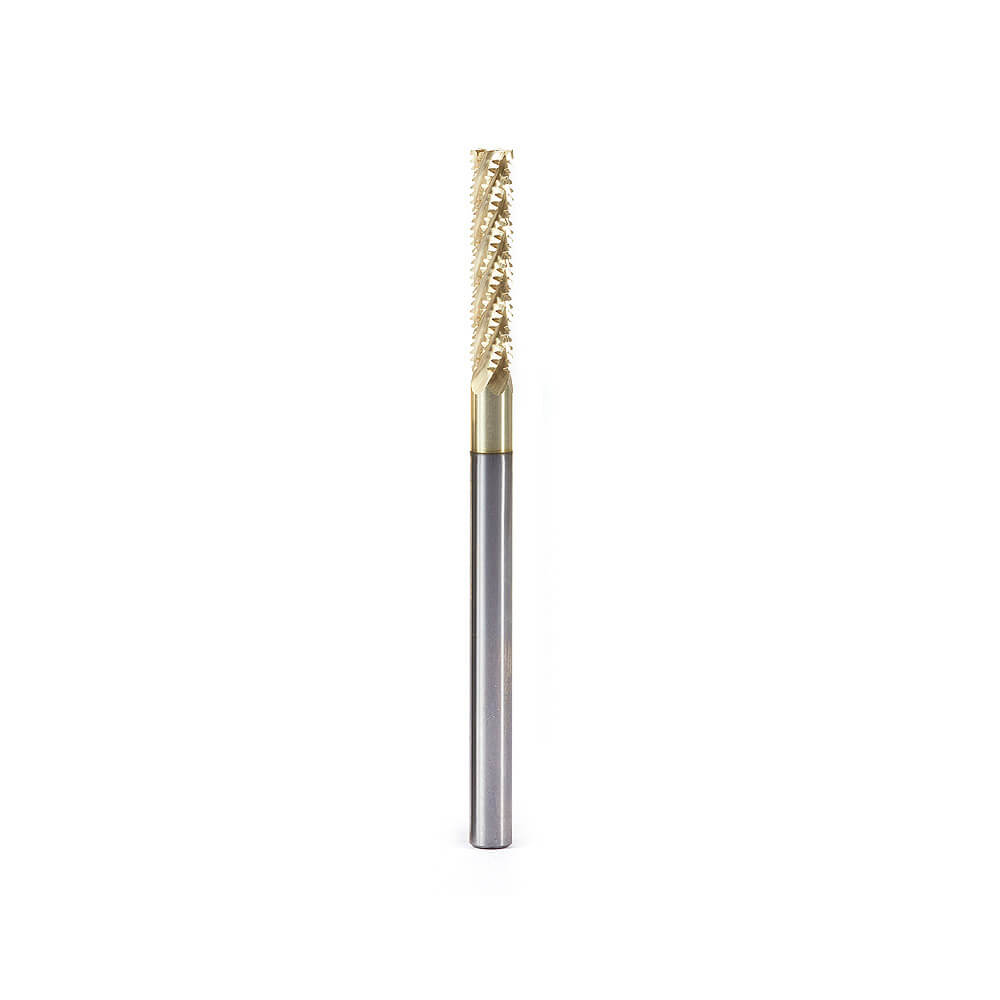

Amana Tool CNC Solid Carbide ZrN Coated Honeycomb Cutting Hogger 1/4 Diameter x 1-1/4 x 1/4 Shank x 4 Inch Long x 6-Flute
SKU: 46306
(D) Diameter: | 1/4" |
---|---|
(B) Cutting Height: | 1-1/4" |
B1: | 1/8" |
(d) Shank: | 1/4" |
(L) Overall Length: | 4" |
Maximum RPM: | 25,000 |
Flutes: | 6 |

- Overview
- Tool Data Downloads
Designed to cut a large variety of honeycomb materials, hogger geometry is excellent for shredding and chip evacuation while maintaining a smooth surface.
Amana Tool's "hogger" style routers for honeycomb composites incorporate a precision-ground "knuckle" profile, allowing a freer-cutting action that reduces power requirements and less sidewall pressure in low output spindles while giving impressive gains in feed-rates. ZrN coating greatly enhances durability in highly abrasive composites.
Excellent for cutting:
- Honeycomb
- Composite Materials
- Acrylonitrile-Butadiene-Styrene (ABS)
- Lexan™
- Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
- High resistance to wear
- Extended tool life
- Less friction & heat buildup
- High resistance to wear
Please note: For optimal results and to extend tool life please use mist lubricant system or air cooling. Please inspect cut and adjust accordingly.
Tool #46306 Vectric Compatible Tool File
The 46306 tool file is part of the Amana Master Tool File to be used with all versions of Vectric software from version 8.0 and up. Works with Aspire, VCarve, Cut2D, Cut3D and PhotoVCarve. This tool file is to be used as a starting point for your CNC projects and the parameters should be adjusted based on your project and material.
Installation:
1. Download to a safe location such as your desktop.
2. In the software, open the Tool Database and use the import option to load the file from the safe location.
Vectric File Warning
The Vectric .tool file should only be used in conjunction with the Amana Tool item number specified. Using this file with other brands is dangerous to the operator and CNC machine.
Master Tool File
Speed & Feed Rates
