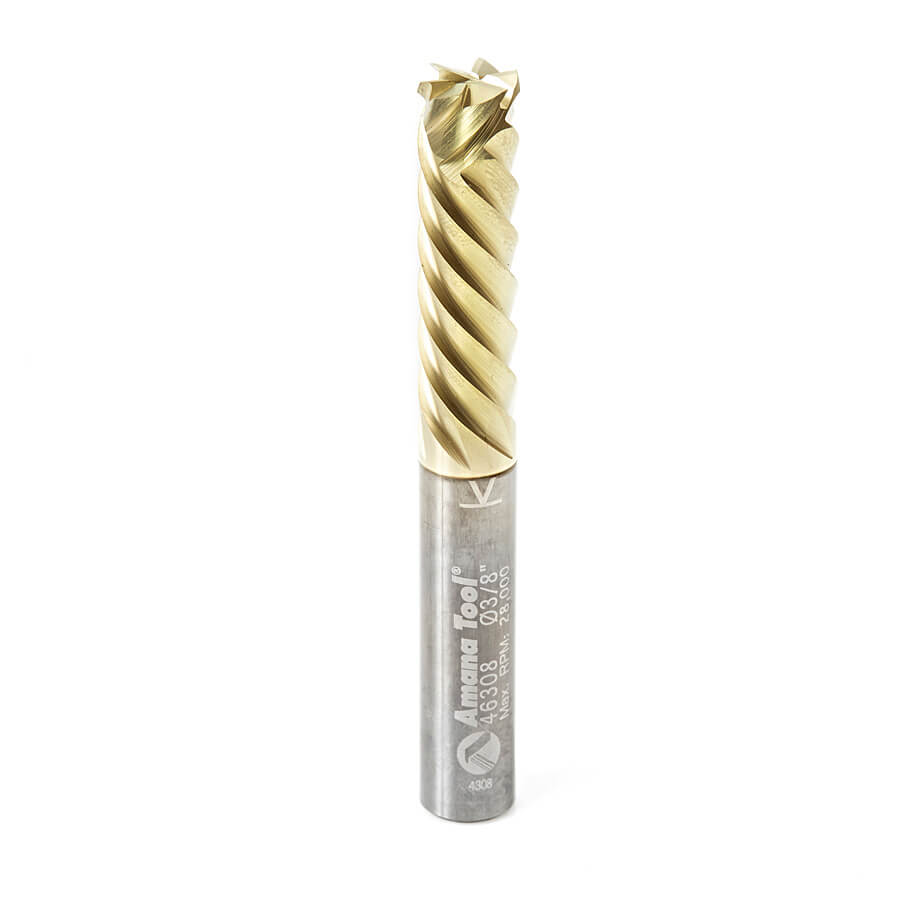

Amana Tool 46308 CNC Compression Solid Carbide ZrN Coated Honeycomb Cutting 3/8 Diameter x 1-1/4 x 3/8 Shank x 6-Flute

Amana Tool

CNC Compression Solid Carbide ZrN Coated Honeycomb Cutting 3/8 Diameter x 1-1/4 x 3/8 Shank x 6-Flute

SKU: 46308

order today only 2 left in stock
$109.45

T

Free Shipping

Click Checkmark for Details

Amana Tool CNC Compression Solid Carbide ZrN Coated Honeycomb Cutting 3/8 Diameter x 1-1/4 x 3/8 Shank x 6-Flute

SKU: 46308

(D) Diameter: 3/8"
(B) Cutting Height: 1-1/4"
B1: 1/4"
(d) Shank: 3/8"
(L) Overall Length: 3"
Maximum RPM: 28,000
Flutes: 6
product icon

Solid carbide honeycomb cutting router bits provide a burr-free top and bottom finish, providing that the workpiece is thicker than 0.250”. Designed for cutting Bioboard™, Falconboard®, Aluminum Honeycomb (AHP) carbon fiber and honeycomb cardboard.

Excellent for Cutting:

  • Acrylonitrile-Butadiene-Styrene (ABS)
  • Aluminum Honeycomb Panel (AHP)
  • BioBoard™
  • Carbon
  • Carbon Fiber
  • Carbon Graphite
  • Composites
  • Falconboard®
  • Fiberglass Filled Plastics
  • Honeycomb Cardboard
  • Lexan™
  • Unfilled Plastics

Benefits of ZrN Coating:

  • Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
  • High resistance to wear
  • Extended tool life
  • Less friction & heat buildup
  • High resistance to wear

Please note: For optimal results and to extend tool life please use mist lubricant system or air cooling. Please inspect cut and adjust accordingly.

Tool #46308 Vectric Compatible Tool File
The 46308 tool file is part of the Amana Master Tool File to be used with all versions of Vectric software from version 8.0 and up. Works with Aspire, VCarve, Cut2D, Cut3D and PhotoVCarve. This tool file is to be used as a starting point for your CNC projects and the parameters should be adjusted based on your project and material. Installation: 1. Download to a safe location such as your desktop. 2. In the software, open the Tool Database and use the import option to load the file from the safe location.

Vectric File Warning

The Vectric .tool file should only be used in conjunction with the Amana Tool item number specified. Using this file with other brands is dangerous to the operator and CNC machine.

Master Tool File

Speed & Feed Rates
