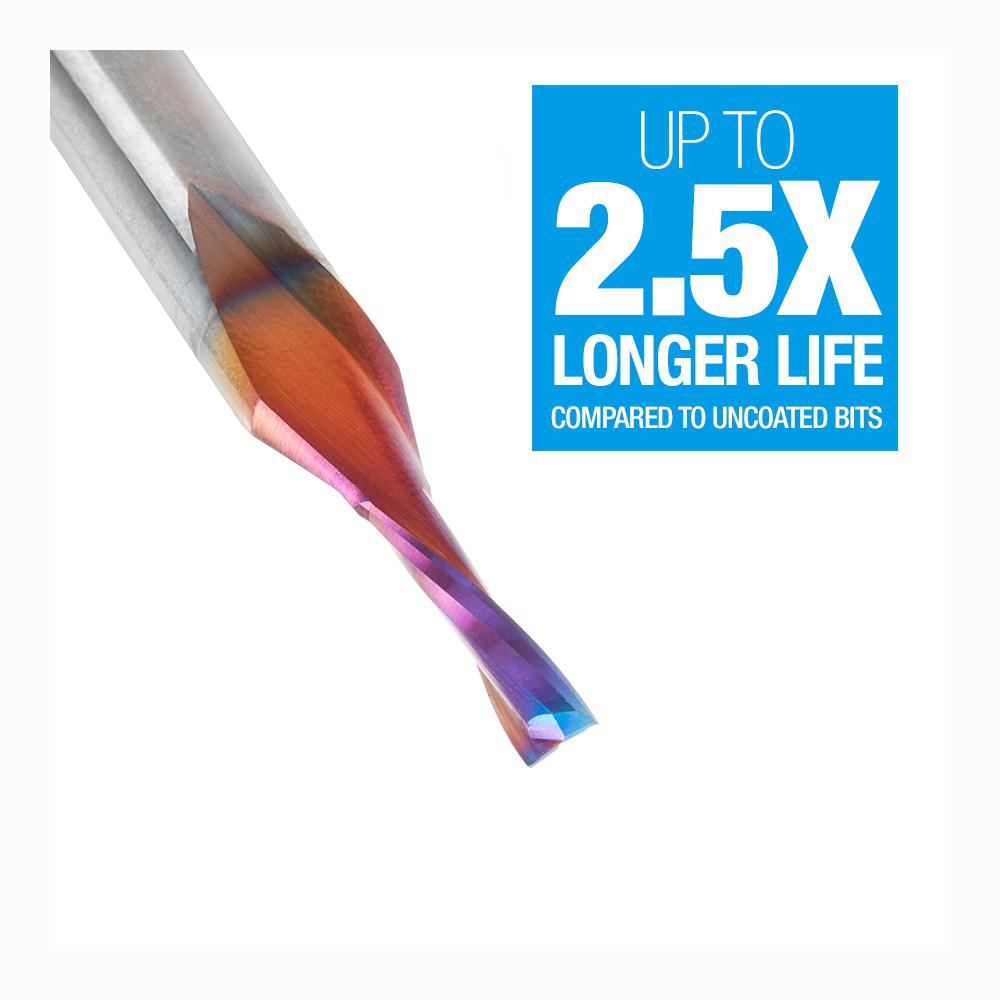

Amana Tool Solid Carbide Spektra™ Extreme Tool Life Coated Spiral Plunge for Solid Wood 1/8 Diameter x 1/2 x 1/4 Inch Shank Down-Cut

Amana Tool

Solid Carbide Spektra™ Extreme Tool Life Coated Spiral Plunge for Solid Wood 1/8 Diameter x 1/2 x 1/4 Inch Shank Down-Cut

SKU: 46341-K

order today only 2 left in stock
$42.41

T

Free Shipping

Click Checkmark for Details


Amana Tool 46341-K Solid Carbide Spektra™ Extreme Tool Life Coated Spiral Plunge for Solid Wood 1/8 Diameter x 1/2 x 1/4 Inch Shank Down-Cut

SKU: 46341-K

Direction: Down-Cut
(D) Diameter: 1/8"
(B) Cutting Height: 1/2"
(d) Shank: 1/4"
(L) Overall Length: 2"
Flutes: 2
product icon

Specially designed for speed and finish when working with solid hardwood. The combination of acute spiral flute shear angles with face ground helix yield high feed rates, fast plunge action, quick direction changes, deep penetration, and mirror finish.

Our Spektra™ bits feature a nACo® nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.

  • nACo coating is a micro-thin ceramic coating which enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.
  • Coating prevents high heat and oxidation which is detrimental to cutting tool performance.
  • Multi-colored hues, while attractive, will dissipate upon use, and yet coating will remain fully effective.
  • nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits.

Note: Blue-based color dissipates immediately upon use. nACo® nanocomposite coating will not wear off.

Recommended RPM 20,000-21,000.

    Tool #46341-K Vectric Compatible Tool File
    46341-K tool file to be used with all versions of Vectric software from version 8.0 and up. Works with Aspire, VCarve, Cut2D, Cut3D, and, PhotoVCarve. This tool file is to be used as a starting point for your CNC projects and the parameters should be adjusted based on your project and material.
    Installation:
    1. Download to a safe location such as your desktop.
    2. In the software, open the Tool Database and use the import option to load the file from the safe location.

    Vectric File Warning

    The Vectric .tool file should only be used in conjunction with the Amana Tool item number specified. Using this file with other brands is dangerous to the operator and CNC machine.

    download icon

    46341-K Tool File

    download icon

    Speed & Feed Rates
