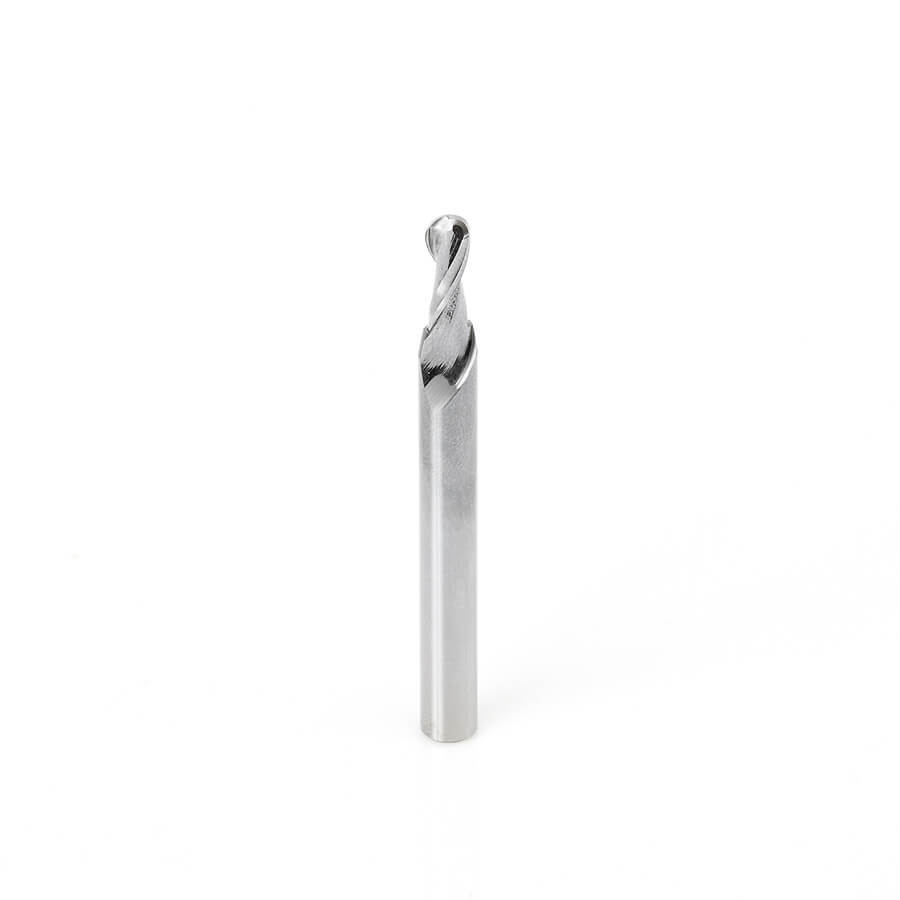

Amana Tool 46424 Solid Carbide Up-Cut Spiral Ball Nose 3/32 Radius x 3/16 Diameter x 1/2 x 1/4 Shank x 2-1/2 Inch Long x 2 Flute Router Bit

Amana Tool

Solid Carbide Up-Cut Spiral Ball Nose 3/32 Radius x 3/16 Diameter x 1/2 x 1/4 Shank x 2-1/2 Inch Long x 2 Flute Router Bit

SKU: 46424

order today only 2 left in stock
$62.00

T

Free Shipping

Click Checkmark for Details


Amana Tool Solid Carbide Up-Cut Spiral Ball Nose 3/32 Radius x 3/16 Diameter x 1/2 x 1/4 Shank x 2-1/2 Inch Long x 2 Flute Router Bit

SKU: 46424

(D) Diameter: 3/16"
(R) Radius: 3/32"
(B) Cutting Height: 1/2"
(d) Shank: 1/4"
(L) Overall Length: 2-1/2"
Flutes: 2
product icon

Amana Tool's high mirror-finish solid carbide up-cut spiral ball nose router bits are designed to eliminate tool marks that commonly appear when used with plastic and solid surface materials. Due to the highly polished finish and unique tool geometry, the spiral ball nose router bit delivers superior surface finish of at least 28 Ra (roughness average) in various materials. The up-cut router bits also eject chips up, to help prevent chip out on the bottom of the material.

Constructed of special grade solid carbide, the Amana Tool spiral ball nose router bits last longer than traditional router bits and deliver superior cutting performance with plastics. The bits are ideal for use in a variety of applications spanning the mechanical, medical and woodworking industries.

Excellent for Cutting:

  • Plastic
  • Acrylic
  • Acrylic Stone
  • Acrylonitrile Butadiene Styrene (ABS)
  • Aluminum
  • Corian
  • Coroplast®*
  • Fomex®
  • High Impact Polystyrene (HIPS)
  • High Pressure Laminates (HPL)
  • Hydroxy-Terminated Polyether (HTPE)
  • Low Density Polyethylene (LDPE)
  • LubX®
  • Non-Ferrous Materials
  • Perspex® Cast Acrylic Sheet
  • Plexiglas®
  • Poly (methyl methacrylate) (PMMA)
  • Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
  • Polyoxymethylene (POM), also known as Acetal, Polyacetal and Polyformaldehyde.
  • Sign Foam
  • Solid Surface
  • StarBoard® (King StarBoard 'R') High Density Polyethylene Sheet (HDPE)
  • Thermoplastic Polyolefin (TPO)
  • Urethane
  • Wood

*A soft plastic cardboard made with super soft super flexible PVC.

Tool #46424 Vectric Compatible Tool File
The 46424 tool file is part of the Amana Master Tool File to be used with all versions of Vectric software from version 8.0 and up. Works with Aspire, VCarve, Cut2D, Cut3D and PhotoVCarve. This tool file is to be used as a starting point for your CNC projects and the parameters should be adjusted based on your project and material. Installation: 1. Download to a safe location such as your desktop. 2. In the software, open the Tool Database and use the import option to load the file from the safe location.

Vectric File Warning

The Vectric .tool file should only be used in conjunction with the Amana Tool item number specified. Using this file with other brands is dangerous to the operator and CNC machine.

Master Tool File



Speed & Feed Rates
