Amana Tool

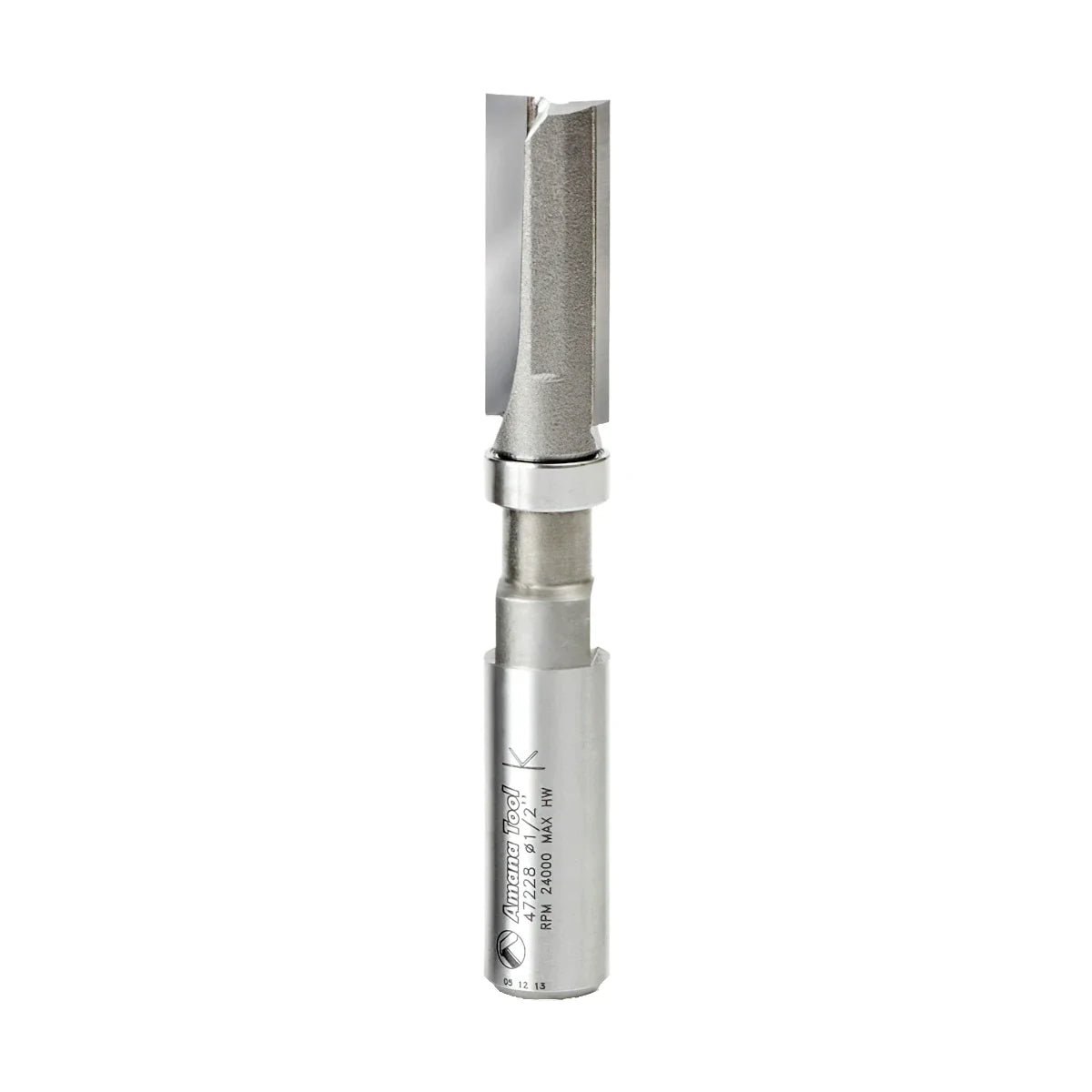

Carbide Tipped Flush Trim Plunge Template 1/2 Diameter x 1-1/4 x 1/2 Inch Shank w/ Upper Ball Bearing Router Bit

SKU: 47228

order today only 2 left in stock

Description

Amana Tool Carbide Tipped Flush Trim Plunge Template 1/2 Diameter x 1-1/4 x 1/2 Inch Shank w/ Upper Ball Bearing Router Bit

SKU: 47228

(D) Diameter:	1/2"
(B) Cutting Height:	1-1/4""
(d) Shank:	1/2"
(L) Overall Length:	3-1/2"
Replacement Bearing:	47701
Flutes:	2

Overview

This bit is essentially a plunge-cutting straight with a shank mounted ball-bearing pilot. It is a versatile bit, useful for template/pattern routing of parts, joints, and internal cuts. It can be used in handheld and table-mounted routers.

The template is attached to the workpiece, and the pilot bearing rides along its edge as the cutting edges rout the workpiece, forming an exact duplicate of the template. With a handheld router, the pattern is on top of the work; with a table-mounted router, the pattern is underneath the work.
