Amana Tool

Carbide Tipped Corner Round 1/16 Radius x 5/8 Diameter x 5/16 x 1/4 Inch Shank

SKU: 49492

order today only 2 left in stock

Description

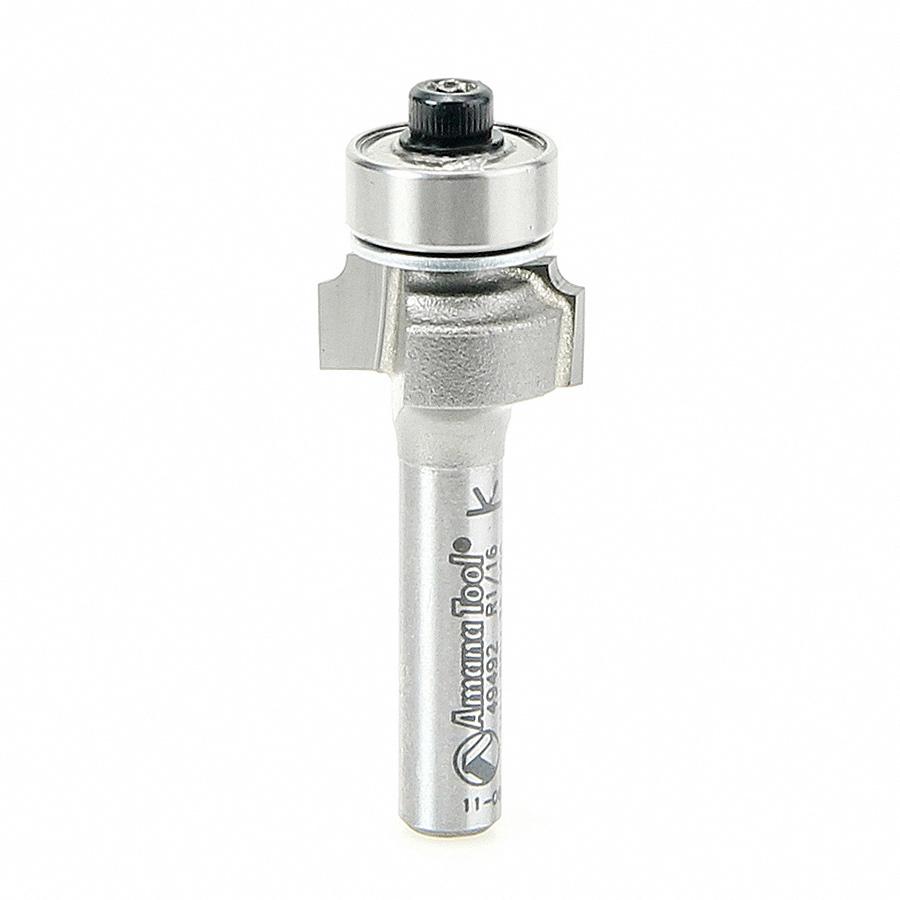

Amana Tool Carbide Tipped Corner Round 1/16 Radius x 5/8 Diameter x 5/16 x 1/4 Inch Shank

SKU: 49492

(D) Diameter:	5/8"
Radius:	1/16"
(B) Cutting Height:	5/16"
(d) Shank:	1/4"
(L) Overall Length:	1-3/4"
Replacement Bearing:	47706
Flutes:	2
D1	1/2"

Overview

The basic edge-forming bit, the corner-rounding bit rounds an edge to a given radius. The tool is shouldered to cut a fillet. The cut can be used to ease edges, as a simple profile, or as a part of a complex one. Also known as roundover, rounding over, and quarter-round. If a smaller pilot bearing is used, a second shoulder can be produced, in effect making the bit a beading bit.
