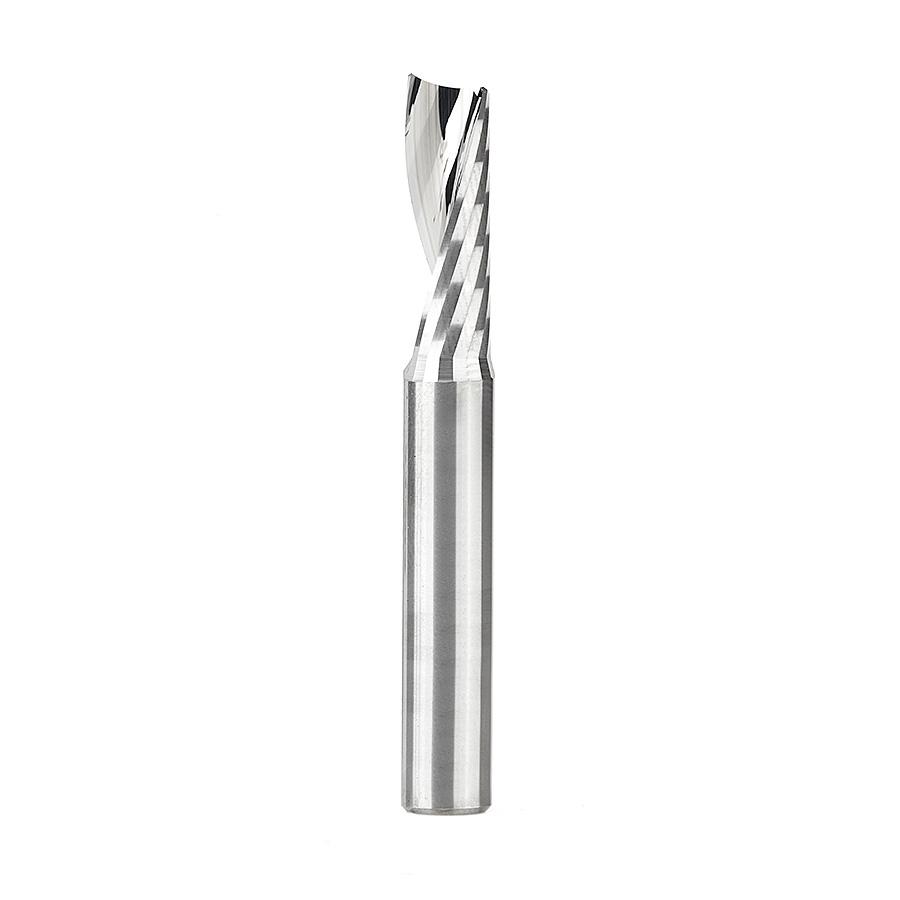

Amana Tool Solid Carbide CNC Spiral 'O' Flute, Plastic Cutting 1/4 Diameter x 3/4 x 1/4 Inch Shank Up-Cut Router Bit

Amana Tool

Solid Carbide CNC Spiral 'O' Flute, Plastic Cutting 1/4 Diameter x 3/4 x 1/4 Inch Shank Up-Cut Router Bit

SKU: 51404

order today only 2 left in stock
$47.04

T

Free Shipping

Click Checkmark for Details


Amana Tool Solid Carbide CNC Spiral 'O' Flute, Plastic Cutting 1/4 Diameter x 3/4 x 1/4 Inch Shank Up-Cut Router Bit

SKU: 51404

(D) Diameter: 1/4"
(B) Cutting Height: 3/4"
(d) Shank: 1/4"
(L) Overall Length: 2"
Flutes: 2
Direction: Up-Cut
product image

To be used only on CNC machines and routers with automatic feeding.

Produce super clean, smooth cuts especially in acrylic materials (Plexiglas® Lucite®) other plastics, and wood. Bits are made according to strict tolerances from an exclusive carbide grade and polished to a mirror finish using Amana’s unique process. Designed to eject chips up. Ideal for industrial applications and CNC machines. Right-hand helix right-hand cut.

Excellent for cutting:

  • Plastic/Acrylic
  • Acetal and Nylon
  • Acrylic Stone
  • Acrylonitrile Butadiene Styrene (ABS)
  • Aluminum Composite Material (ACM)
  • Alupanel®
  • Corian
  • Coroplast®**
  • Corrugated Plastics* such as Correx Boards and Polypropylene
  • Crosslinked Polyethylene (XPE, PEX, XLPE)
  • Delrin
  • Dibond®
  • Extruded Acrylic
  • Foam Board
  • Fomex®
  • Gatorfoam®***
  • Hard Plastic
  • High-Density Polyethylene (HDPE)
  • High-Density-Urethane (HDU Board)
  • High Impact Polystyrene (HIPS)
  • High Impact Polystyrene (HIPS) for digital printing
  • High-Pressure Laminates (HPL)
  • Hydroxy-Terminated Polyether (HTPE)
  • King ColorCore® The Multi-Color Engravable Polymer Sheet.
  • Laminate
  • Low-Density Polyethylene (LDPE)
  • LubX®
  • Lucite®
  • Mechanical/Engineered Plastics
  • Perspex® Cast Acrylic Sheet
  • Plexiglas®
  • Poly (methyl methacrylate) (PMMA)
  • Polycarbonate (Lexan™)
  • Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
  • Polyoxymethylene (POM), also known as Acetal, Polyacetal, and Polyformaldehyde.
  • Polystyrene (PS)
  • PVC
  • Sign Foam
  • Sintra PVC
  • Solid Surface
  • StarBoard® (King StarBoard 'R') High-Density Polyethylene Sheet (HDPE)
  • Teflon®
  • Thermoplastic Polyolefin (TPO)
  • Trespa® Meteon®****
  • Ultra High Molecular Weight Polyethylene (UHMWPE)
  • Urethane
  • Vinyl Flooring
  • Wood


*Corrugated Plastics such as Correx refers to a wide range of extruded twinwall plastic-sheet products produced from high-impact Polypropylene resin with a similar make-up to corrugated fiberboard. They are used in a variety of applications including boat building packaging signage outdoor advertising and the production of pet cages.

**A soft plastic cardboard made with super soft super flexible PVC.

***Gatorfoam® Foam Board a polystyrene foam board bonded between two layers of Luxcell® wood-fiber veneer.

***Decorative high-pressure compact laminate (HPL) with an integral surface.

Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan™.

Benefits of Mirror-Finish:

  • Razor-sharp cutting edge
  • Effortless chip removal
  • Helps prevent chip re-welding
  • Extends tool life
  • Exceptional cut quality
  • Dissipates heat well and
    prevents melting

Maximum RPM: 35,000

Tool #51404 Vectric Compatible Tool File
The 51404 tool file is part of the Amana Master Tool File to be used with all versions of Vectric software from version 8.0 and up. Works with Aspire, VCarve, Cut2D, Cut3D, and PhotoVCarve. This tool file is to be used as a starting point for your CNC projects and the parameters should be adjusted based on your project and material. Installation: 1. Download to a safe location such as your desktop. 2. In the software, open the Tool Database and use the import option to load the file from the safe location.

Vectric File Warning

The Vectric .tool file should only be used in conjunction with the Amana Tool item number specified. Using this file with other brands is dangerous to the operator and CNC machine.

Master Tool File

Speed & Feed Rates
