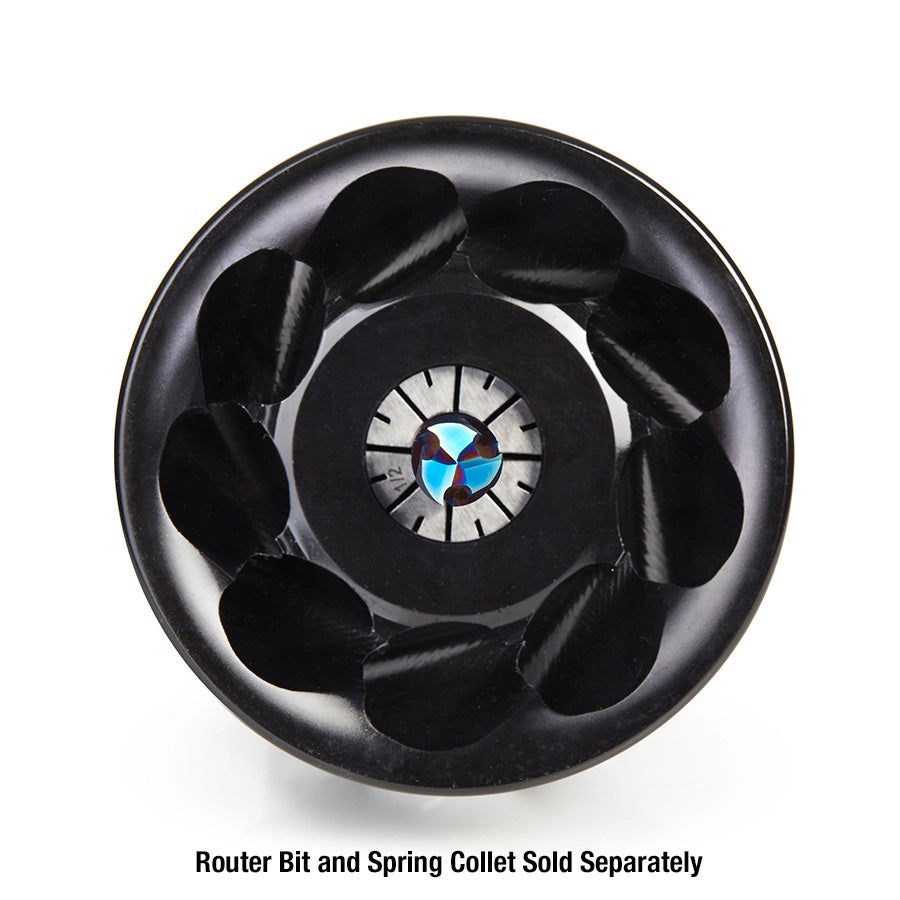

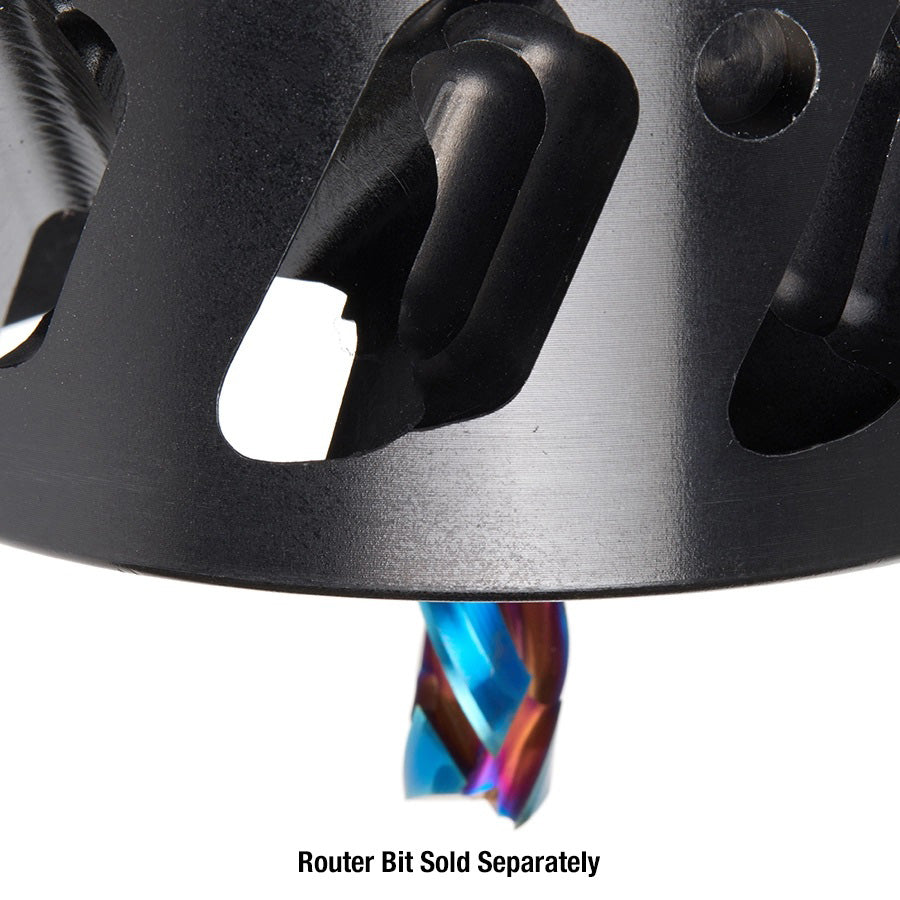

Amana Tool 92mm Dust and Chip Extraction Nut System

Amana Tool

92mm Dust and Chip Extraction Nut System


order today only 7 left in stock


Free Shipping

Click Checkmark for Details

Amana Tool 92mm Dust and Chip Extraction Nut System

For ER32 Collets

SKU: DCE-01-92

(D) Diameter: 92mm
Collet Standard: ER32
B: 42mm
d: M 40 x 1.5
(L) Overall Length: 2-1/4"
product icon


Tool body in light alloy with wrench.

Dust and extractor tool will help evacuate both dust and chips during nesting and conventional CNC routing operations.

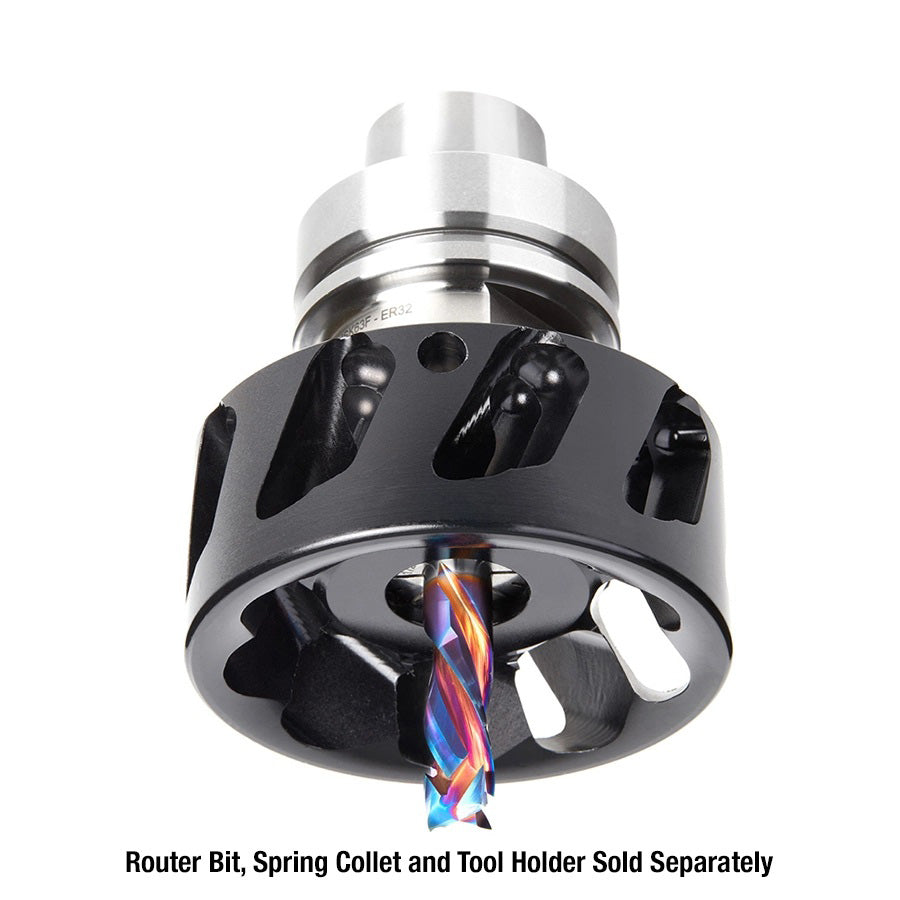

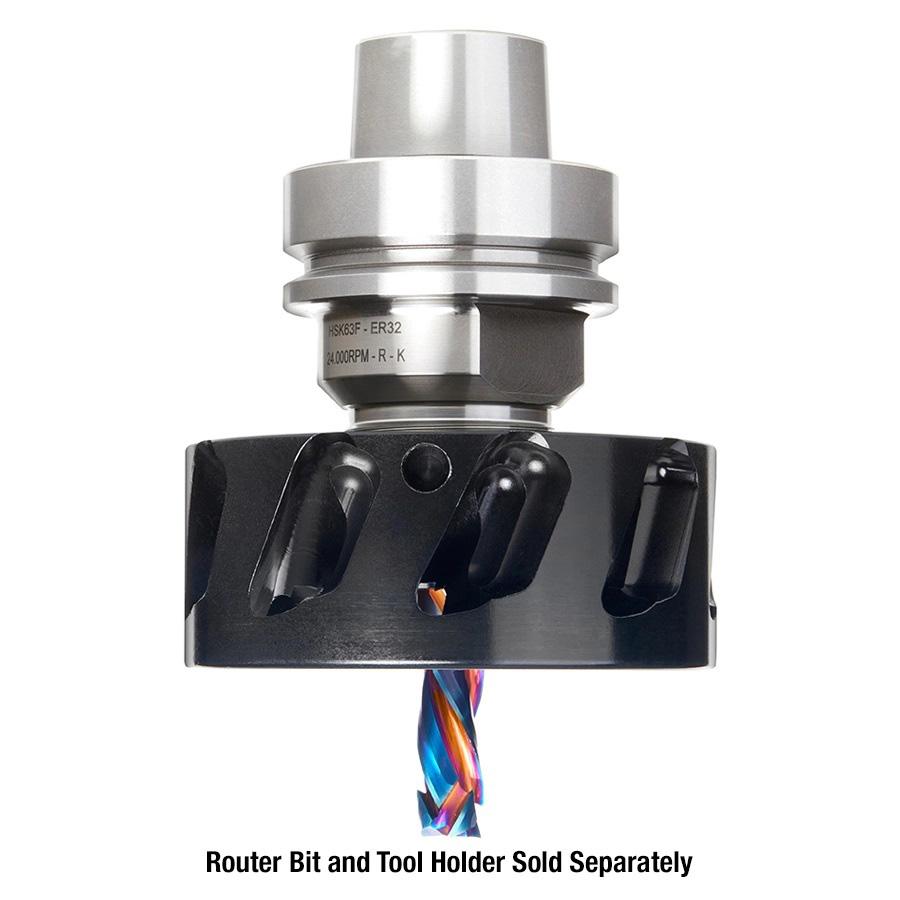

Easy to assemble directly on the collet chuck instead of the standard nut, also provides a big improvement of dust evacuation, removing it from the workpiece directly into the centralized extraction system of the CNC machine.

Special surface hardening treatment for longer performance and coating against wear and corrosion, for much better chip evacuation.

Suitable for every type of collet chucks (ISO, BT, HSK...) using standard router bits (no adaptors needed!)

Maximum tool diameter: ø92 = 68mm.

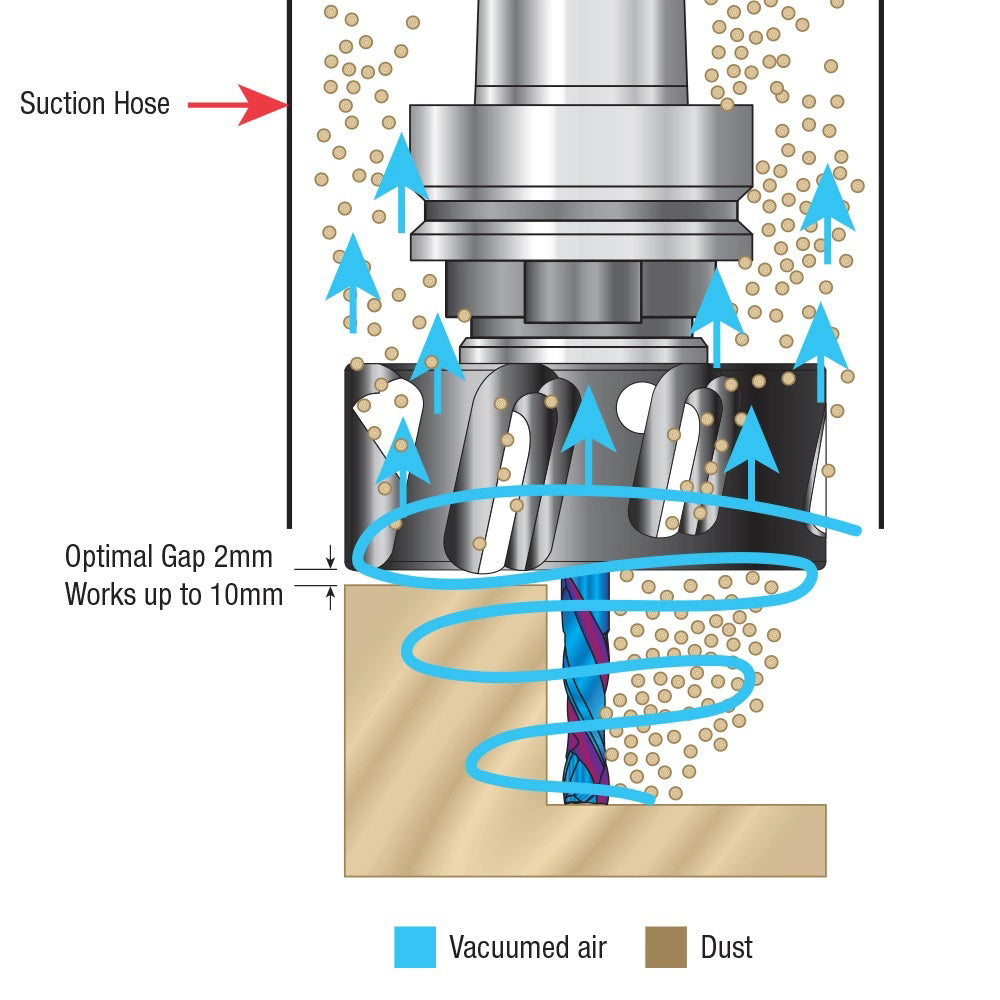

Optimal gap between dust collection and material is 2mm (0.078"). It works properly up to 10mm (0.393")

Maximum speed rotation up to 20,000 RPM.

Balanced at G2,5.
