Amana Tool

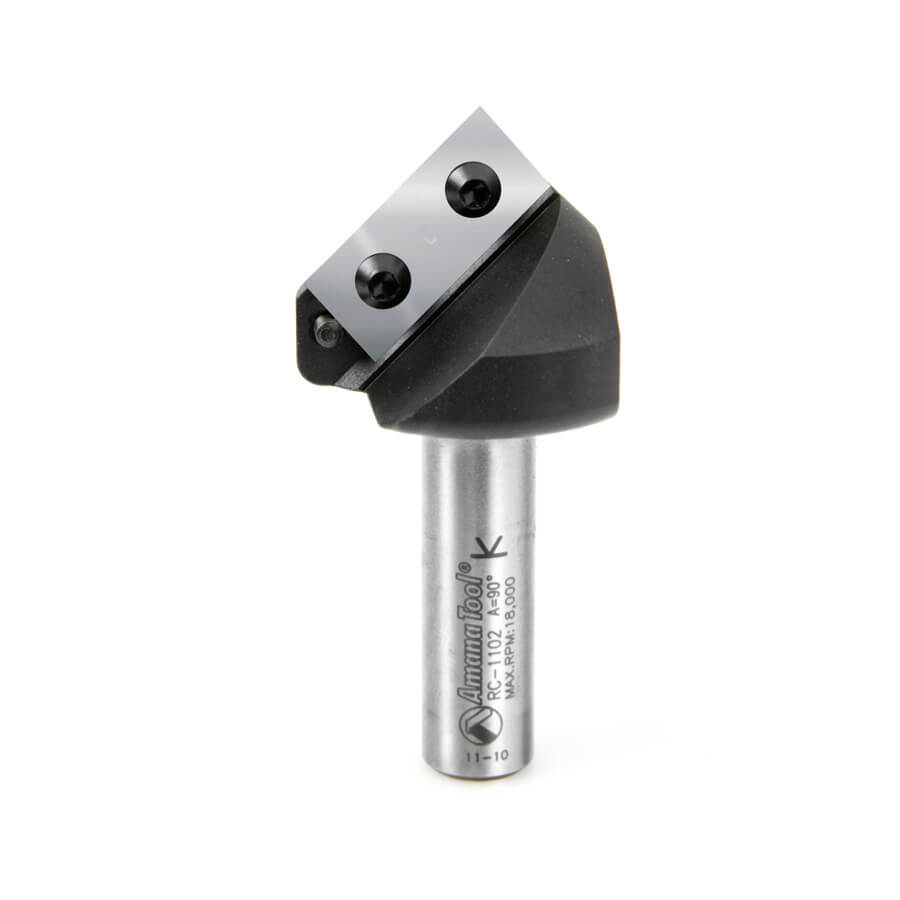

Insert V-Groove 90 Deg x 3/4 x 1/2 Inch Shank CNC

SKU: RC-1102

order today only 2 left in stock

Description

Amana Tool Insert V-Groove 90 Deg x 3/4 x 1/2 Inch Shank CNC

SKU: RC-1102

Angle (a°):	90°
a1°:	45°
(D) Diameter:	1-1/2"
(B) Cutting Height:	3/4"
B1:	1-1/16"
Cutting Edges:	2
(d) Shank:	1/2"
(L) Overall Length:	3"
L1:	1-25/32"
Maximum RPM:	8,000
Flutes:	1
# of Knives:	1

Overview
Tool Data Downloads

The innovative CNC tool design uses the highest grade carbide insert knife which allows you to get two uses out of each insert. Once the knife shows signs of wear you can rotate the insert for a brand new cutting edge. These industrial V-Groove insert router bits were especially designed for applications including:

Miter folds - "create the perfect joint"
Signmaking and lettering

Excellent for cutting:

Aluminum, Brass, Bronze, Copper, Gold, Silver & Carbon Fiber
(Engraving Only)
Acrylic/Plastic
Composites
Composite Decking
Epoxy (Epoxy Resins)
Foam
High Density Polyethylene (HDPE)
Laminate
Melamine
MDF/HDF
PVC
Sign Board
Solid Surface
Veneered Plywood
Wood
Xanita® Board*
20lbs High Density Urethane

*When working with Xanita LightBoard panel (X-board® X-board® plus) we recommend using MDF knives for better results.

Advantages of Insert Tooling:

Long lasting insert knives provide superior smooth quality cuts every time
Quick and precise replacements of dull knives
Due to insert accuracy tool life is extended
Insert tooling allows for harder grades of carbide
Special carbide grades for special applications
Cost effective solution compared to replacing brazed router bits

Secure locking screw system ensures maximum safety and maintains cutting accuracy. CNC router requires quality hold downs to ensure the least possibility of material shifting during operation.

Warning: Before using any insert tool, make sure the set screw is tightened firmly. When replacing a dull insert, first clean the tool and remove all dust prior to inserting the new knife.

Tool #RC-1102 Vectric Compatible Tool File
The RC-1102 tool file is part of the Amana Master Tool File to be used with all versions of Vectric software from version 8.0 and up. Works with Aspire, VCarve, Cut2D, Cut3D and PhotoVCarve. This tool file is to be used as a starting point for your CNC projects and the parameters should be adjusted based on your project and material. Installation: 1. Download to a safe location such as your desktop. 2. In the software, open the Tool Database and use the import option to load the file from the safe location.

Vectric File Warning

The Vectric .tool file should only be used in conjunction with the Amana Tool item number specified. Using this file with other brands is dangerous to the operator and CNC machine.

Master Tool File

Speed & Feed Rates
