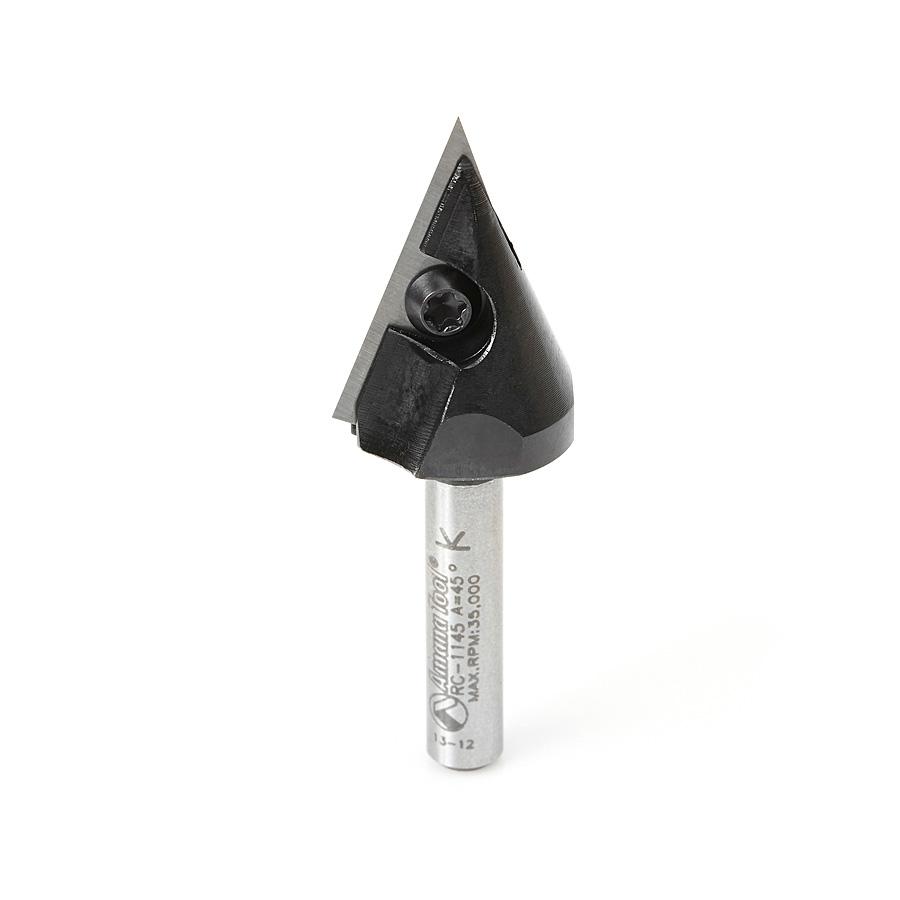

Amana Tool CNC Insert V-Groove 45 Deg x 13/16 Diameter x 63/64 x 1/4 Inch Shank Router Bit

Amana Tool

CNC Insert V-Groove 45 Deg x 13/16 Diameter x 63/64 x 1/4 Inch Shank Router Bit

SKU: RC-1145

order today only 2 left in stock
$113.40

T

Free Shipping

Click Checkmark for Details


Amana Tool CNC Insert V-Groove 45 Deg x 13/16 Diameter x 63/64 x 1/4 Inch Shank Router Bit

SKU: RC-1145

(D) Diameter: 13/16"
Angle (a°) 45°
(B) Cutting Height: 63/64"
(d) Shank: 1/4"
(L) Overall Length: 2-5/16"
a1°: 22.5°
B1: 1-16"
Cutting Edges: 1
Maximum RPM 35,000
L1: 1-3/8"
Flutes: 1
# of Knives: 1
product image

The innovative CNC tool design uses the highest grade carbide insert knife. These industrial V-Groove insert router bits were specially designed for applications including:

  • Miter folds - "create the perfect joint"
  • Signmaking and lettering

Excellent for Cutting:

  • Aluminum, Brass, Bronze, Copper, Gold, Silver & Carbon Fiber
    (Engraving Only)
  • Acrylic/Plastic
  • Composites
  • Composite Decking
  • Epoxy (Epoxy Resins)
  • Foam
  • High-Density Polyethylene (HDPE)
  • Laminate
  • Melamine
  • MDF/HDF
  • PVC
  • Sign Board
  • Solid Surface
  • Veneered Plywood
  • Wood
  • Xanita® Board*
  • 20lbs High-Density-Urethane

*When working with Xanita LightBoard panel (X-board® X-board® plus) we recommend using MDF knives for better results.

Advantages of Insert Tooling:

  • Long-lasting insert knives provide superior smooth quality cuts every time
  • Quick and precise replacements of dull knives
  • Due to insert accuracy tool life is extended
  • Insert tooling allows for harder grades of carbide
  • Special carbide grades for special applications
  • Cost-effective solution compared to replacing brazed router bits

Secure locking screw system ensures maximum safety and maintains cutting accuracy. CNC router requires quality hold-downs to ensure the least possibility of material shifting during operation.

Warning: Before using any insert tool, make sure the set screw is tightened firmly. When replacing a dull insert, first clean the tool and remove all dust prior to inserting the new knife.

Tool #RC-1145 Vectric Compatible Tool File
The RC-1145 tool file is part of the Amana Master Tool File to be used with all versions of Vectric software from version 8.0 and up. Works with Aspire, VCarve, Cut2D, Cut3D, and PhotoVCarve. This tool file is to be used as a starting point for your CNC projects and the parameters should be adjusted based on your project and material. Installation: 1. Download to a safe location such as your desktop. 2. In the software, open the Tool Database and use the import option to load the file from the safe location.

Vectric File Warning

The Vectric .tool file should only be used in conjunction with the Amana Tool item number specified. Using this file with other brands is dangerous to the operator and CNC machine.
