Amana Tool

Insert V-Groove 60 Deg x 59/64 x 1/4 Inch Shank CNC Router Bit

SKU: RC-1148

order today only 3 left in stock

Description

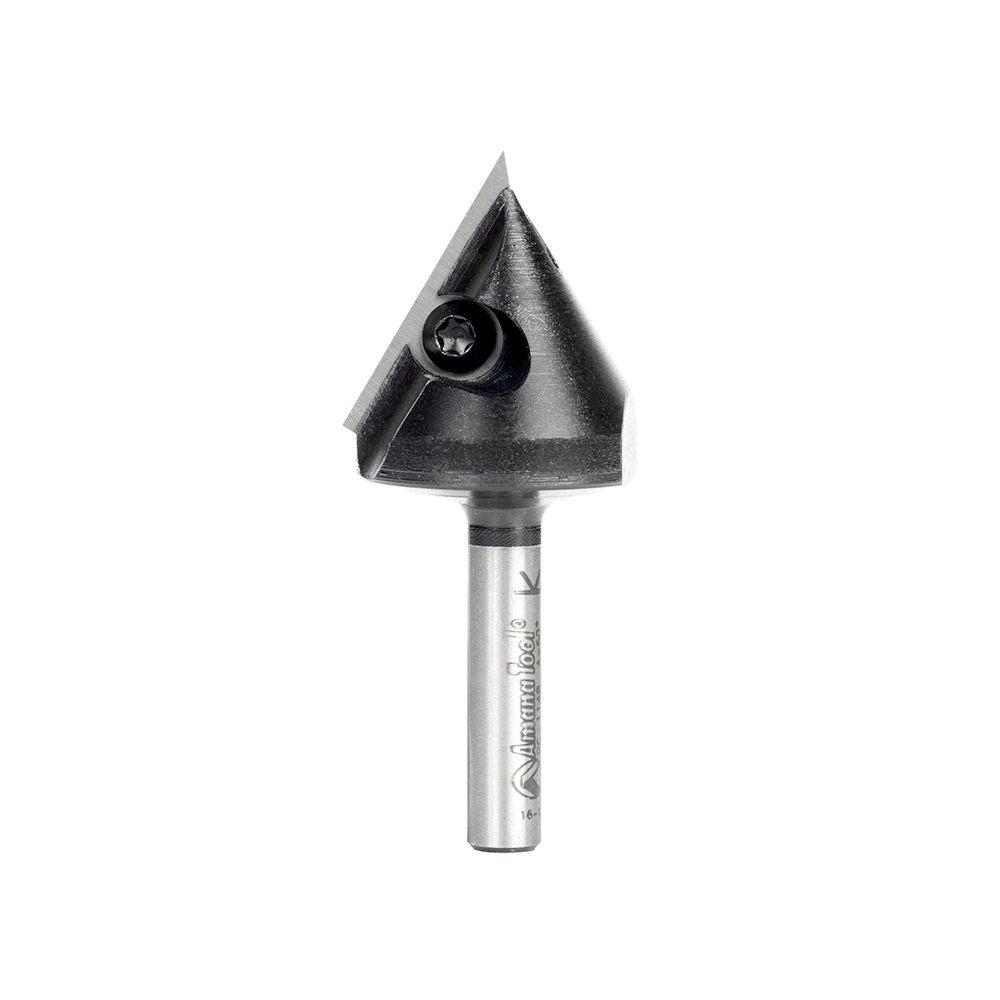

Amana Tool RC-1148 Insert V-Groove 60 Deg x 59/64 x 1/4 Inch Shank CNC Router Bit

SKU: RC-1148

(D) Diameter:	1-1/16"
(a°) Angle:	60°
(B) Cutting Height:	59/64"
(d) Shank:	1/4"
(L) Overall Length:	2-25/64"
a1°:	30°
B1	1-1/16"
Cutting Edges:	1
Max RPM:	24,000
L1:	1-1/8"

Overview

The innovative CNC tool design uses the highest grade carbide insert knife. These industrial V-Groove insert router bits were especially designed for applications including:

Miter folds - "create the perfect joint"
Signmaking and lettering

Excellent for cutting:

Aluminum, Brass, Bronze, Copper, Gold, Silver & Carbon Fiber
(Engraving Only)
Composites
Composite Decking
Epoxy (Epoxy Resins)
Foam
High Density Polyethylene (HDPE)
Laminate
Melamine
MDF/HDF
PVC
Sign Board
Solid Surface
Veneered Plywood
Wood
Xanita® Board *
20lbs High Density Urethane

*When working with Xanita LightBoard panel (X-board® X-board® plus) we recommend using MDF knives for better results.

Advantages of Insert Tooling:

Long-lasting insert knives provide superior smooth quality cuts every time
Quick and precise replacements of dull knives
Due to insert accuracy tool life is extended
Insert tooling allows for harder grades of carbide
Special carbide grades for special applications
Knives can be re-sharpened multiple times without affecting the original profile
Cost-effective solution compared to replacing brazed router bits

Warning: Before using any insert tool, make sure the set screw is tightened firmly. When replacing a dull insert, first clean the tool and remove all dust prior to inserting the new knife.
