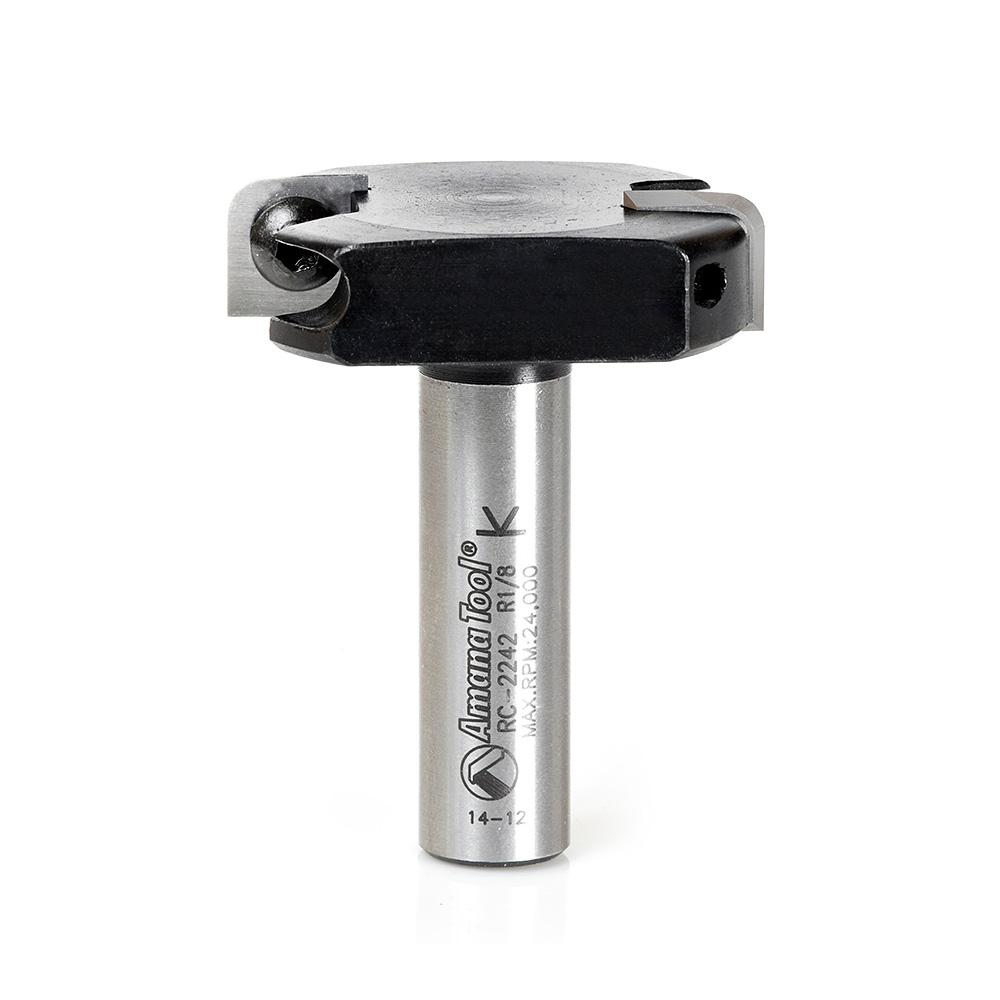

Carbide Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler & Surface Planer 1/8 Radius x 1-3/4 Diameter x 15/32 x 1/2 Inch Shank Router Bit

Amana’s new radius edge cutter RC-2242 is best recommended to be used for surface planing/flattening in surfaces of large solid wood slabs with a handheld router in router sleds.

Features a 1/8" radius bevel making this tool unique compared to other spoilboard bits. A great tool for fast removal of materials over a large surface area.

Also suitable for router sled machines, Make sure that your router sled is fully stable and squared.

Perfect for:

• Resurfacing spoilboards using CNC
• Planing large glued up panels using CNC
• Surfacing and finishing wood using timber slab machines
• Rabbeting

Designed for planing & rabbeting the following materials:

• Fiberboard
• HDF/LDF
• MDF

Featuring:

• 4-sided solid carbide insert knives
• Exclusive carbide grade for highest quality of cut
• Maximum cutting efficiency
• Faster material removal process

These industrial router bits feature solid carbide insert knives with four cutting edges that allow users to rotate the knife when one side becomes dull providing the highest-quality finish

Proper torques rating to tighten down screws is 2-3Nm Torques.

Tool #RC-2242 Vectric Compatible Tool File
The RC-2242 tool file is part of the Amana Master Tool File to be used with all versions of Vectric software from version 8.0 and up. Works with Aspire, VCarve, Cut2D, Cut3D, and PhotoVCarve. This tool file is to be used as a starting point for your CNC projects and the parameters should be adjusted based on your project and material.
Installation:
1. Download to a safe location such as your desktop.
2. In the software, open the Tool Database and use the import option to load the file from the safe location.

Vectric File Warning

The Vectric .tool file should only be used in conjunction with the Amana Tool item number specified. Using this file with other brands is dangerous to the operator and CNC machine.
