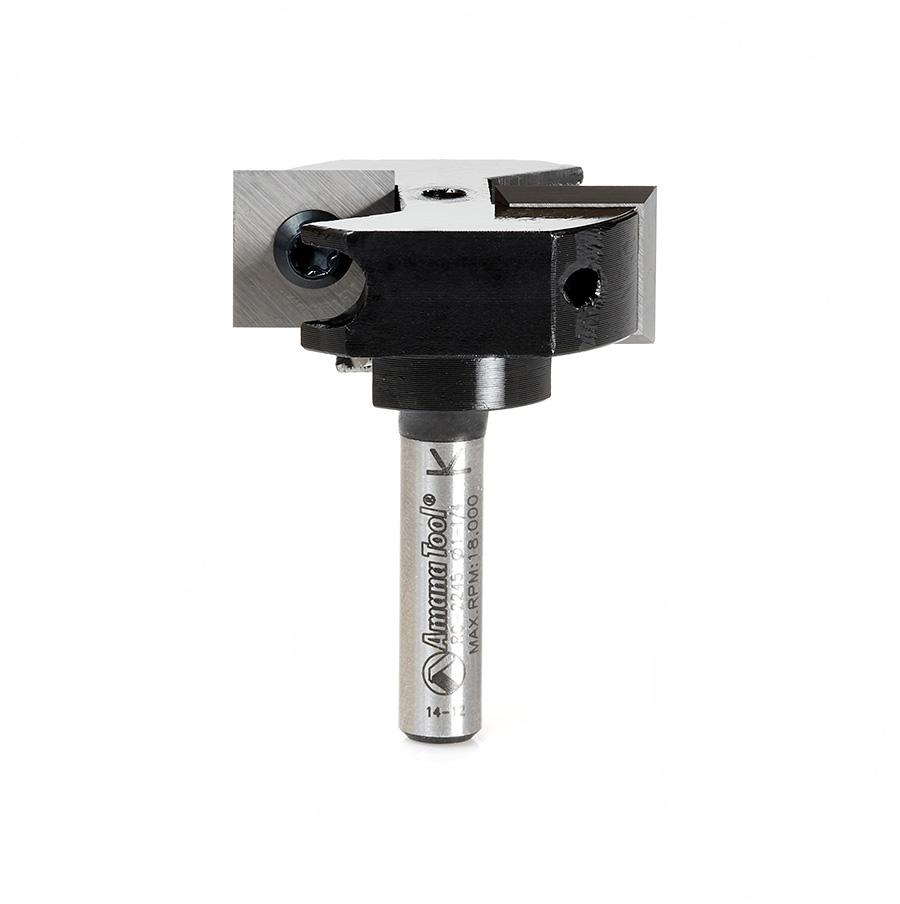

Amana Tool Insert Carbide Mini Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler & Surface Planer 1-1/4 Diameter x 15/32 (12mm) x 1/4 Inch Shank Router Bit

Amana Tool

Insert Carbide Mini Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler & Surface Planer 1-1/4 Diameter x 15/32 (12mm) x 1/4 Inch Shank Router Bit

SKU: RC-2245

order today only 5 left in stock
$209.64

T

Free Shipping

Click Checkmark for Details


Amana Tool Insert Carbide Mini Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler & Surface Planer 1-1/4 Diameter x 15/32 (12mm) x 1/4 Inch Shank Router Bit

SKU: RC-2245

(D) Diameter: 1-1/4"
(B) Cutting Height: 15/32" (12mm)
(d) Shank: 1/4"
(L) Overall Length: 1-11/16"
Maximum RPM: 18,000
L1: 1-1/16"
Replacement Knives: HMA-12 (2)
(A) Cut Depth: 1/4"
product icon

Mini insert carbide spoilboard surfacing & rabbeting router bit great for cutting tight corners and surface planing.

Also suitable for router sled machines, Make sure that your router sled is fully stable and squared.

Perfect for:

  • Resurfacing spoilboards using CNC
  • Planing large glued up panels using CNC
  • Surfacing and finishing wood using timber slab machines
  • Rabbeting or slotting

Designed for planing & rabbeting the following materials:

  • MDF
  • Fiberboard
  • HDF/LDF
  • Balsa Core*
  • Epoxy (Epoxy Resins)*
  • High-Density-Urethane (HDU Board)*
  • Plastic/Acrylic*
  • Plywood/Chipboard*
  • Hardwood/Softwood*
  • Ultra-High-Molecular-Weight Polyethylene (UHMWPE)*

*For optimal results and maximum insert life, replace inserts with optional general purpose knives #AMA-12 (sold separately).

Features:

  • 4-sided solid carbide insert knives
  • Exclusive carbide grade for highest quality of cut
  • Maximum cutting efficiency
  • Faster material removal process

These industrial router bits feature solid carbide insert knives with four cutting edges that allow users to rotate the knife when one side becomes dull providing the highest-quality finish available on woodworking tools.

Warning Proper torques rating to tighten down screws is 2-3Nm Torques.

Tool #RC-2245 Vectric Compatible Tool File
The RC-2245 tool file is part of the Amana Master Tool File to be used with all versions of Vectric software from version 8.0 and up. Works with Aspire, VCarve, Cut2D, Cut3D, and PhotoVCarve. This tool file is to be used as a starting point for your CNC projects and the parameters should be adjusted based on your project and material. Installation: 1. Download to a safe location such as your desktop. 2. In the software, open the Tool Database and use the import option to load the file from the safe location.

Vectric File Warning

The Vectric .tool file should only be used in conjunction with the Amana Tool item number specified. Using this file with other brands is dangerous to the operator and CNC machine.

Master Tool File

Speed & Feed Rates
