Amana Tool
Insert Carbide Mini Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler & Surface Planer 1-1/2 Dia x 15/32 (12mm) x 1/4 Inch Shank Router Bit
Insert Carbide Mini Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler & Surface Planer 1-1/2 Dia x 15/32 (12mm) x 1/4 Inch Shank Router Bit
SKU: SKU:RC-2248
Order today only 3 left
Couldn't load pickup availability
Click Checkmark for Details

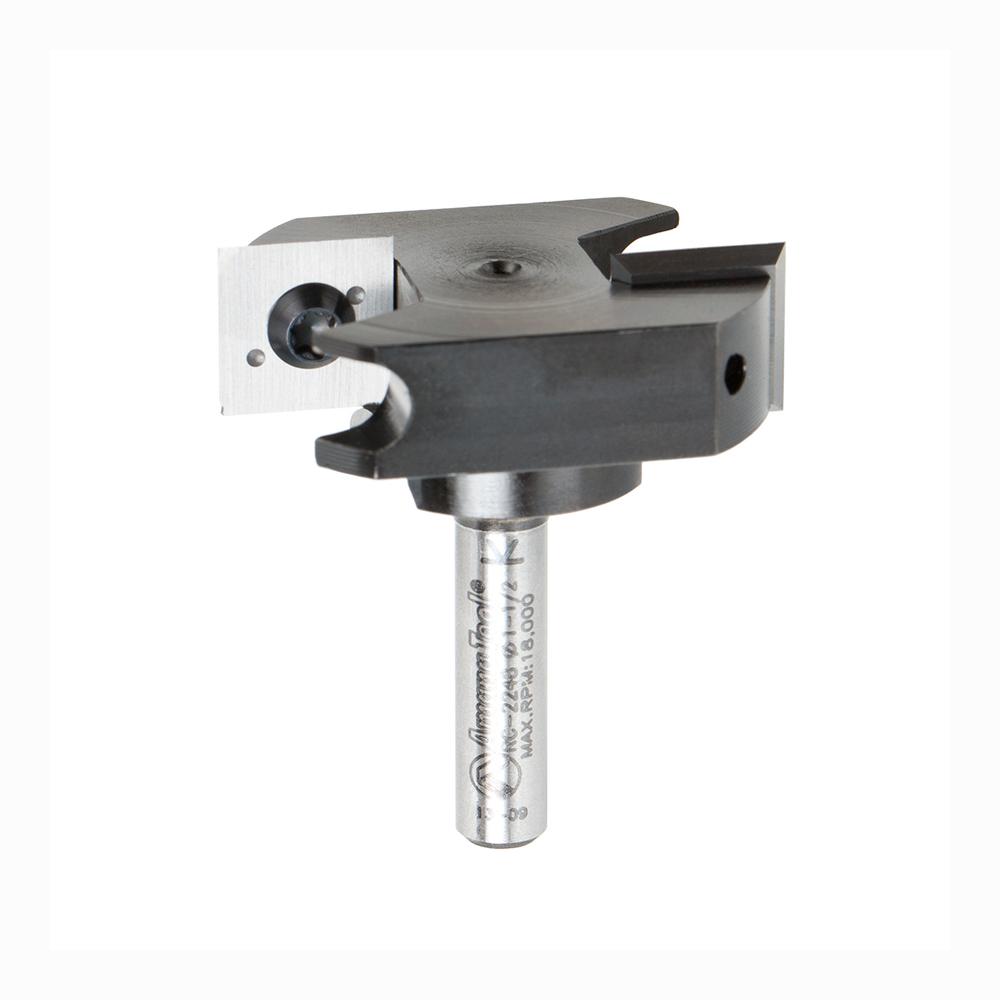

Amana Tool RC-2248 Insert Carbide Mini Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler & Surface Planer 1-1/2 Diameter x 15/32 (12mm) x 1/4 Inch Shank Router Bit
SKU: RC-2248
(D) Diameter: | 1-1/2" |
---|---|
(B) Cutting Height: | 12mm ( 15/32" ) |
(d) Shank: | 1/4" |
(L) Overall Length: | 1-11/16" |
Max RPM: | 24,000 |
L1: | 1-1/16" |
Replacement Knives: | HMA-12 (2) |
(A) Cut Depth: | 1/4" |

- Overview
- Tool Data Downloads
Mini insert carbide spoilboard surfacing & rabbeting router bit great for cutting tight corners and surface planing.
Perfect for:
- Resurfacing spoilboards using CNC
- Planing large glued up panels using CNC
- Surfacing and finishing wood using timber slab machines
- Rabbeting or slotting
Designed for planing & rabbeting the following materials:
- MDF
- Fiberboard
- HDF/LDF
- Balsa Core *
- Epoxy (Epoxy Resins) *
- High Density Urethane (HDU Board) *
- Plastic/Acrylic *
- Plywood/Chipboard *
- Hardwood/Softwood *
- Ultra-High-Molecular-Weight Polyethylene (UHMWPE) *
*For optimal results and maximum insert life, replace inserts with optional general purpose knives #AMA-12 (sold separately).
Featuring:
- 4-sided solid carbide insert knives
- Exclusive carbide grade for highest quality of cut
- Maximum cutting efficiency
- Faster material removal process
Tool #RC-2248-K Vectric Compatible Tool File
RC-2248-K tool file to be used with all versions of Vectric software from version 8.0 and up. Works with Aspire, VCarve, Cut2D, Cut3D, and PhotoVCarve. This tool file is to be used as a starting point for your CNC projects and the parameters should be adjusted based on your project and material.
Installation:
1. Download to a safe location such as your desktop.
2. In the software, open the Tool Database and use the import option to load the file from the safe location.
Vectric File Warning
The Vectric .tool file should only be used in conjunction with the Amana Tool item number specified. Using this file with other brands is dangerous to the operator and CNC machine.
RC-2248-K Tool File
Speed & Feed Rates
