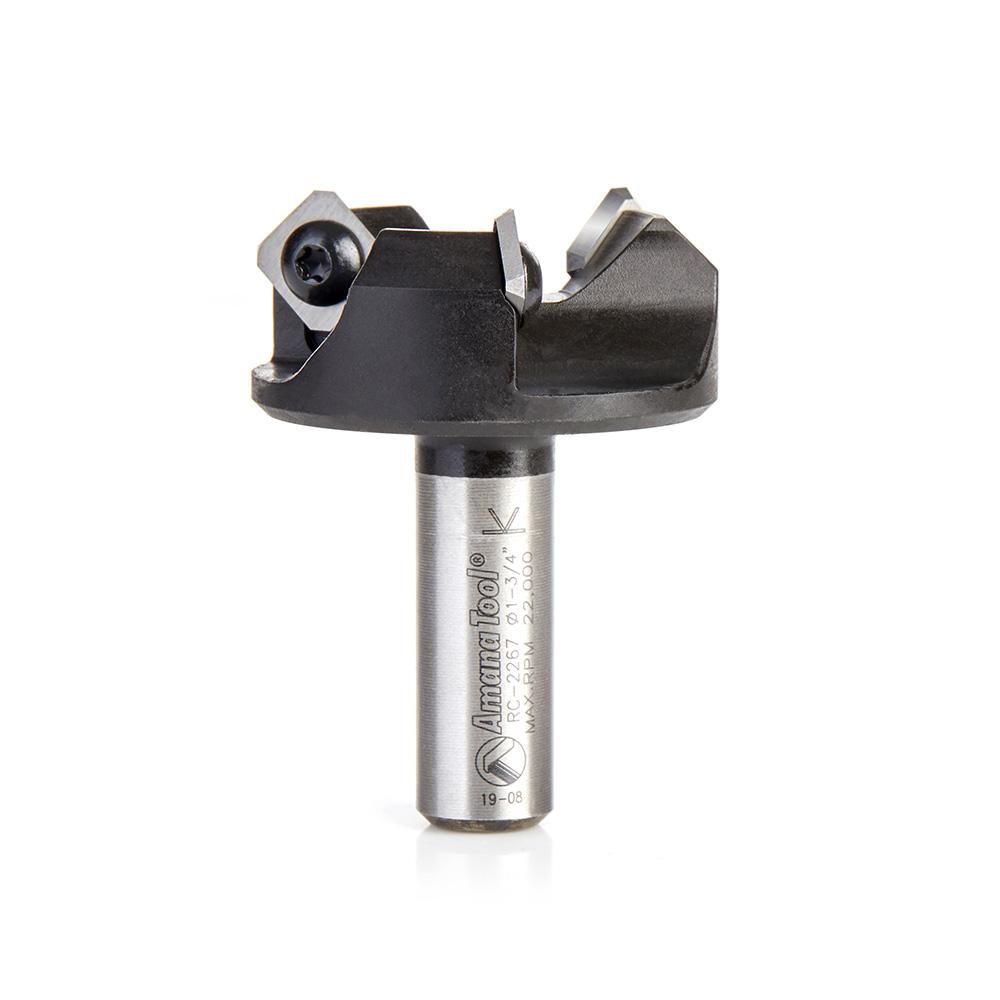

Amana Tool CNC Insert Carbide 3 Wing/Flute Heavy Duty Spoilboard Plunging, Surfacing, Planing, Flycutter & Slab Leveler 1-3/4 Dia x 3/4 x 1/2 Shank Router Bit

Amana Tool

CNC Insert Carbide 3 Wing/Flute Heavy Duty Spoilboard Plunging, Surfacing, Planing, Flycutter & Slab Leveler 1-3/4 Dia x 3/4 x 1/2 Shank Router Bit

SKU: RC-2267

order today only 2 left in stock
$247.00

T

Free Shipping

Click Checkmark for Details


Amana Tool CNC Insert Carbide 3 Wing/Flute Heavy-Duty Spoilboard Plunging, Surfacing, Planing, Flycutter & Slab Leveler 1-3/4 Diameter x 3/4 x 1/2 Shank Router Bit

SKU: RC-2267

(D) Diameter: 1-3/4"
(B) Cutting Height: 3/4"
(d) Shank: 1/2"
(L) Overall Length: 2-15/64"
B1 3/16"
Maximum RPM 22,000
Flutes: 3
D1 1-21/64"
a1° 5/64°
product image

Insert carbide spoilboard surfacing & chamfering router bit, great for planing large surface areas. Higher number of teeth allows for higher feed rate.

Also suitable for router sled machines, make sure that your router sled rails are fully stable and squared.

Ideal for:

  • Resurfacing spoilboards using CNC
  • Planing large glued up panels using CNC
  • Surfacing and finishing wood using timber slab machines
  • Rabbeting or slotting

Designed for planing & chamfering the following materials:

  • MDF
  • Fiberboard
  • HDF/LDF
  • Balsa Core*
  • Epoxy (Epoxy Resins)*
  • High-Density-Urethane (HDU Board)*
  • Plastic/Acrylic**
  • Plywood/Chipboard*
  • Hardwood/Softwood*
  • Ultra-High-Molecular-Weight Polyethylene (UHMWPE)*

*For optimal results and maximum insert life, replace inserts with optional general purpose knives #RCK-453 or #RCK-453DLC (sold separately).

**Use lower CNC spindle RPM and adjusted feed rate to prevent Melting and adhesion of the acrylic material to the tool.

Features:

  • 4-sided solid carbide insert knives
  • Exclusive carbide grade for highest quality of cut
  • Maximum cutting efficiency
  • Faster material removal process
  • Tool can plunge up to a maximum depth of 6mm (1/4"), then start resurfacing
  • Tool capable of removing very thin layers of material, less than 0.001" per pass
  • The unique chamfer corner insert design, creates a flawless surface.
  • The 3 wing design, resulting in a more balanced tool while running.

These industrial router bits feature solid carbide insert knives with four cutting edges that allow users to rotate the knife when one side becomes dull providing the highest-quality finish available on woodworking tools.

Proper torques rating to tighten down screws is 2-3Nm Torques.

Tool #RC-2267 Vectric Compatible Tool File
The RC-2267 tool file is part of the Amana Master Tool File to be used with all versions of Vectric software from version 8.0 and up. Works with Aspire, VCarve, Cut2D, Cut3D, and PhotoVCarve. This tool file is to be used as a starting point for your CNC projects and the parameters should be adjusted based on your project and material. Installation: 1. Download to a safe location such as your desktop. 2. In the software, open the Tool Database and use the import option to load the file from the safe location.

Vectric File Warning

The Vectric .tool file should only be used in conjunction with the Amana Tool item number specified. Using this file with other brands is dangerous to the operator and CNC machine.

RC-2267 Tool File
