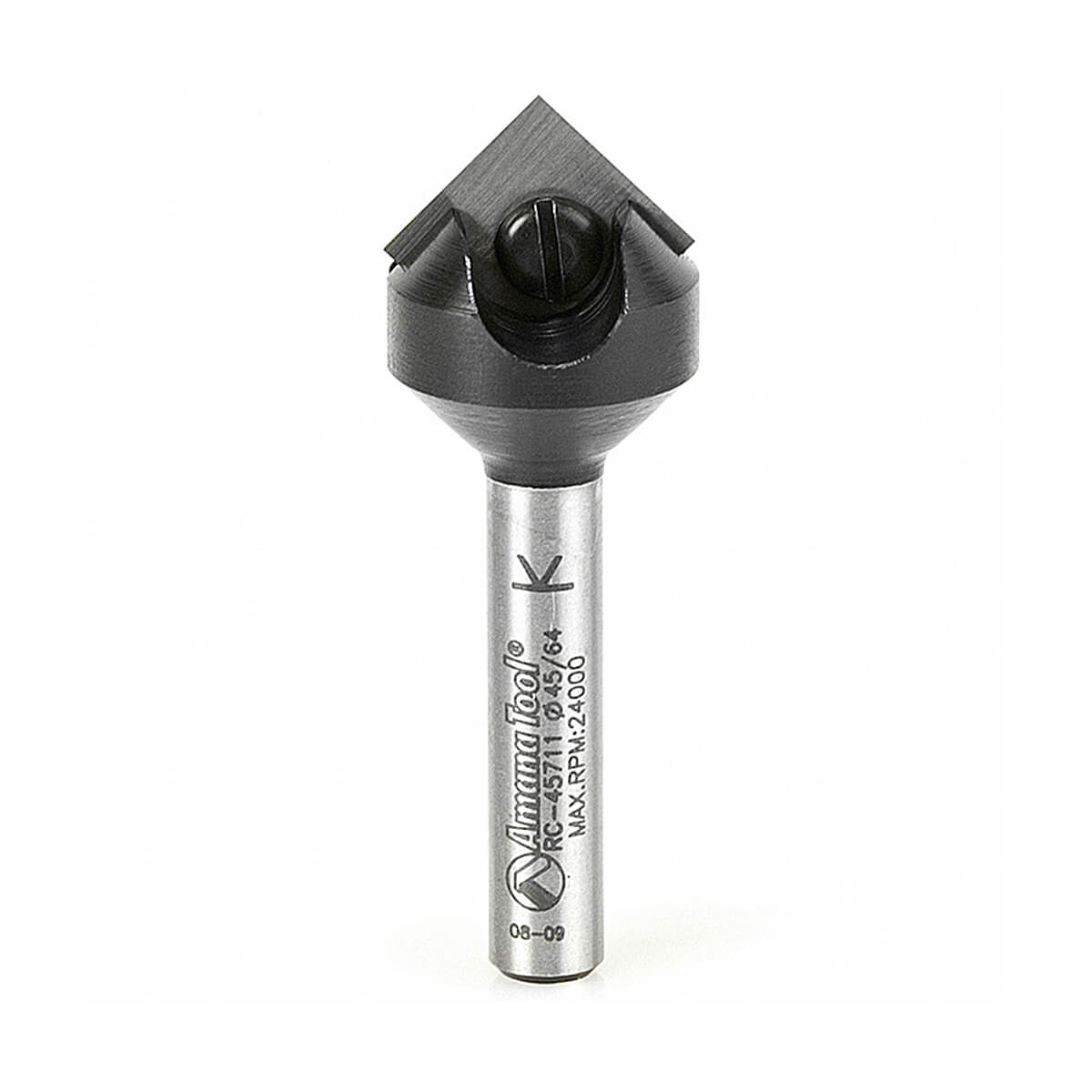

Amana Tool RC-45711 In-Tech Insert Carbide V Groove 90 Degree x 11/16" Diameter x 21/64" x 1/4" Shank Single Flute Router Bit

Amana Tool

In-Tech Insert Carbide V Groove 90 Degree x 11/16" Diameter x 21/64" x 1/4" Shank Single Flute Router Bit

SKU: RC-45711

order today only 1 left in stock
$37.59

T

Free Shipping

Click Checkmark for Details


Amana Tool In-Tech Insert Carbide V Groove 90 Degree x 11/16" Diameter x 21/64" x 1/4" Shank Single Flute Router Bit

SKU: RC-45711

Angle (a°): 90°
a1°: 45°
Diameter (D): 3/4"
Cutting Height (B): 21/64"
Shank (d): 1/4"
Overall Length (L): 1-61/64"
Type: V-Groove/Signmaking
Flutes: 2
# of Knives: 1
Cutting Edges 4
Replacement Insert Knives: AMA-12 (12x12x1.5mm)
product icon

These popular insert router bit profiles provide all woodworkers access to the industrial-grade technology, at an affordable price. By replacing worn knives instead of sharpening standard carbide tipped bits, router bit dimensions, cutting quality and accuracy remain constant during the life of the tool.

Each insert knife can be rotated to four new points.

Ideal for routing:

  • Aluminum
  • Brass
  • Bronze
  • Copper
  • Gold
  • Silver
  • Carbon Fiber (Engraving Only)
  • MDF
  • Chipboard
  • Softwood

Benefits of the in-Tech™ Series include:

  • Cutting accuracy remains constant during the life of the knife
  • Priced comparably to brazed router bits with at least 4 times longer tool life
  • Superior cutting quality
  • No resharpening costs
  • Harder grade tungsten carbide

Tool #RC-45711 Vectric Compatible Tool File
The RC-45711 tool file is part of the Amana Master Tool File to be used with all versions of Vectric software from version 8.0 and up. Works with Aspire, VCarve, Cut2D, Cut3D and PhotoVCarve. This tool file is to be used as a starting point for your CNC projects and the parameters should be adjusted based on your project and material. Installation: 1. Download to a safe location such as your desktop. 2. In the software, open the Tool Database and use the import option to load the file from the safe location.

Vectric File Warning

The Vectric .tool file should only be used in conjunction with the Amana Tool item number specified. Using this file with other brands is dangerous to the operator and CNC machine.

icon

Master Tool File



icon

Speed & Feed Rates
