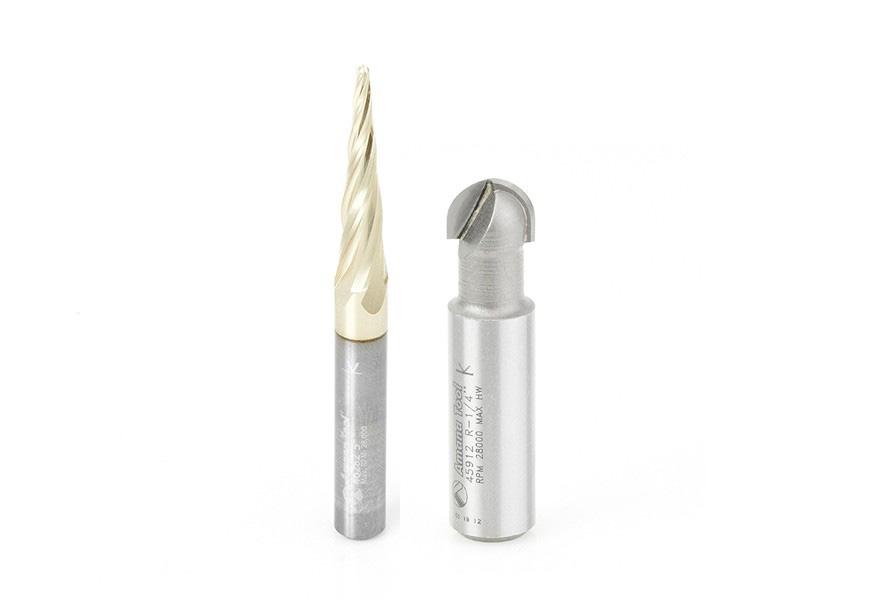

2pc CNC Carving Bit Set by Amana Tool

The Axiom ABS-303 Carving Bit Set provides everything you need to produce clean, highly detailed 3D carvings. The 1/4” radius core box bit is ideal for quickly removing large amounts of material during roughing applications. The 1/16” tapered ball nose bit can produce a glass-smooth surface yet offers crisp, highly detailed detail reproduction of complex 3D models.

*Vcarve and Aspire users* The purchase of this Axiom router bit set includes a free download of the tooling geometry and simple instructions which allow you to easily import your new bits directly into your Vectric tooling database.

Carbide Tipped Core Box 1/4" Radius x 1/2" Diameter x 3/8" x 1/2" Shank

(D) Diameter	1/2"
(R) Radius	1/2"
(B) Cutting Height	3/8"
(d) Shank	1/2"
Overall Length (L)	2-1/8"
Flutes	2

Solid Carbide Up-Cut Spiral ZrN Coated 5.4 Deg Tapered Angle Ball Tip 1/16 Diameter x 1/32 Radius x 1 x 1/4 Shank

(D) Diameter	1/16"
(R) Radius	1/32"
(a°) Angle	5.4
(B) Cutting Height	1"
(d) Shank	1/4"
Overall Length (L)	3"
Flutes	2
