Axiom Precision AR8 ELITE 24" x 48" CNC Router

Axiom Precision

AR8 ELITE 24" x 48" CNC Router

SKU: AR8ELITE

$16,999.00

Upon receipt of your order you will be contacted to discuss delivery time and shipping options.

Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.

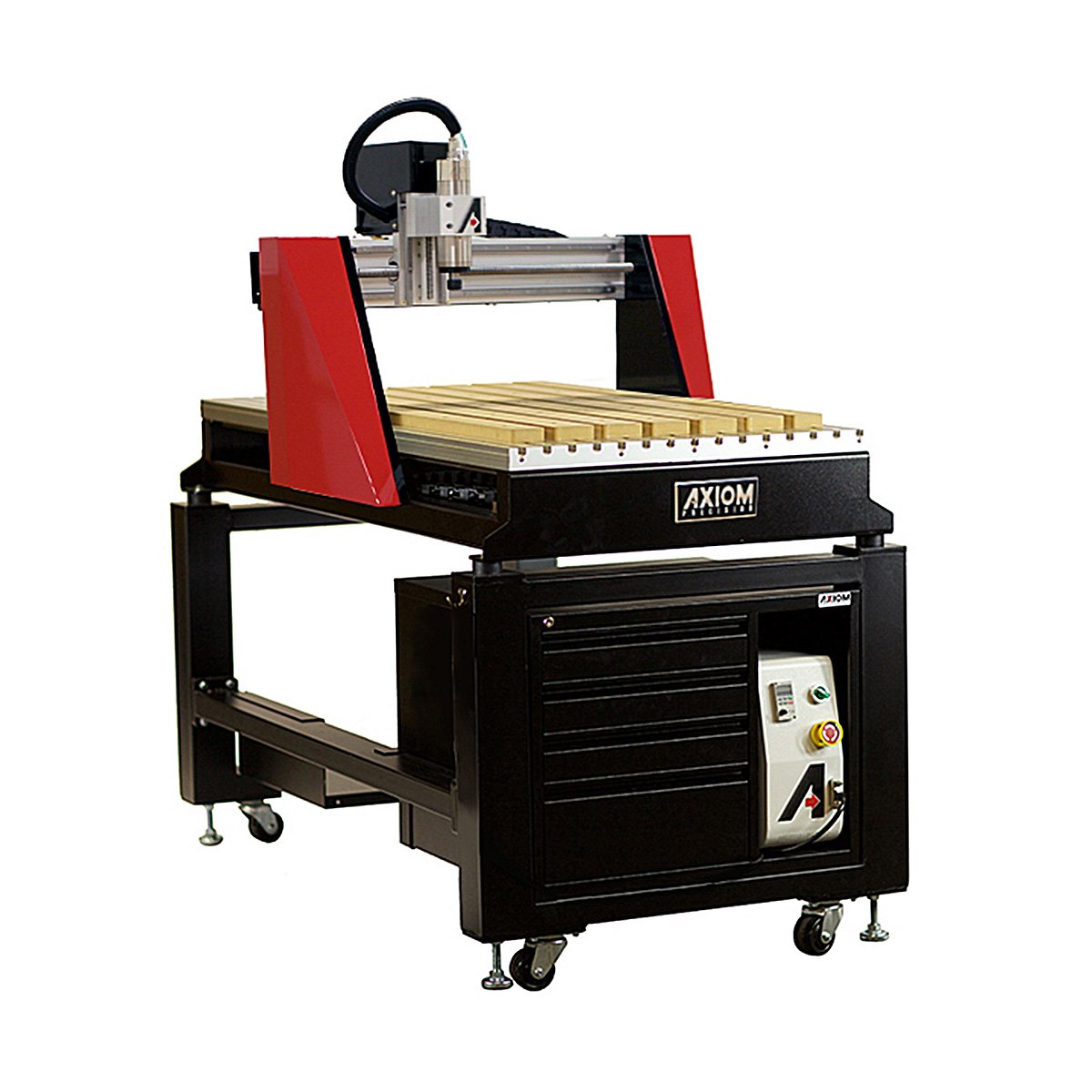

Axiom AR8 ELITE 24" x 48" CNC Router

SKU: AR8ELITE

The Axiom Precision AutoRoute Elite CNC router represents the most advanced technology that is primarily found on machines in industrial shops. They offer the speed, torque and precision which can only be found in servo-driven machines. Cut at up to 320 IPM while maintaining repeatability of .05mm!

Our Elite Series CNC routers have a full 8'' Z travel capacity and a quiet yet powerful 3HP electro-spindle with integrated liquid cooling system. All Elite Series routers utilize 20mm precision ball screws, massive prismatic guides, a robust steel frame, and interlocking aluminum table. In addition, the integrated MDF spoil boards promise you the all precision you need, since they can easily be milled flat for a true perpendicular surface to the spindle.

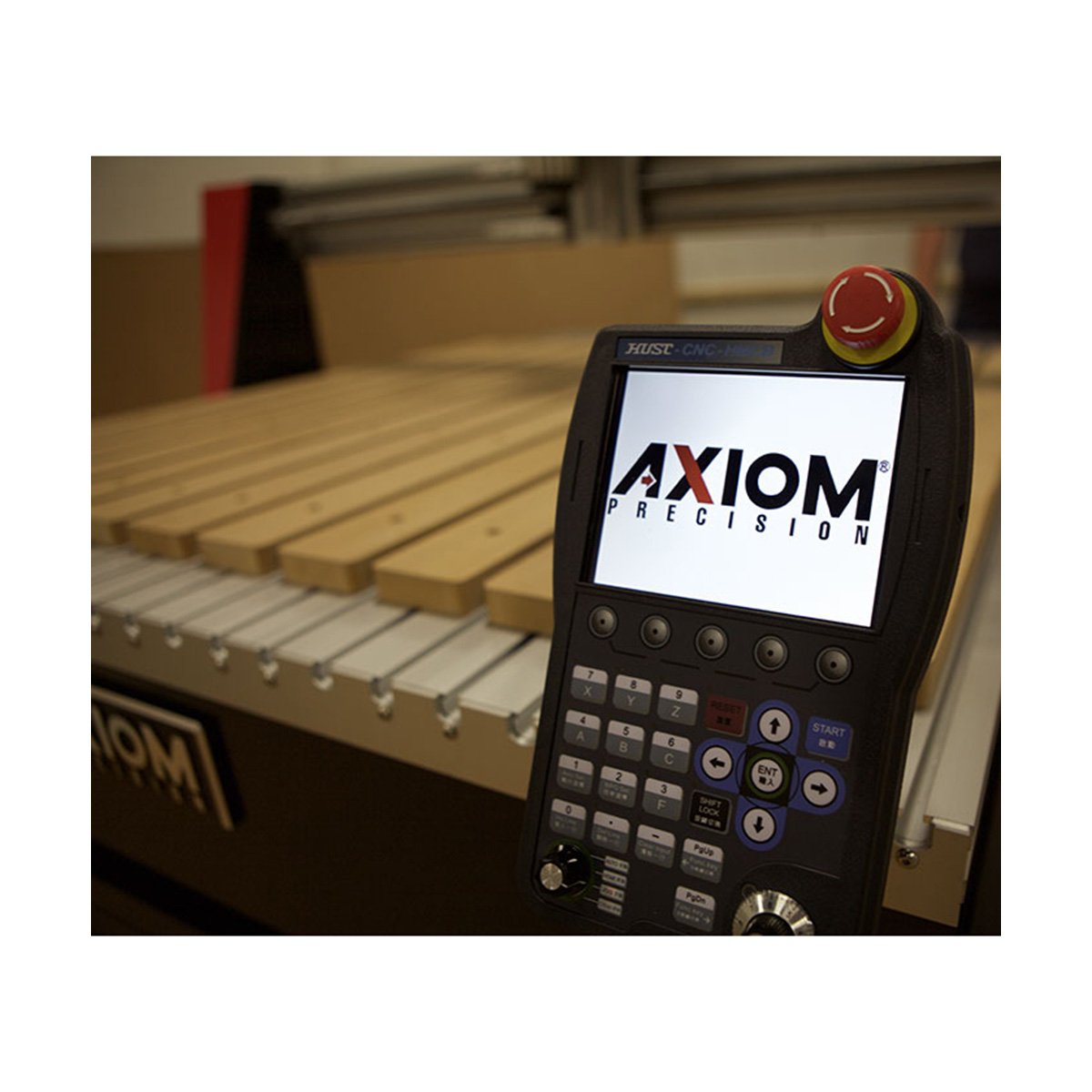

There is no need to attach your CNC router to your computer to operate it. Simply transfer your file to the controller via USB storage device. The hand-held HUST DSP controller is powerful, easy to use, and 4th-axis ready.

Features

  • Servo Driven Performance
  • Unparalleled Speed & Precision
  • 3HP ER-20 Electro Spindle

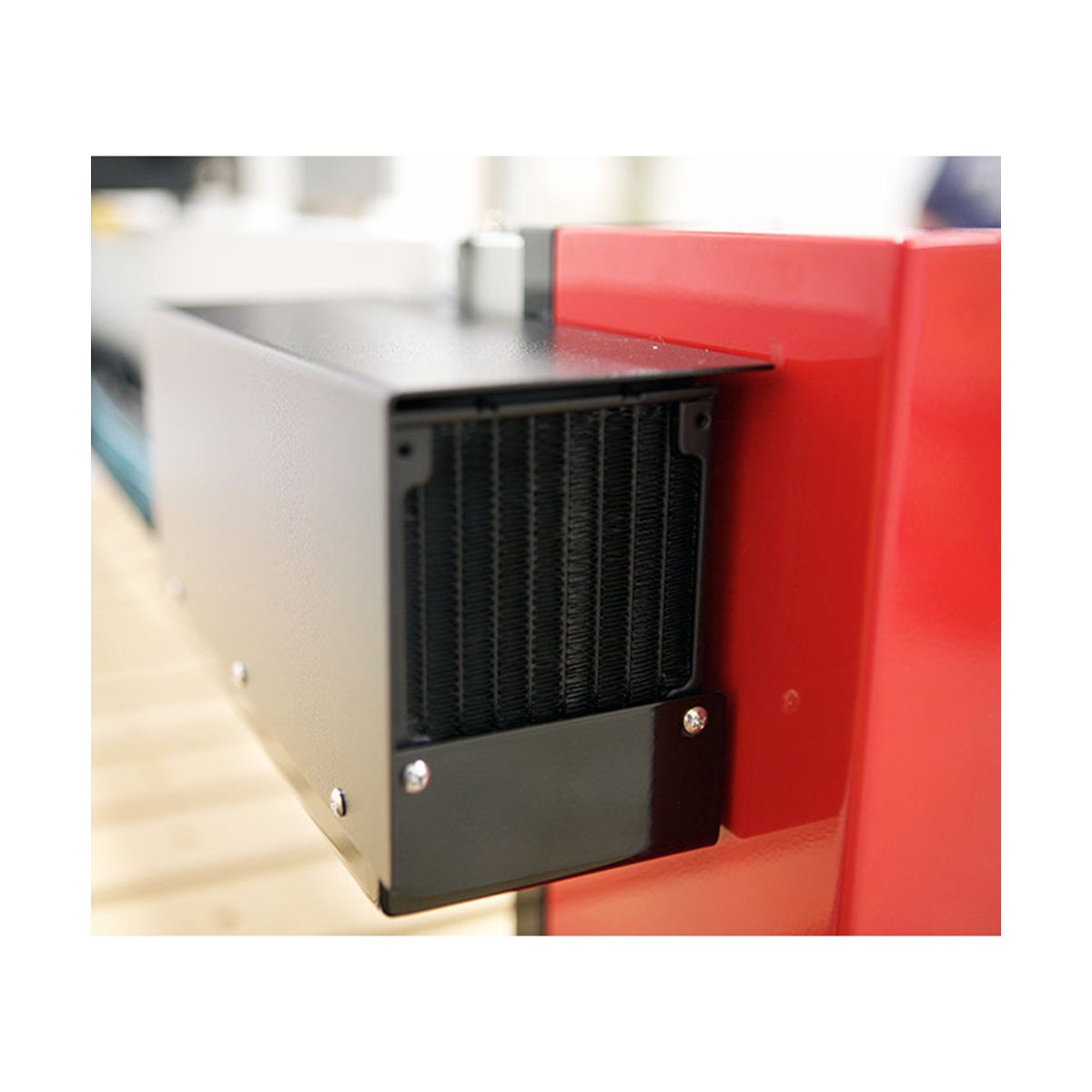

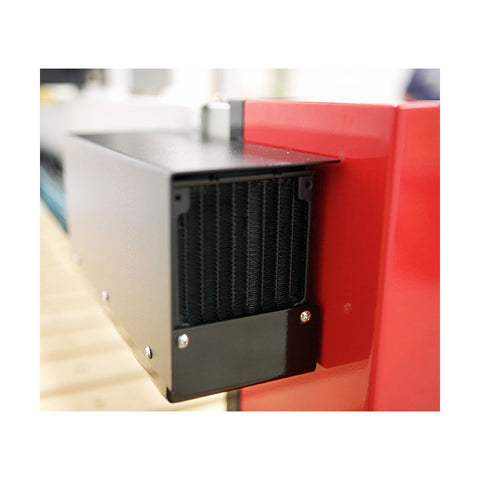

  • On-Board Liquid Cooling System

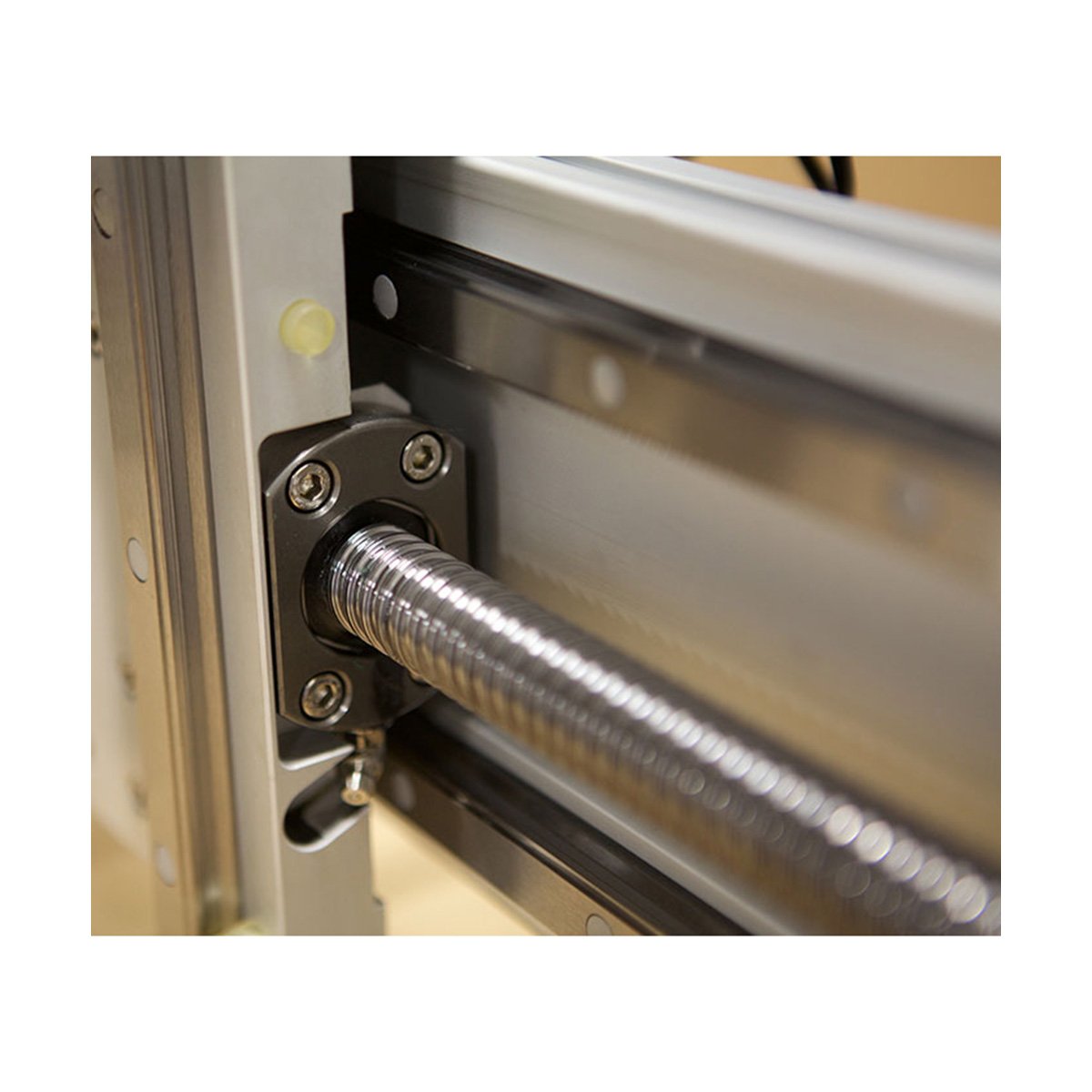

  • Precision Ball Screws

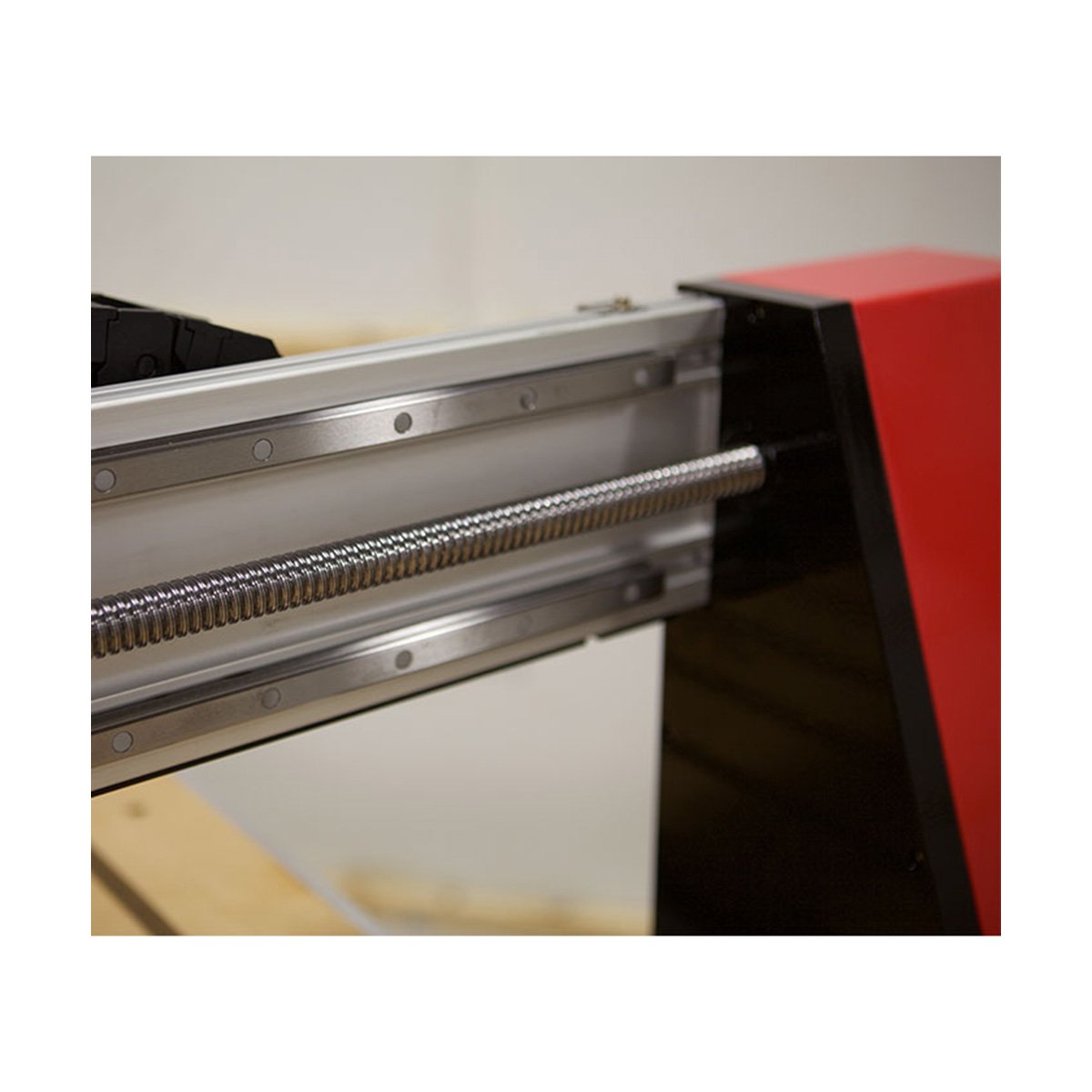

  • Prismatic Guides in all Axes
  • Industrial 4-Axis CNC Controller
  • Stand and Tool Storage Included
X-axis travel 610mm (24")
Y-axis travel 1220mm (48")
Z-axis travel 195mm (7.68")
Table work area 28.4" x 63"
Spindle Configuration ER20
Included Collets 1/4" & 1/2"
Electro Spindle 2.2KW (3.0HP)
Spindle speed 0~24000 RPM
Rapid feed rate 320 IPM (8 MPM)
Precision Linear Guideway X/Y/Z
Precision BallScrew X/Y/Z
BallScrew Diameter X=20mm , Y=25mm , Z=16mm
Positional Accuracy +/-.00197” (0.05mm)
Power requirements 220 V,50~60 Hz, 11A, 1-Phase

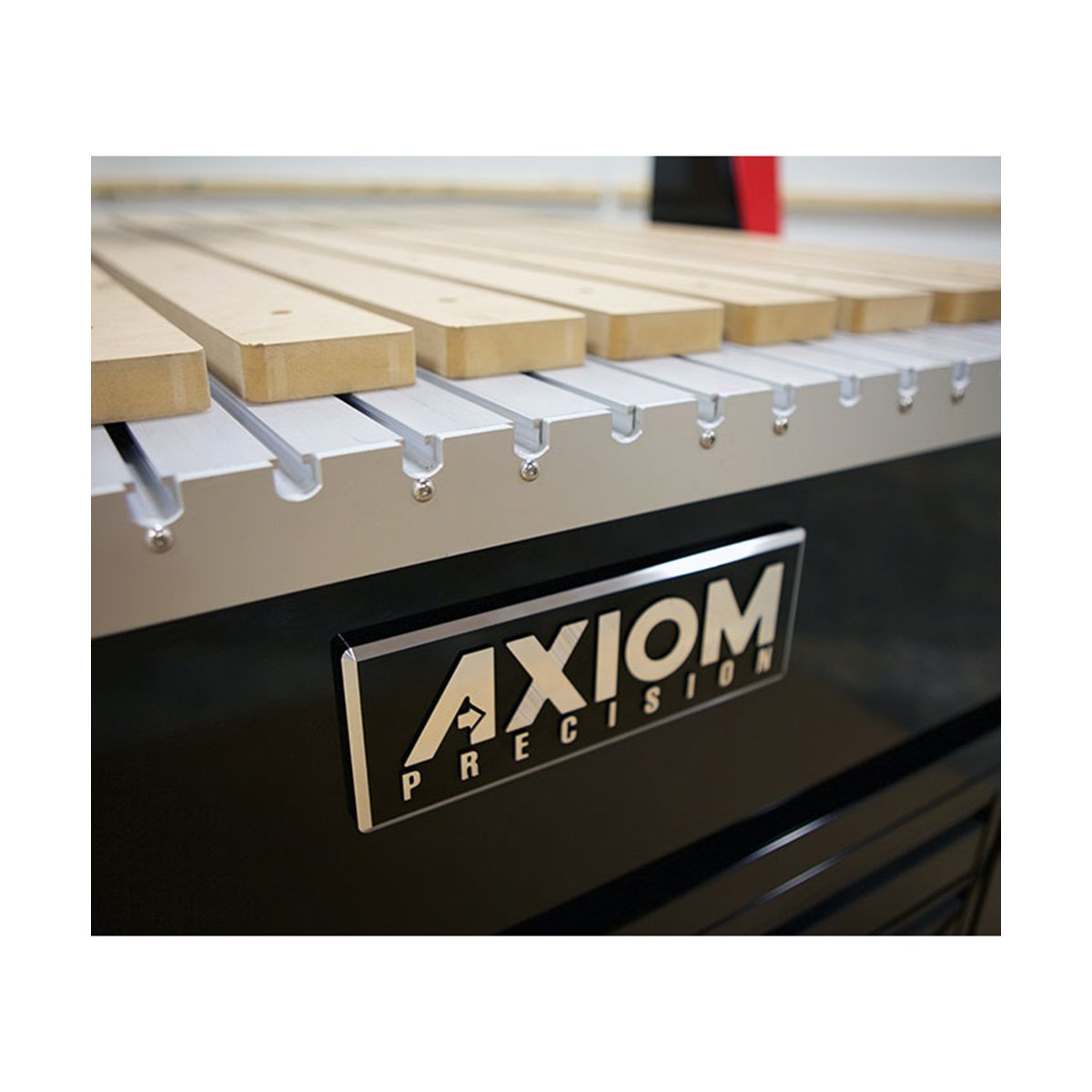

Working Table High rigidity Aluminum Extrusion
Gantry bridge High rigidity Aluminum Extrusion
Gantry Supports Aluminum alloy gravity cast
Gantry Clearance 8 inches
Machine Base All Welded Steel
Shipping Dimensions 65" x 44" x 42"
Shipping Weight 764 lbs
Tool Touch Off Included
Onboard Cooling System Included
Controller • RichAuto B58 Industrial 4-Axis CNC Controller
• DSP CNC motion control system
• USB port for easy file transfer.
Language Support English / Chinese
