Axiom Precision
Axiom 4th Axis Rotary Kit
Axiom 4th Axis Rotary Kit
SKU: SKU:ARK360
Regular price
$1,599.00
Regular price
Sale price
$1,599.00
Unit price
/
per
Out of stock
We'll notify you when available
Couldn't load pickup availability
Free Shipping
Click Checkmark for Details

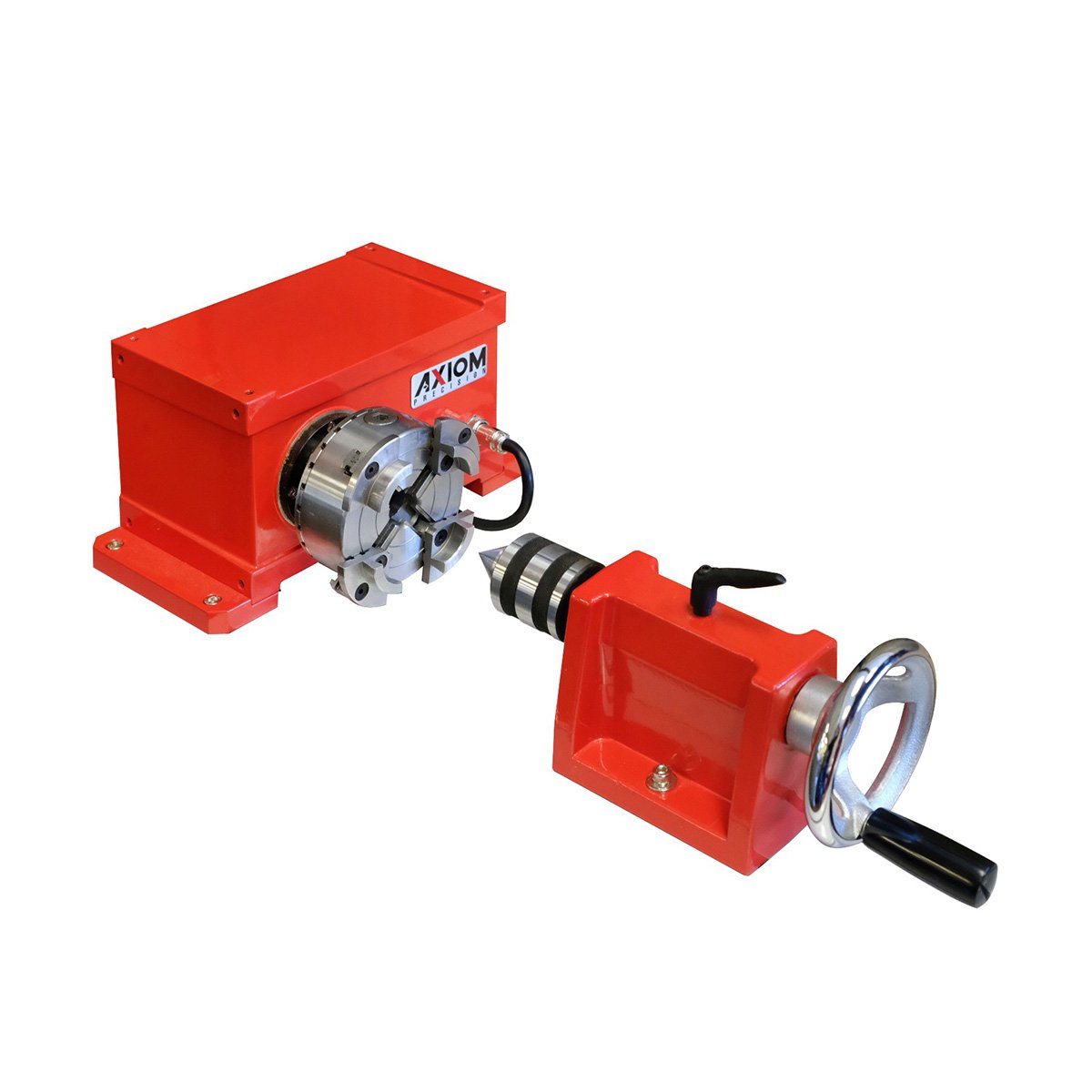

Axiom 4th Axis Rotary Kit
SKU: ARK360
- Overview
- Specifications
Overview
This turning accessory can be ordered with any Pro+ or Elite Series machine and will allow machining on cylindrical objects. The current release of VCarve includes a ‘profile wrapping’ function, so no additional software is required to begin creating amazing 3-dimensional work
Specifications
| Chuck capacity | 80mm (3.14") |
| Chuck diameter | 100mm (3.93") |
| Diameter of center through-hole | 13mm (.5") |
| Center height | 75mm (2.95") |
| Min. increment | 0.0023deg |
| Overall height | 140mm (5.51") |
| Motor | Stepper |
| Tailstock with live center | Yes |
| 4-Jaw chuck (1" 8TPI) | Yes |
| Center taper | MT#2 |
