Axiom Precision Iconic Series 24" x 48" CNC Router

Axiom Precision

Iconic Series 24" x 48" CNC Router V6


Shipping Weight: 242.0 lb
Please Note: Some weights are volumetric


This product is available on a special order basis.

Special Order items are not covered under the Free Shipping policy.

Get Total Pricing Including Shipping Cost

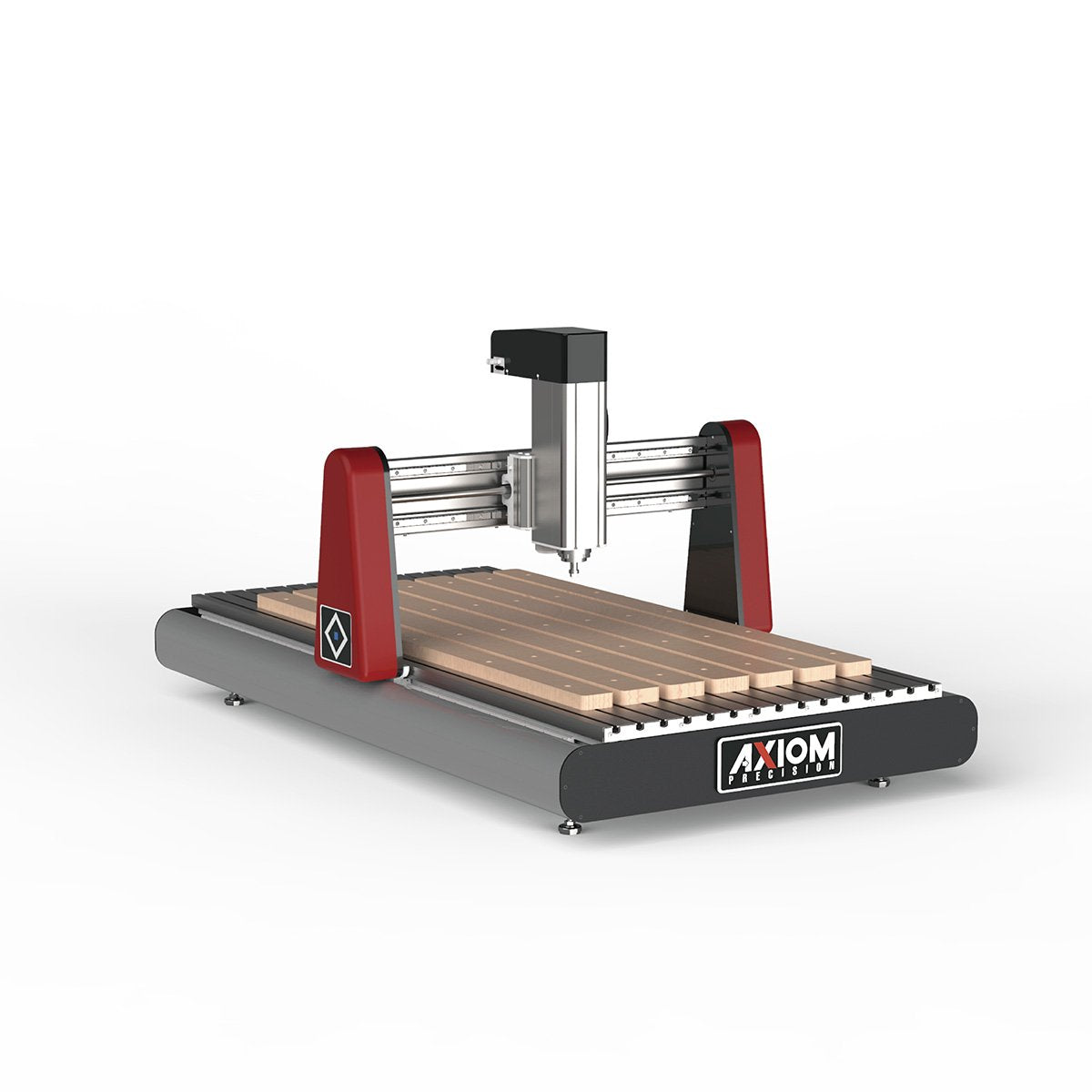

Axiom Iconic Series 24" x 48" CNC Router


Rarely does the least expensive solution possess best-in-class features…That changes with the launch of Axiom’s new Iconic CNC machining center. The best technology and components have been selected to build what will surely be the new king of the entry-level CNC market.

The new Iconic CNC series includes three sizes, each with prismatic guides, ball screws, and the same powerful, yet easy to use, DSP pendant controller which we utilize on our larger machines. We also provide a full complement of accessories ensuring that you’ll receive a package that’s specifically tailored to your CNC needs.

Targeted specifically at the first-time CNC user, the new Iconic lineup will be supported with a comprehensive manual and video library which are intended to dramatically shorten a new user's learning curve.


  • High Rigidity Extruded Aluminum Frame
  • Interlocking Aluminum Table
  • Integrated MDF Spoil Board
  • Auto Tool Touch-off Plate
  • Prismatic Guides In All Axes
  • Precision Ball Screws
  • 1HP (800W) Electro Spindle
  • RichAuto B11 Industrial 3-Axis CNC Controller
X-axis travel 605mm (23.81")
Y-axis travel 1210mm (47.63")
Z-axis travel 100mm (3.937")
Table work area 28.4" x 61"
Electro Spindle 800W (1HP)
Spindle speed 0~24000 RPM
Rapid feed rate 150 IPM
Precision Linear Guideway X/Y/Z
Precision BallScrew X/Y/Z
BallScrew Diameter 15mm
Positional Accuracy +/- 0.15mm (.00589”)
Power requirements 115V, 50~60Hz, 13A, 1-Phase
Working Table High rigidity Aluminum Extrusion
Gantry bridge High rigidity Aluminum Extrusion
Gantry Supports Aluminum billet machined
Maximum Gantry Clearance 114.3mm (4-1/2")
Gantry Clearance Above Spoilboard 139mm (5-1/2")
Machine Base All Welded Steel
Machine Dimensions 62"L x 35"W x 28"H
Shipping Dimensions 64" x 37" x 15"
Machine Weight 242 lbs
Tool Touch Off Included
Controller •RichAuto B11 DSP CNC motion control system
•USB port for easy file transfer.
