Bosch
2.25 HP Electronic Fixed-Base Router
2.25 HP Electronic Fixed-Base Router
SKU: SKU:1617EVS
The Bosch 1617EVS Router features a powerful 12 Amp motor, variable speed control, and Constant Response circuitry for smooth, precise cuts—ideal for templates, jigs, and fixed-base routing tasks.Full description below
Order today only 3 left
Click Checkmark for Details
Share

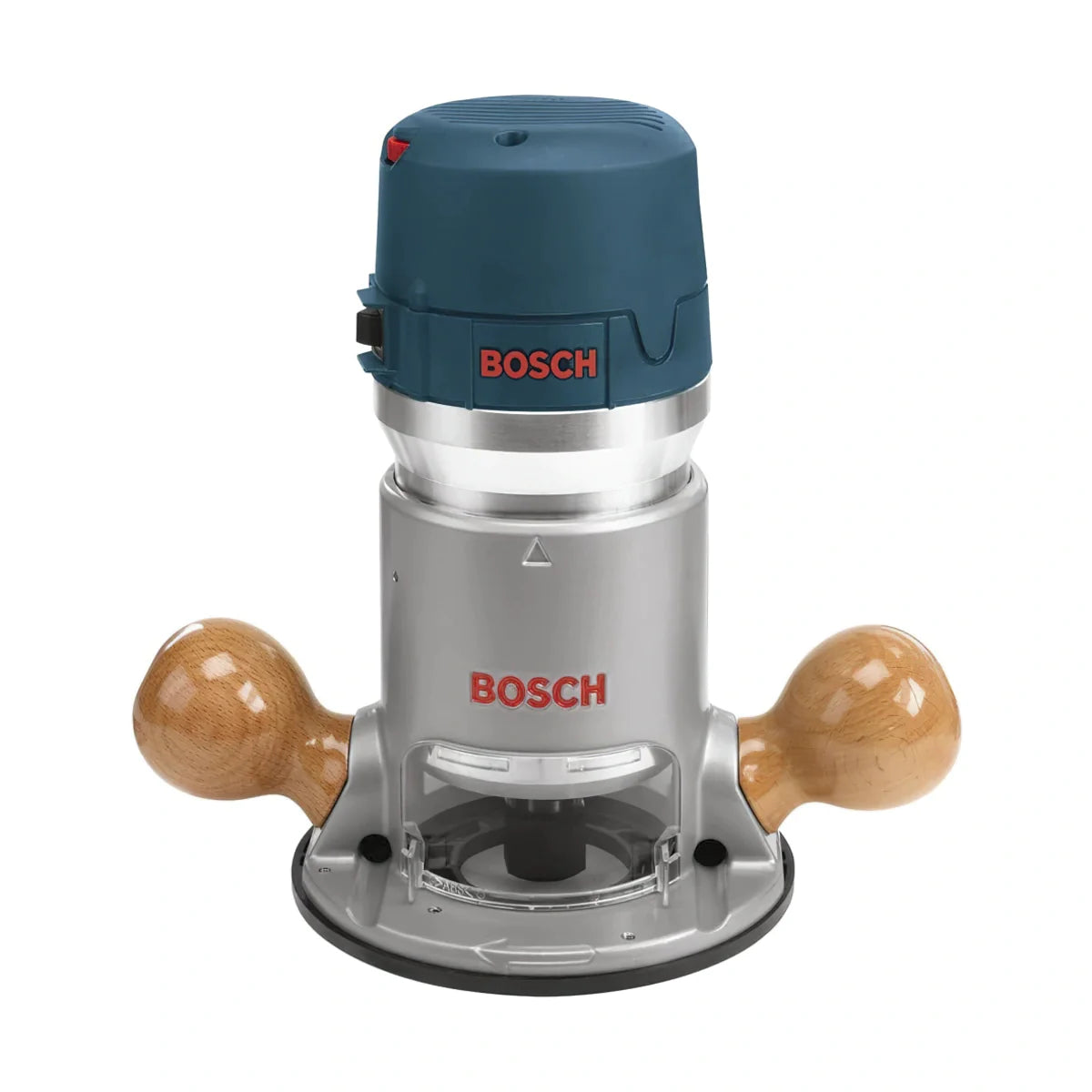

Bosch® 2.25 HP Electronic Fixed-Base Router
SKU: 1617EVS
- Overview
- Specifications
The Bosch 1617EVS 2.25 HP Electronic Fixed-Base Router has the power to get results, with a 12 Amp motor and adjustable speed settings. The variable-speed dial allows the operator to set the optimal speed. Constant Response Circuitry, the router will maintain a constant speed throughout the cut, resulting in clean, accurate product. Users can glide along the intended cutline using dovetail fixtures, templates, jigs and other guidance devices. The Bosch Precision Centering Design allows the bit to be centered with the sub-base or optional template guides.
Features:
- 12 Amp router motor
- Constant Response circuitry stabilizes start-up torque
- Adjustable speed dial (8000-25,000 RPM)
- Microfine bit-depth adjustment
- Rounded hardwood handles maximize user control
- Right or left switch location
- Fixed base has threaded holes for mounting to router table positioned in common 3-hole pattern
- Dust-sealed power switch
Includes:
1/4" S. R. Collet Chuck
1/2" S. R. Collet Chuck
16mm Shaft Wrench
Collet Nut Wrench
Chip Shield
Fixed Base
T-Handle Hex Height Adjustment Wrench
Pack of 3 10-24 Screws for Table Mounting
Motor: | 120V, 12.0A |
---|---|
Base Diameter: | 6" |
Base Opening: | 3-3/4" |
Collet Capacity: | 1/4", 3/8", 1/2", 8 mm |
Fixed-Base Depth Range: | 1-5/8" |
No Load RPM: | 8,000-25,000 |
Length: | 6" |
Width: | 10" |
Weight: | 8.3 lbs. |
