AnchorPRO Short 5/8” Miter Bar Kit

The AnchorPRO Short 5/8” Miter Bar Kit is multi-use fixturing hardware featuring two5/8” miter bars and Bows Patented AnchorPRO design. The Miter Bar design is uniquely configured to add more surface contact in the slot and generates greater hold force quickly, within just one turn of the knob. The T-Bolt and Miter Bar are designed to work together efficiently to maximize expansion quickly, and with less effort than traditional hardware. Mounts to a 5/16” * 5/8” (quickly expands to fit 20mm) Miter Slot, or a 12-19mm T-Track if using just the T Bolts. Comes with two Bow Comfortable “oversized” Ergonomic Knobs.

Features:

• Greater Expansion Range
• Faster Easier Securement
• Tightens in Less Than One Revolution
• Strong Hold
• Integrated T-Bolt for T-Track Applications
• Accommodates Variations in Miter Slots
• Knobs feature recessed nut to eliminate washers

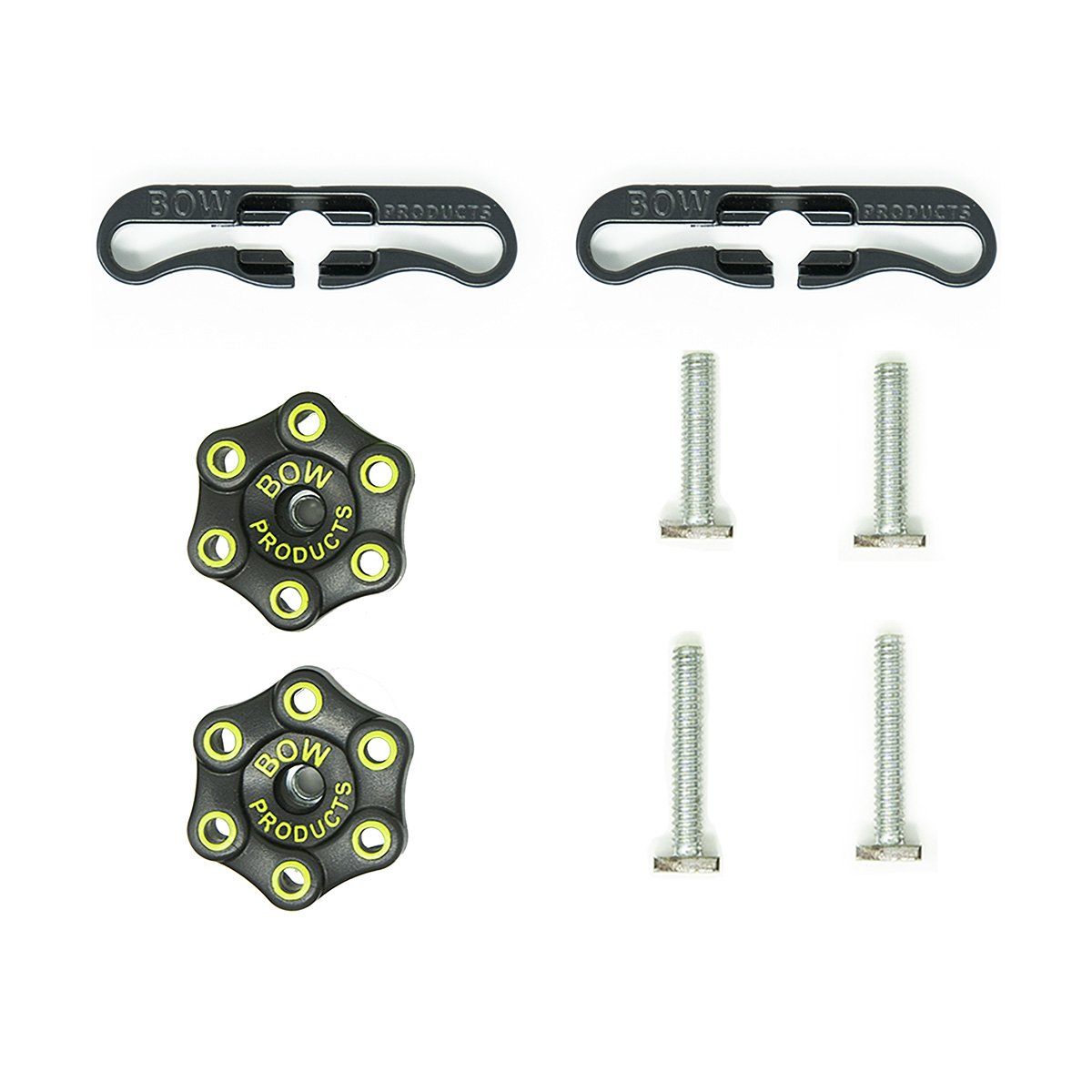

Includes:
2 - 5/8" (19mm) Short Miter Bars
2 - Bow Branded “oversized” ergonomic Chain Link Knobs
2 - 2-1/4" T Bolts (5/16 - 18)
2 - 1-1/2" T Bolts (5/16 - 18)
