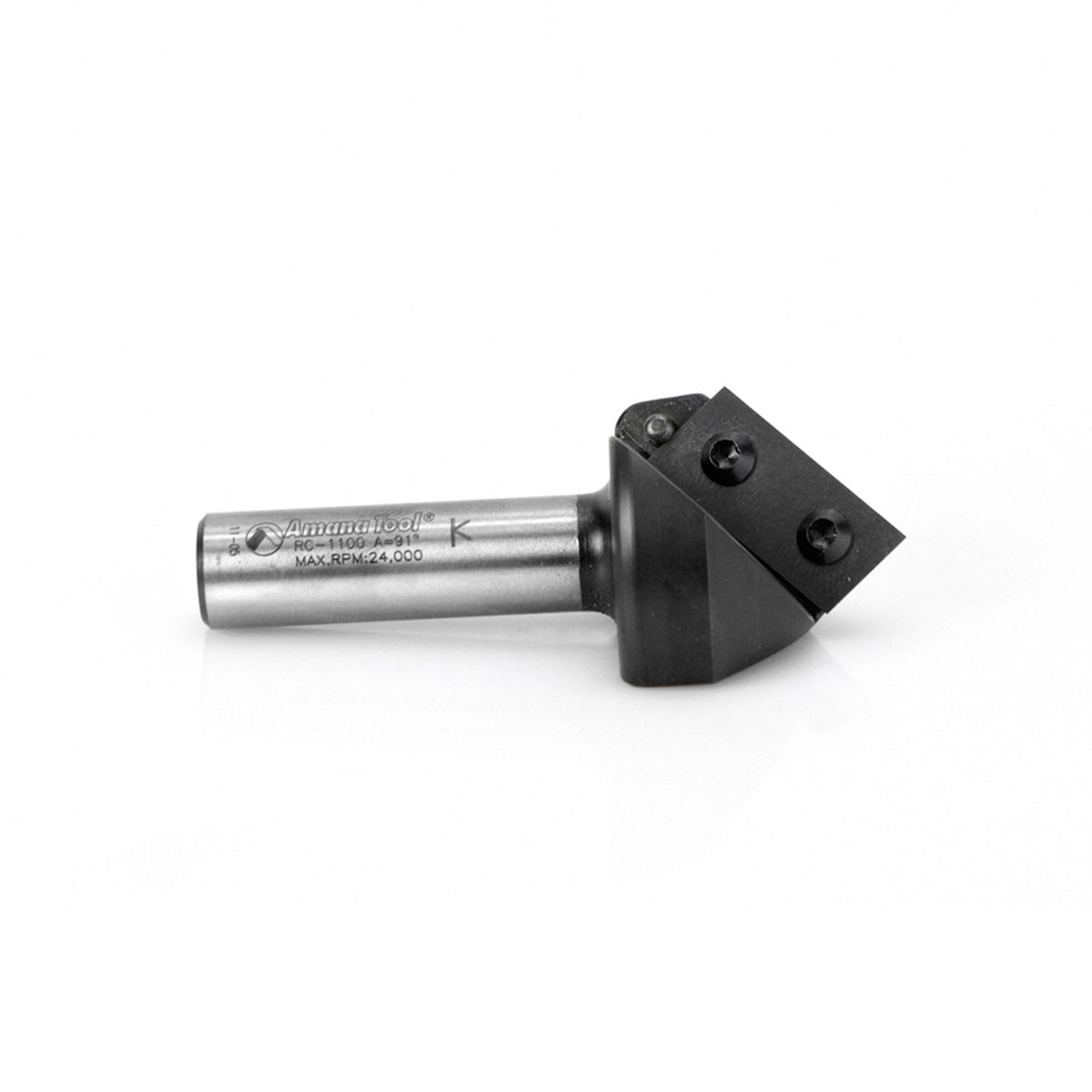

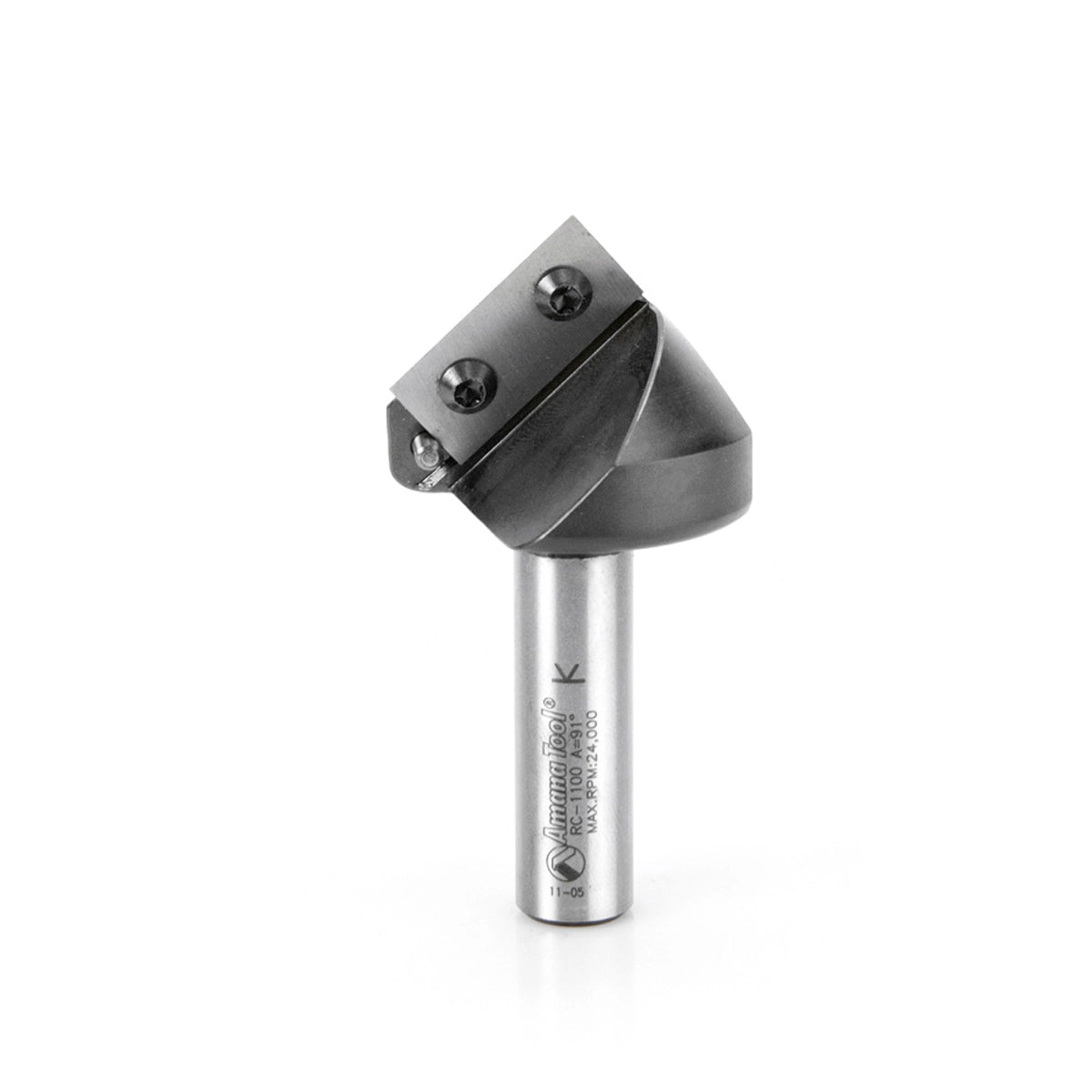

Amana Tool CNC Insert V-Groove 91 Deg x 1-1/2 Dia x 3/4 x 1/2 Inch Shank
SKU: RC-1100
| (D) Diameter: | 1-1/2" |
|---|---|
| Angle (a°): | 91° |
| a1°: | 45.5° |
| (B) Cutting Height: | 3/4" |
| B1: | 1-1/16" |
| (L) Overall Length: | 3" |
| (d) Shank: | 1/2" |
| L1: | 1-25/32" |
| Max RPM: | 18,000 |
| Flutes: | 1 |
| # of knives: | 1 |
- Overview
Overview
The innovative CNC tool design uses the highest grade carbide insert knife which allows you to get two uses out of each insert. Once the knife shows signs of wear you can rotate the insert for a brand new cutting edge. These industrial V-Groove insert router bits were especially designed for applications including Miter folds - "create the perfect joint", Signmaking and lettering.
Excellent for cutting:
- 20lbs High Density Urethane
- Acrylic
- Composites
- Composite Decking
- Foam
- Laminate
- MDF/HDF
- Melamine
- Plywood
- PVC Plastic
- Sign Board
- Solid Surface
- Veneered Plywood
- Wood
- Xanita® Board
- High Density Polyethylene (HDPE)
- Epoxy (Epoxy Resins)
- Aluminum, Brass, Bronze, Copper, Gold, Silver & Carbon Fiber (Engraving Only)
