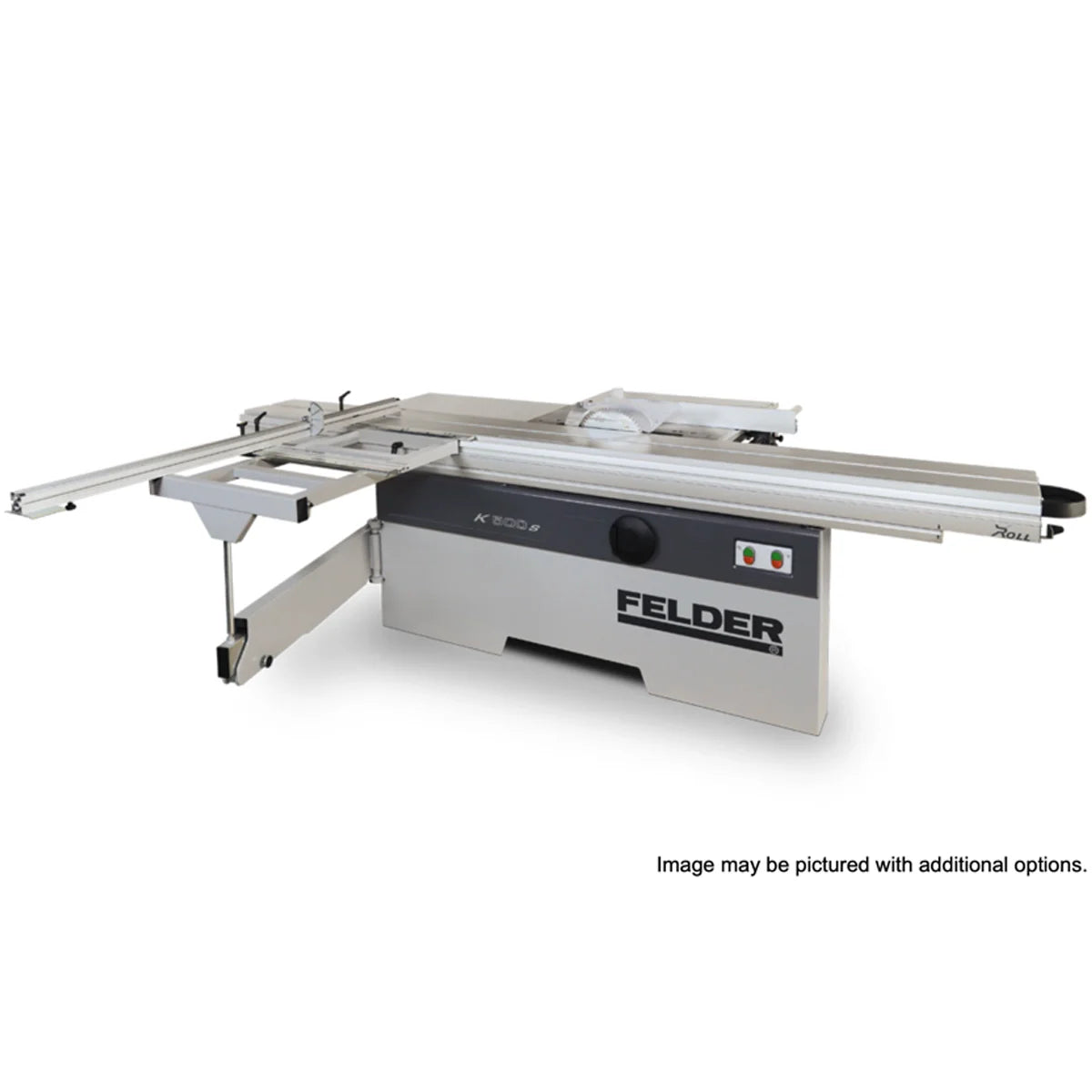

Felder K500S 1 Phase Sliding Table Panel Saw with optional Overhead saw guard

Do not be fooled by the inconspicuous exterior of the FELDER K 500 S. The sliding table saw is a true power pack, despite its size. With the innovative, tilting saw blade unit and precision double guiding for precise angle and height adjustment, the K500 S guarantees a new dimension of efficiency.

The built-in, electrically operated scoring saw blade with a Ø of 120 mm makes cuts even through materials with sensitive surfaces a breeze. At the heart of the FELDER K 500 S, the powerful circular saw unit a circular saw shaft, which allows a saw blade with up to Ø 315 mm while using of the scoring unit.

A ten year guarantee on the "X-Roll" sliding table, highest manufacturing quality and strict FELDER production standards make this sliding table panel saw reliable partner for many years to come. Stocked with a 9’ sliding table to save room and handle 4x8 sheets easily.

Features and Benefits:
• 104mm (5.0") cutting height with a 350 mm saw blade diameter
• 49" Rip capacity with solid steel bars.
• Maintenance-free "Easy-Glide" blade tilt mechanism with Easy-Glide and 6 year warranty
• Dado Capacity of 19.5 mm
• Micro adjustment on rip fence
• Overhead saw-guard with 80 mm dust port that easily swings out of the way when necessary
• Electrically driven Ø 120 mm scoring saw blade ensures tear-free cuts and is perfect for materials with a surface that easily tears off
• 2800mm (110") Sliding table with X-roll (patented) bearings , edging shoe and 10 year warranty on slider
• 51”x 25” Outrigger table to support heavy panels
• The 2600 mm long telescopic crosscut fence can be effortlessly adjusted from 90° to 45° with one flipstop
• 3.0 kW (4 HP) 230V, 60Hz, 1-phase motor with soft start

Features and specifications are subject to change.
