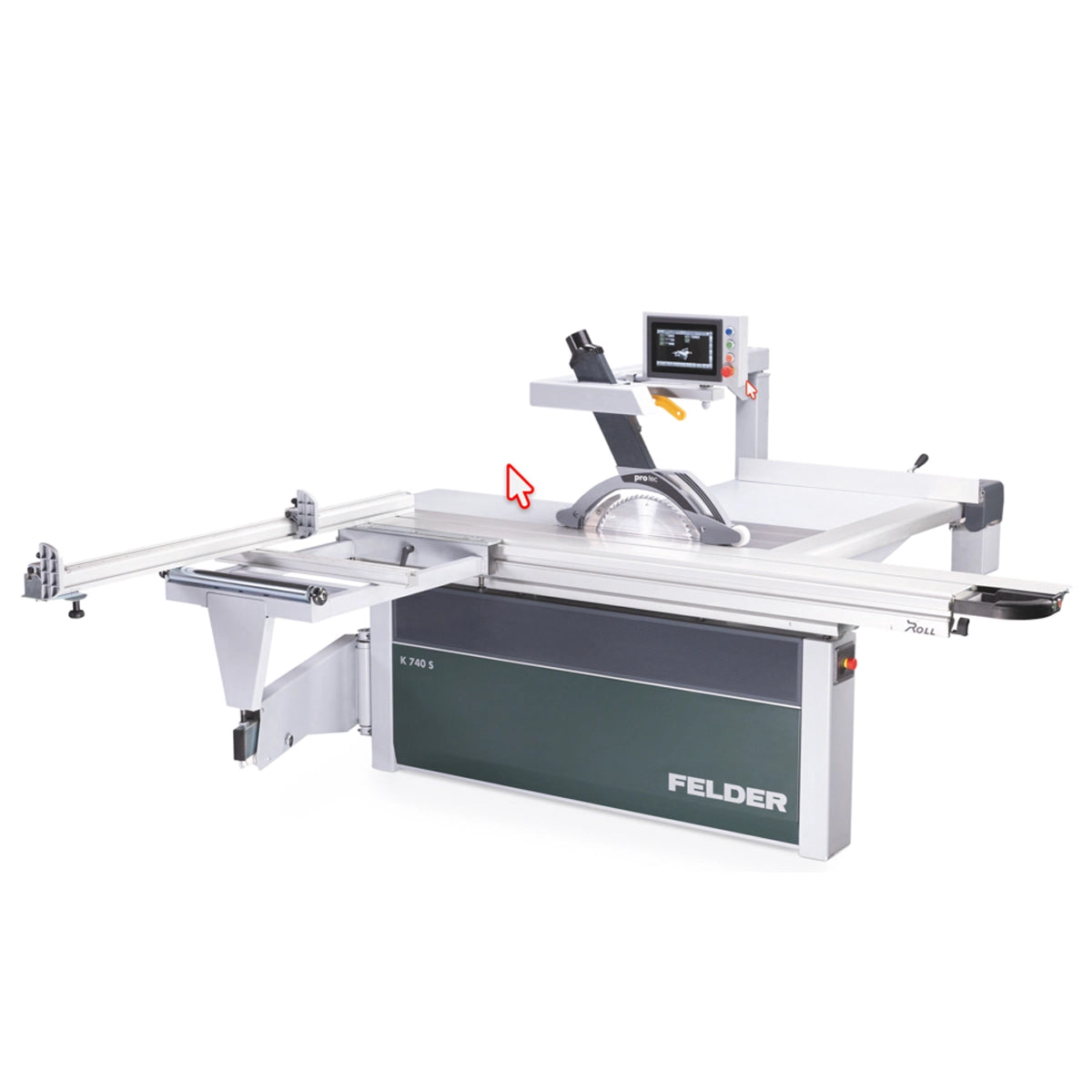

Felder K740S xmotion Sliding Table Panel Saw

A panel saw from Felder, guaranteeing your company's success!

Product highlights of the FELDER K 740 x-motion

K 740 S x-motion control with Touch function on 10" control panel at eye level
USB Port and preparation for connection to the network
Storage of the last 5 entered values

Functions:
Park position (rip fence)
Manual movement of the axes
Incremental movement of the axes
Calculator
Electric cutting height and cutting angle adjustment, position controlled from touch screen
• 140 mm cutting height with a 400 mm saw blade diameter
• 6-year guarantee on "Easy-Glide", the high-precision, force-guided, maintenance-free Felder tilting segment guide!
• "X-Roll" format sliding table with linear guides for maximum precision and durability with a 10 year guarantee
• Outrigger with workpiece roller
• Chrome-plated steel round shaft guide of the rip fence - precision for life
• Numerous configuration options
Product Highlights:
• Three-axis CNC display for cutting width, height and angle
• 104mm (5.0") cutting height with a 350 mm saw blade diameter
• 49" Rip capacity

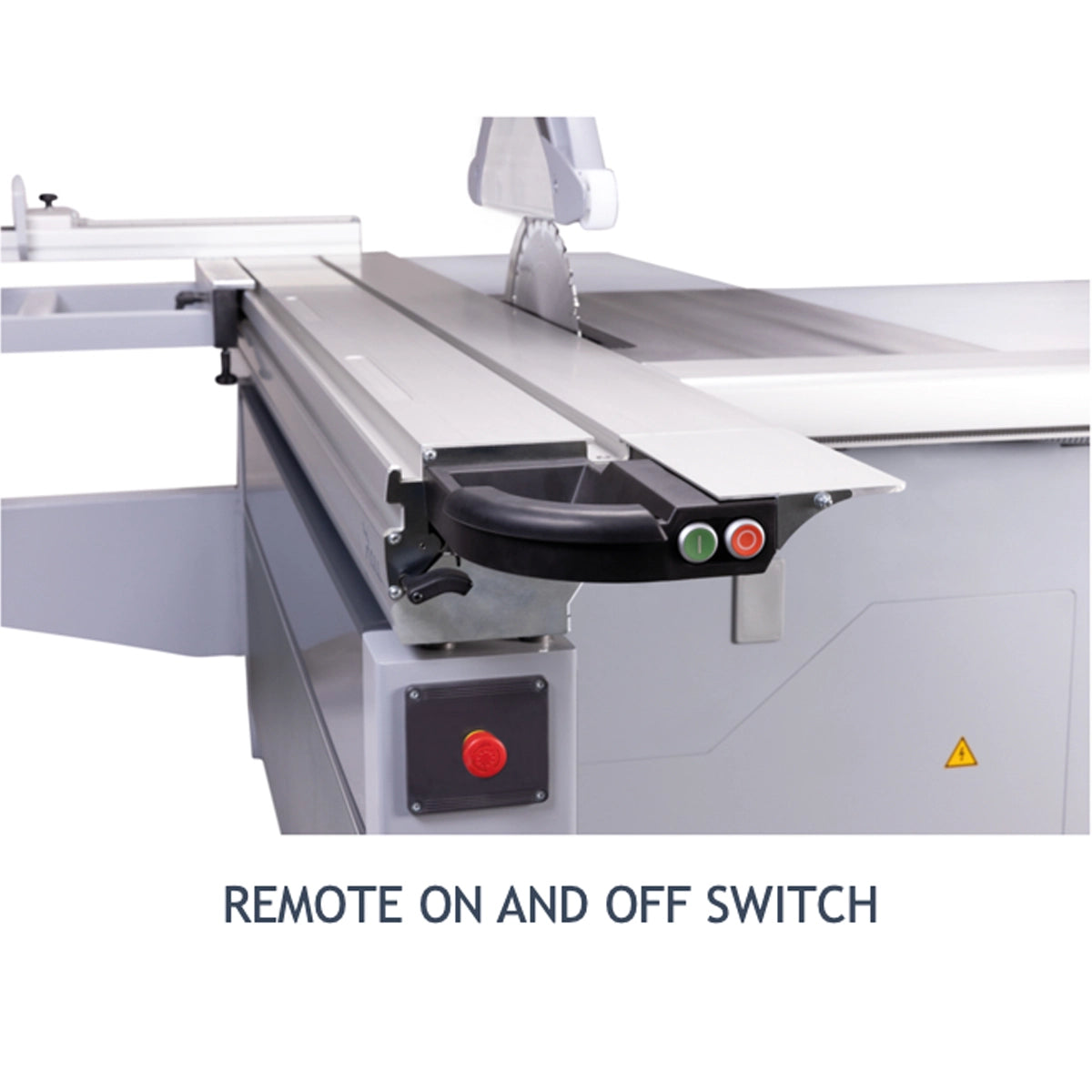

• Remote on/off at the end of the sliding table
• Maintenance-free "Easy-Glide" blade tilt mechanism
• Dado Capacity of 19.5 mm
• Digital indicator on the handwheel for saw tilt
• Overhead saw-guard with 80 mm dust port that easily swings out of the way when necessary
• Electrically driven Ø 120 mm scoring saw blade ensures tear-free cuts and is perfect for materials with a surface that easily tears off
• 3200mm (126") Sliding table with X-roll (patented) bearings. 10 year warranty on slider
• 45”x 25” Outrigger table with Digital crosscut fence stop for first 74”, extendable to 126"
• The 2600 mm long telescopic crosscut fence can be effortlessly adjusted from 90° to 45°
• 7.5kW (10HP) 230V, 60Hz, 3-phase motor with soft start

Features and specifications are subject to change.

Sliding Table
