Domino XLConnector Cross Anchor

Connect even quicker, and release if necessary. The Domino Connector revolution.

Features and Benefits:

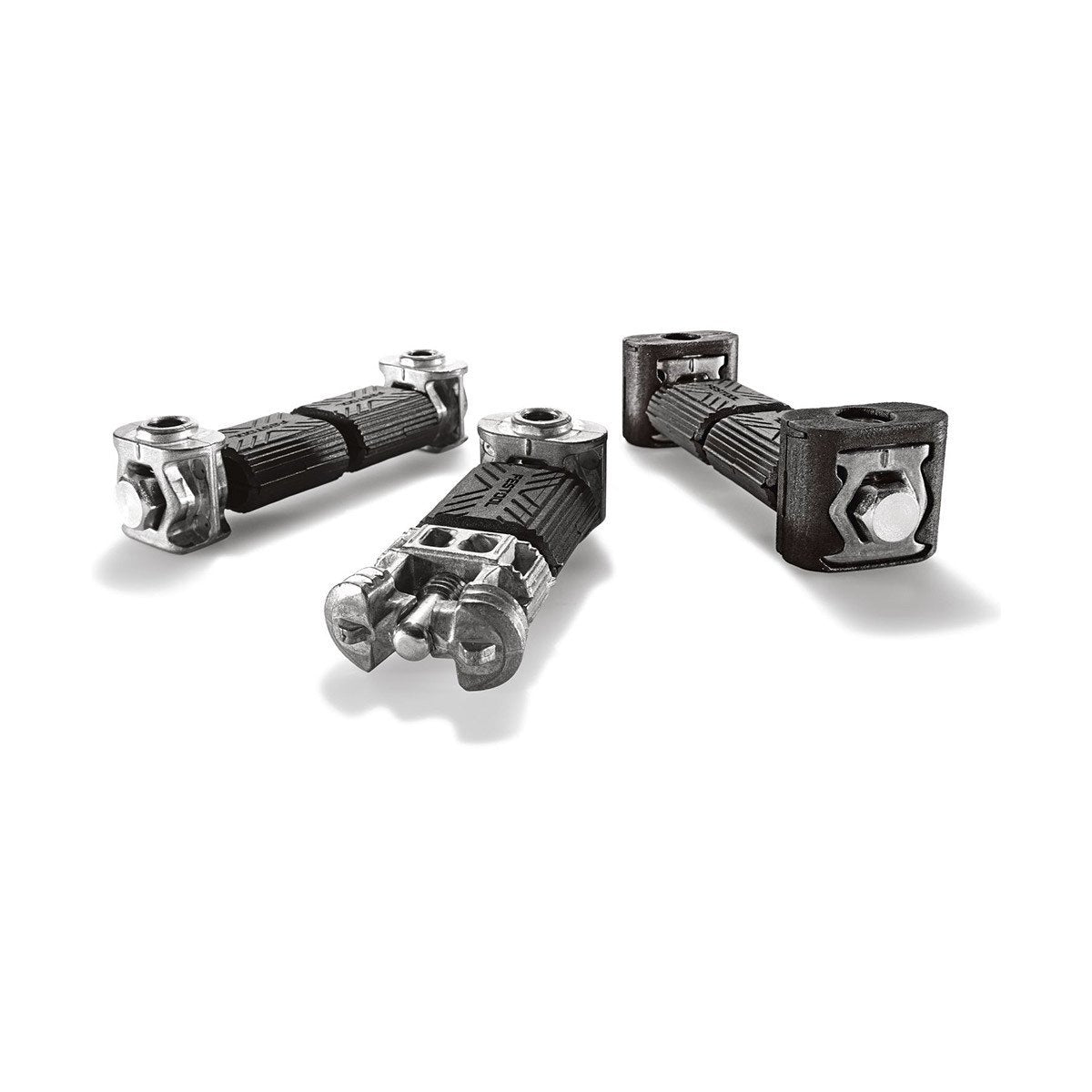

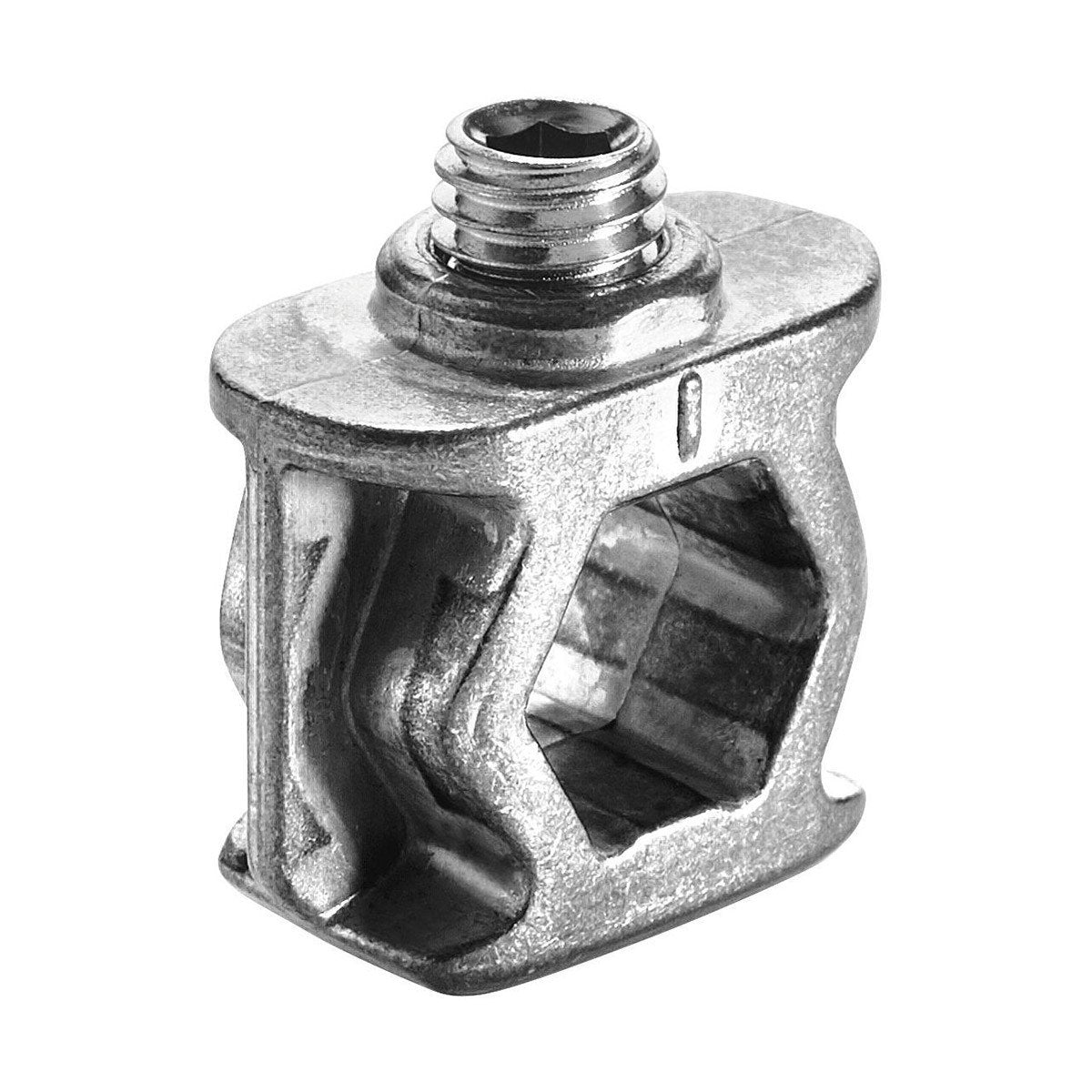

• The SV-QA D14 cross anchor combines with the SV-AB D14 anchor bolt and the SV-SA D14 split anchor to form the corner connector, or combines with the SV-DB D14 double-headed bolt and optionally with the SV-V D14 widener to form the flat connector. All parts are available either in the DOMINO SV-SYS D14 DominoVerb connection Systainer, as an EV/32 set, as an FV/16 set, or individually as individual parts
• The corner and flat connector system for the Domino XL DF 700 joining machine enables stable connections that can be separated again at a material thickness of 30 mm or higher

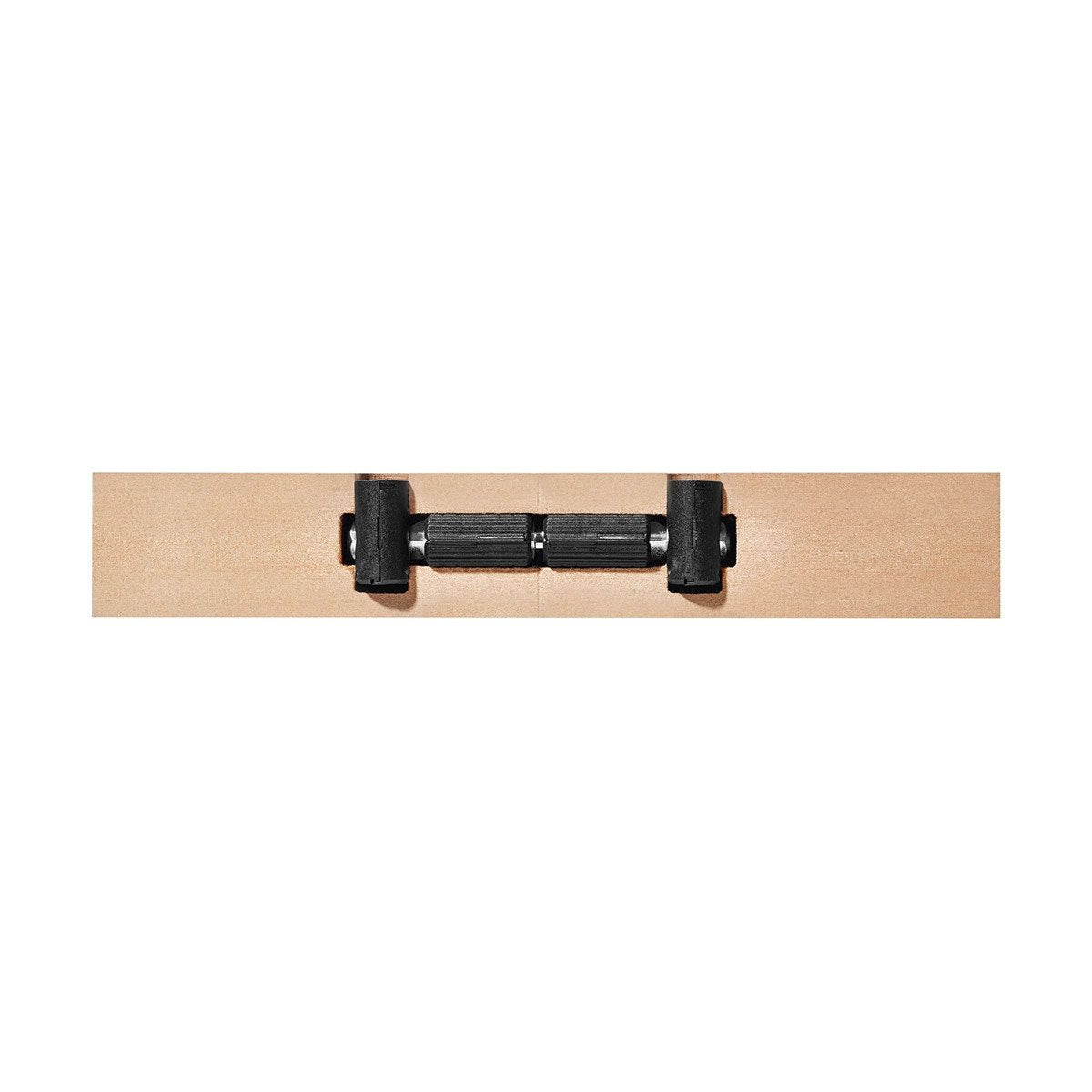

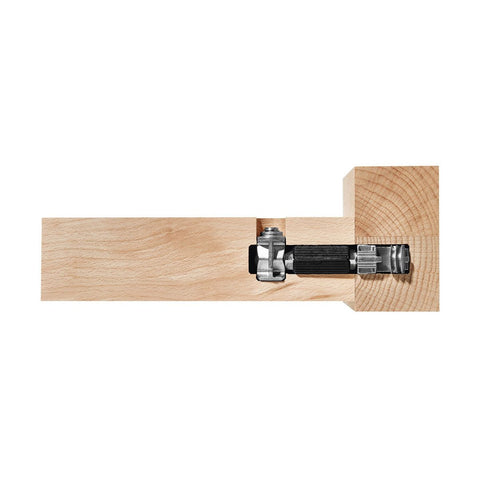

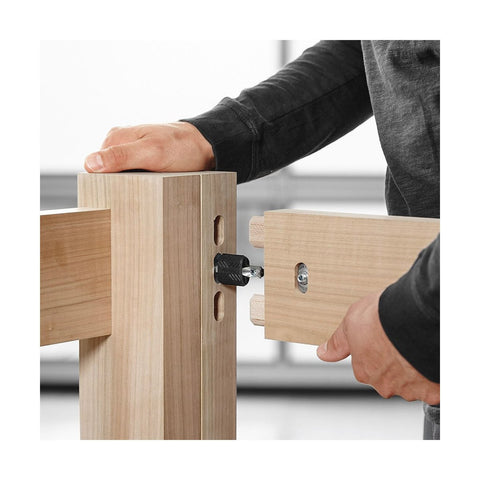

• For frame and rack joints (corner connectors) and board connections (flat connectors) that will impress you with extreme precision and stability as well as maximum flexibility and unique efficiency

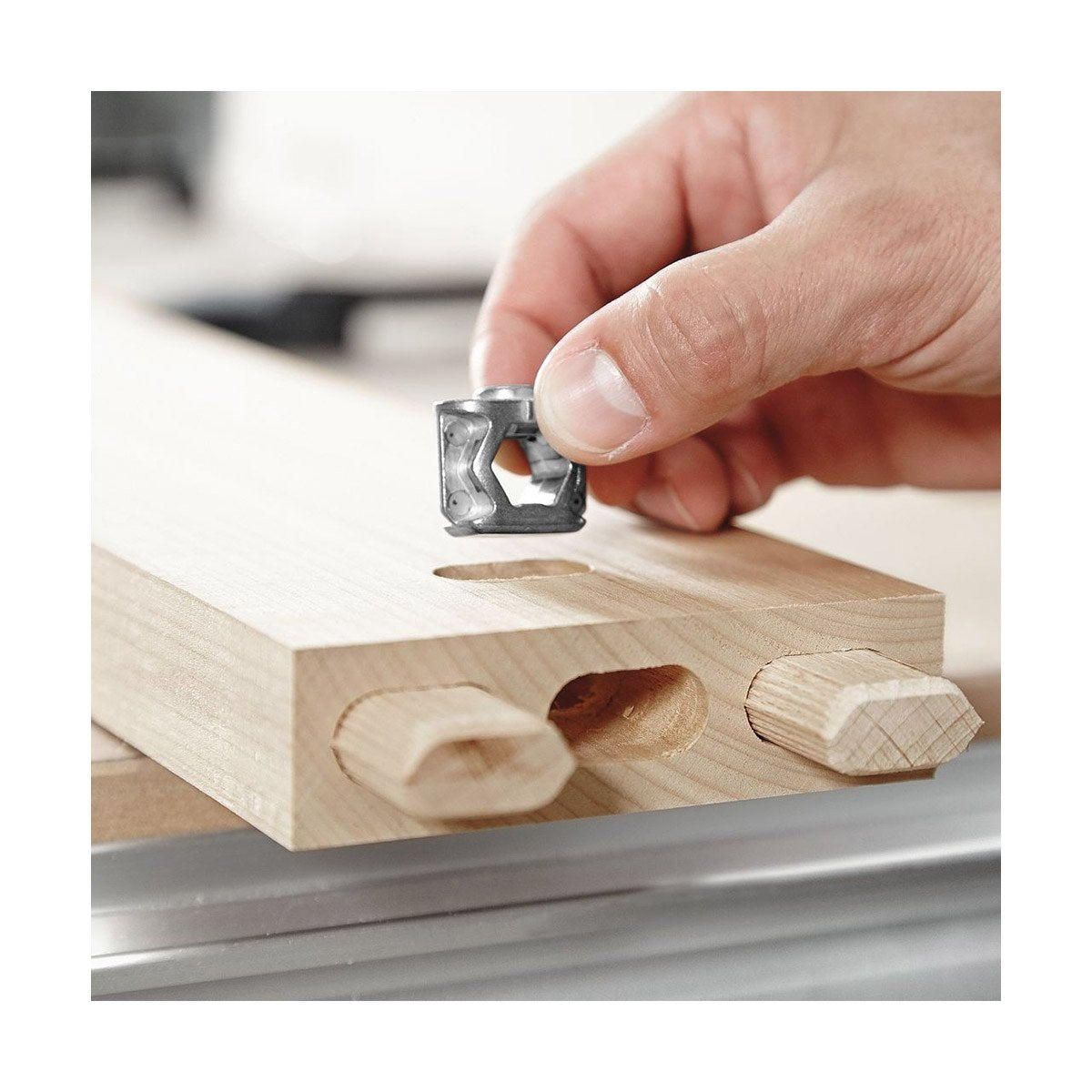

• Extremely quick thanks to simple milling using machine stops or pencil markings. No template or other accessories required

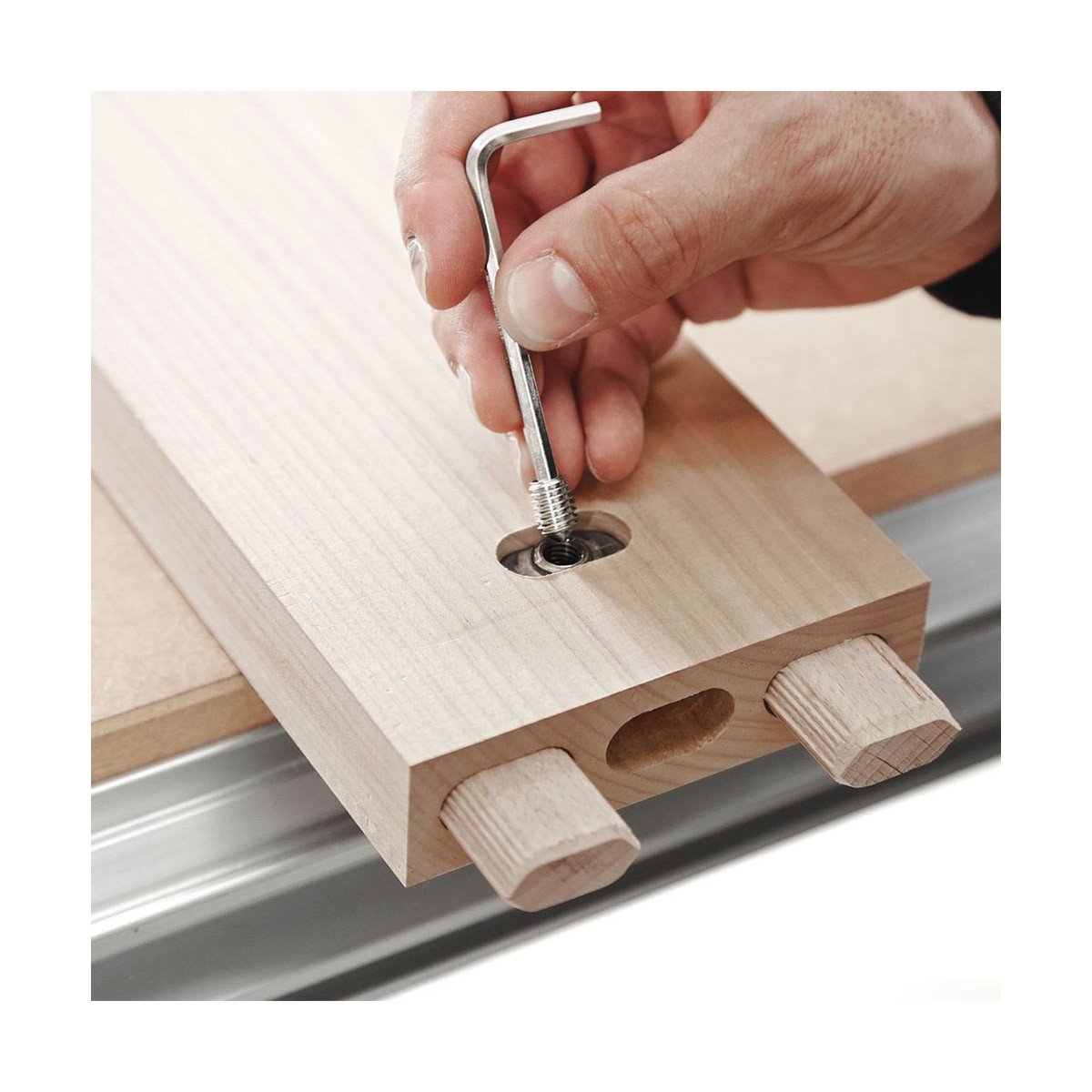

• Extremely stable with dowel and clamping element for strong connections. High pulling and tightening distance. Extremely high pull-out and load forces

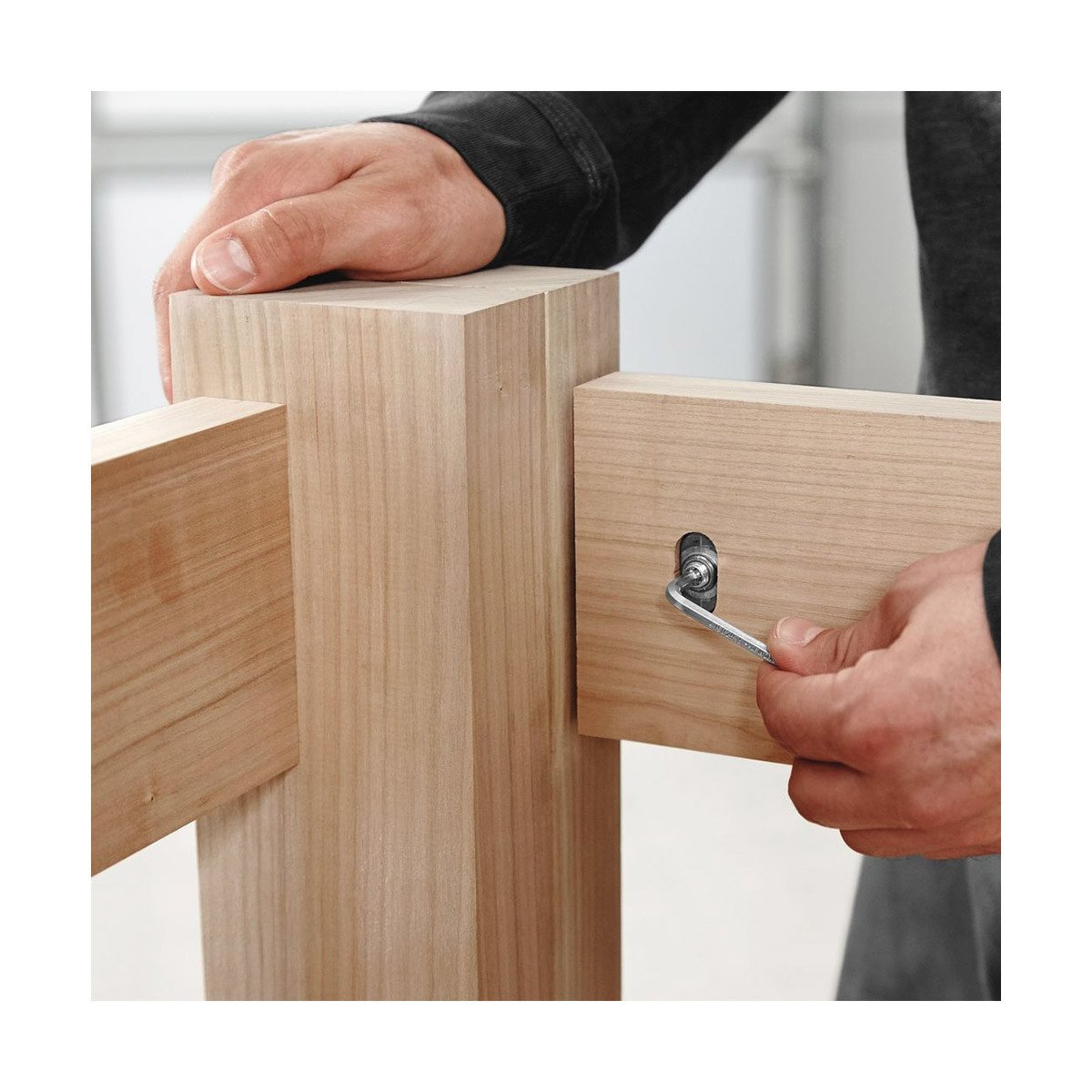

• Extremely flexible and can be detached again quickly if necessary
• With cover caps in three colours for a high-quality corner connection appearance

Box of 32 pieces

Requires 14mm Domino XL cutter
