DOMINO Connector Assortment KV-SYS D8

A selection of Domino connectors for the Festool Domino DF 500

The new DOMINO connectors make knock-down joinery simple and stable. Quickly and easily assemble, separate, and reassemble your work for increased flexibility across a wide range of applications – from corner panel joints to center panel joints to joints between a series of holes. For increased stability, speed, and flexibility.

Features:

• The new DOMINO basic structure connectors and furniture connectors can be positioned simply and universally – in combination with DOMINO or a series of holes.
• Because of its high tolerance compensation and high stability, the detachable DOMINO jointing system enables seamless assembly and disassembly of a piece of furniture – in the workshop as well as with the customer.
• All joints are simple and quick to machine using the DOMINO DF 500 joiner. No additional special machine is required.
• The connectors' large tightening distance and long bolts make furniture assembly significantly easier. Cupboard assembly is therefore no problem, and you can do it easily on your own.
• Routing and cutting tolerances of up to 1.4 mm are compensated for without problems by the fixture.
• The clever DOMINO system enables very simple and precise positioning of joints, thereby rendering additional stops and positioning aids unnecessary. For working efficiently and quickly.

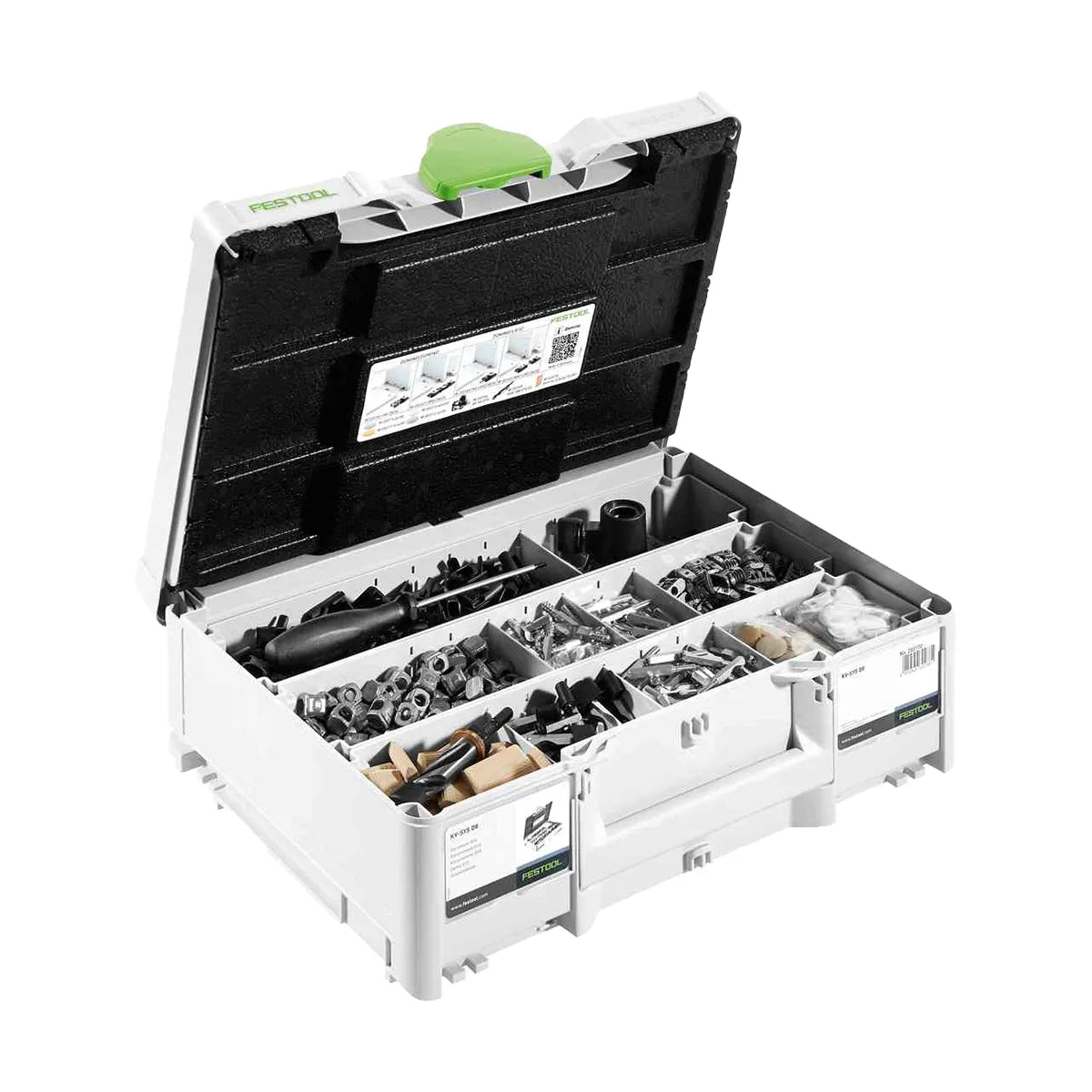

• All DOMINO structure connectors and furniture connectors quickly at hand and cleanly packed in the Systainer³

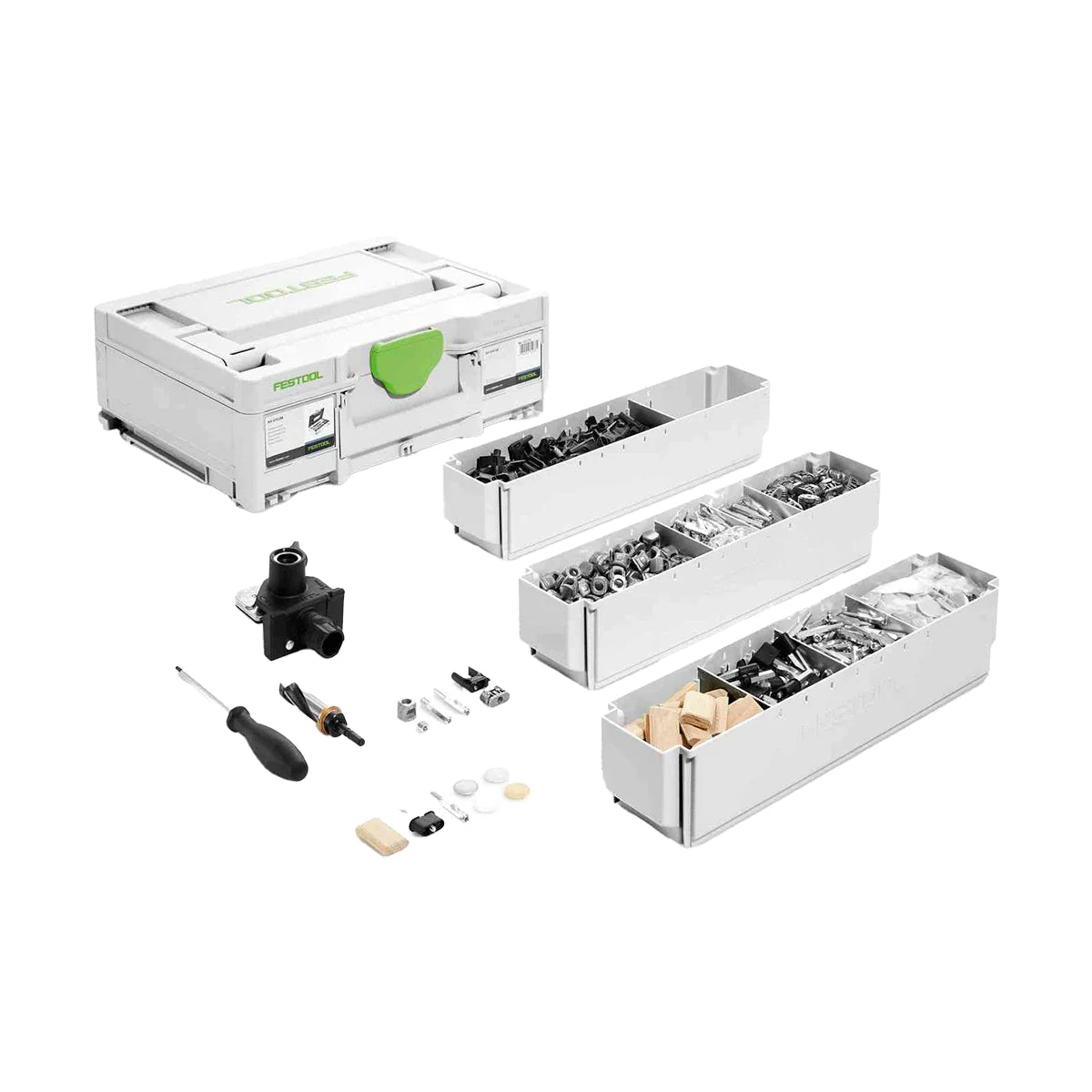

Includes:
70x DOMINO/DOMINO KV D8 basic structure connector
20x DOMINO/LR32 KV-LR32 D8 basic structure connector
10x DOMINO/DOMINO MSV D8 center panel connector
10x DOMINO/LR32 MSV-LR32 D8 center panel connector
50x dark brown cover caps (KV-AK D15 brown)50 dark brown cover caps (KV-AK D15 brown)
50x silver cover caps (KV-AK D15 sliver)
50x white cover caps (KV-AK D15 white)
50x grey cover caps (KV-AK D15 grey)
20x DOMINO D 8 x 36 mm
BS-KV D15 drill template
KVB-HW D15 CE hinge location cutter
Screwdriver
Systainer SYS3 M 137
