Q3 Platinum T-Series HVLP System Gravity Feed - UM_FMI

Fuji Spray

Q3 Platinum T-Series HVLP System Gravity Feed

SKU: 2893-T75G

order today only 1 left in stock
$1,479.00

T

Free Shipping

Click Checkmark for Details

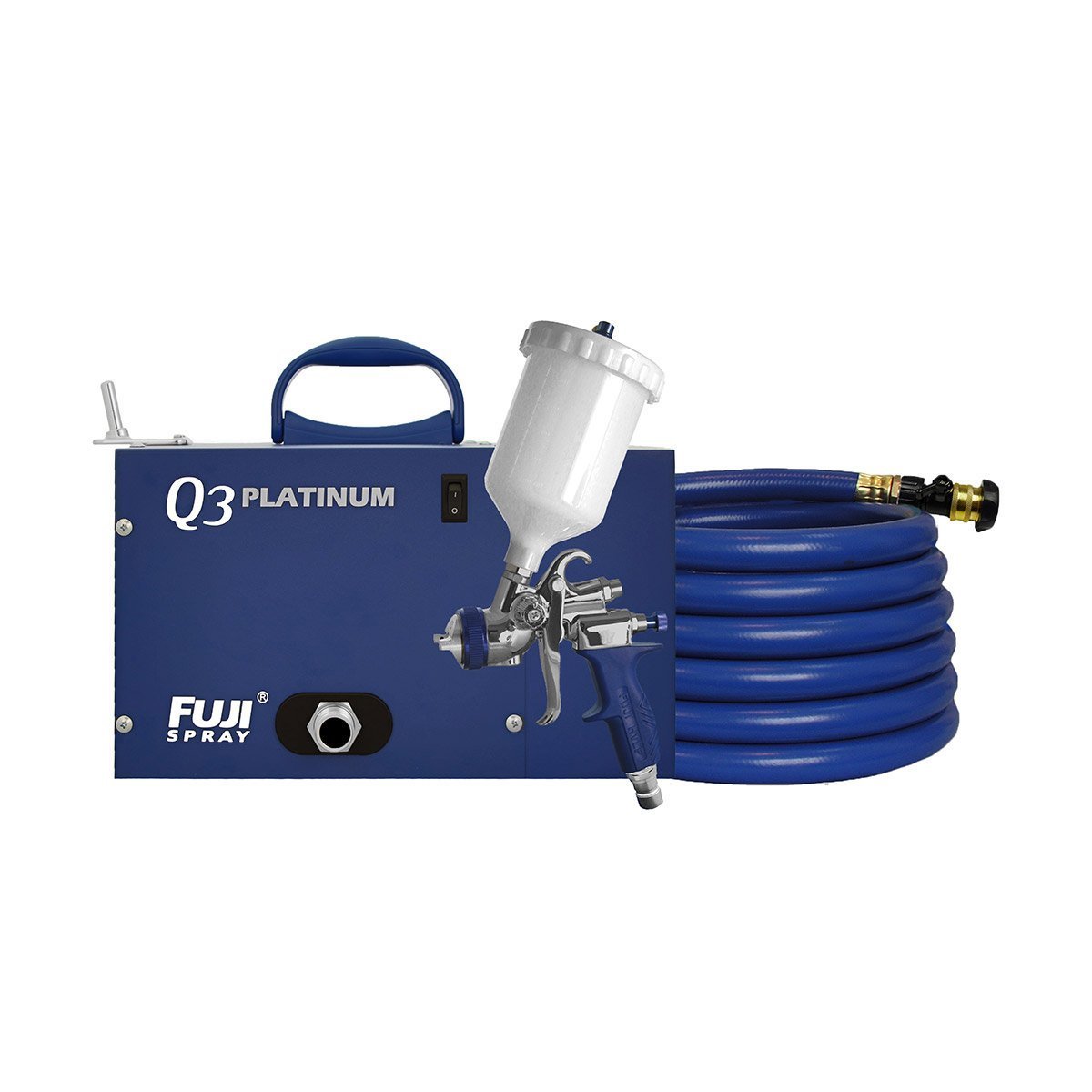

Fuji Q3 Platinum™ T-Series HVLP System Gravity Feed

SKU: 2893T75G

The Q Platinum™ Series features many new technological advancements. Incorporated into its design is a proprietary Heat Dissipation Box (HDB). The HDB expels excess heat from the turbine resulting in much cooler operating temperatures. Less heat translates to longer motor life for your turbine. Because the hot air is routed to the rear of the turbine and passes through 60 holes the process is silent.

The Q3 Platinum™ system has the added feature of extensive noise-reduction. The Fuji noise reduction method is patented in the USA. Research & Development was conducted by engineering staff at Carleton University in Canada under a partial Government grant program. Noise is reduced by over 50% making this the quietest 3-stage turbine available today. The T-Model Gravity Feed Spray Gun (USA Patented) is a Non-Bleed with a side Pattern Control Knob allows the user to easily adjust the fan pattern. with Stainless Steel Fluid Components. Plus extra features such as an Air Control Valve and a High-Efficiency Air-cap for even less over spray.

The T-Series Gravity Gun now features a 600cc nylon gravity cup and lid. The lid on this nylon cup provides a perfect seal with no gasket required.

The Q3 Platinum™ 3-stage turbine develops approximately 6.5 psi. This system is ideal for Cabinet Makers and Furniture Refinishers. Perfect for any type of fine-finishing.

At 15ft the Q3 Platinum™ Turbine is only 62 dba, at 20ft is it 59 dba. Normal Conversation is 60 dba..

System Includes:
Q series 3 Stage Turbine
T-Series Gravity Feed Spray Gun
1.3mm Air Cap Set
25 Foot (7.62m) Hose
Quick Connect Coupler
Air Control Valve
Viscosity Cup
Cleaning Brush
Wrench
Manual

Turbine Dimensions 14.87" x 11.5" x 9" (37.7 cm x 29.2 cm x 20.9 cm)
Weight 30.6 lbs. (13.9 kg.)
Voltage/Hz 110 - 120 volt / 60Hz
Amps 12 Amp
PSI 6.5
Warranty Limited 24 Month Parts and Labor
