Mini-Mite 4 Platinum T-Series HVLP System Bottom Feed - UM_FMI

Fuji Spray

Mini-Mite 4 Platinum T-Series HVLP System Bottom Feed

SKU: 2904-T70

order today only 3 left in stock


Free Shipping

Click Checkmark for Details

Fuji Mini-Mite 4 Platinum™ T-Series HVLP System Bottom Feed

SKU: 2904T70

The New Mini-Mite 4 Platinum™ system uses the most powerful 4-stage Turbine on the market (same as the Q4 Platinum™). This system is recommended for those who want the extra power available - a full 9.0 psi. As with the Mini-Mite 3 Platinum™, there is no noise reduction feature, so this should be taken into account if noise level is a factor. The T-Model Bottom Feed Spray Gun (USA Patented) is a Non-Bleed with a side Pattern Control Knob (to adjust the size of the fan pattern) with Stainless Steel Fluid Components. Plus extra features such as an Air Control Valve and a High-Efficiency Air-cap for even less over spray.

The Platinum™ series is built with the Fuji Spray Heat Dissipation Box™. See below for the benefits of this technology.

The Fuji Spray Heat Dissipation Box™

Fuji Spray has designed a unique method of removing any heat build up from the Turbine case. Excess heat is channeled to a Heat Dissipation Box™ located at the rear of the case.
Because the hot air is dissipated evenly through an optimum surface area with 60 holes, there is no added hiss or loud whistling noise. There is also no blowing around of dust.
The benefits of a cooler running unit results in a longer life for your Turbine motor compared to standard Turbines

Spray cabinets, furniture, autos or pianos - in fact, anything wood or metal. A powerful, portable system for all fine-finishing.

The new T-Series spray guns deliver an enhanced spray pattern for exceptional performance. An exclusive side mounted pattern control knob allows the user to easily adjust the fan pattern. The new sleek design is ergonomic and well balanced. Overall the T-Series is 20% lighter which allows for easy maneuvering and less fatigue on the operator.

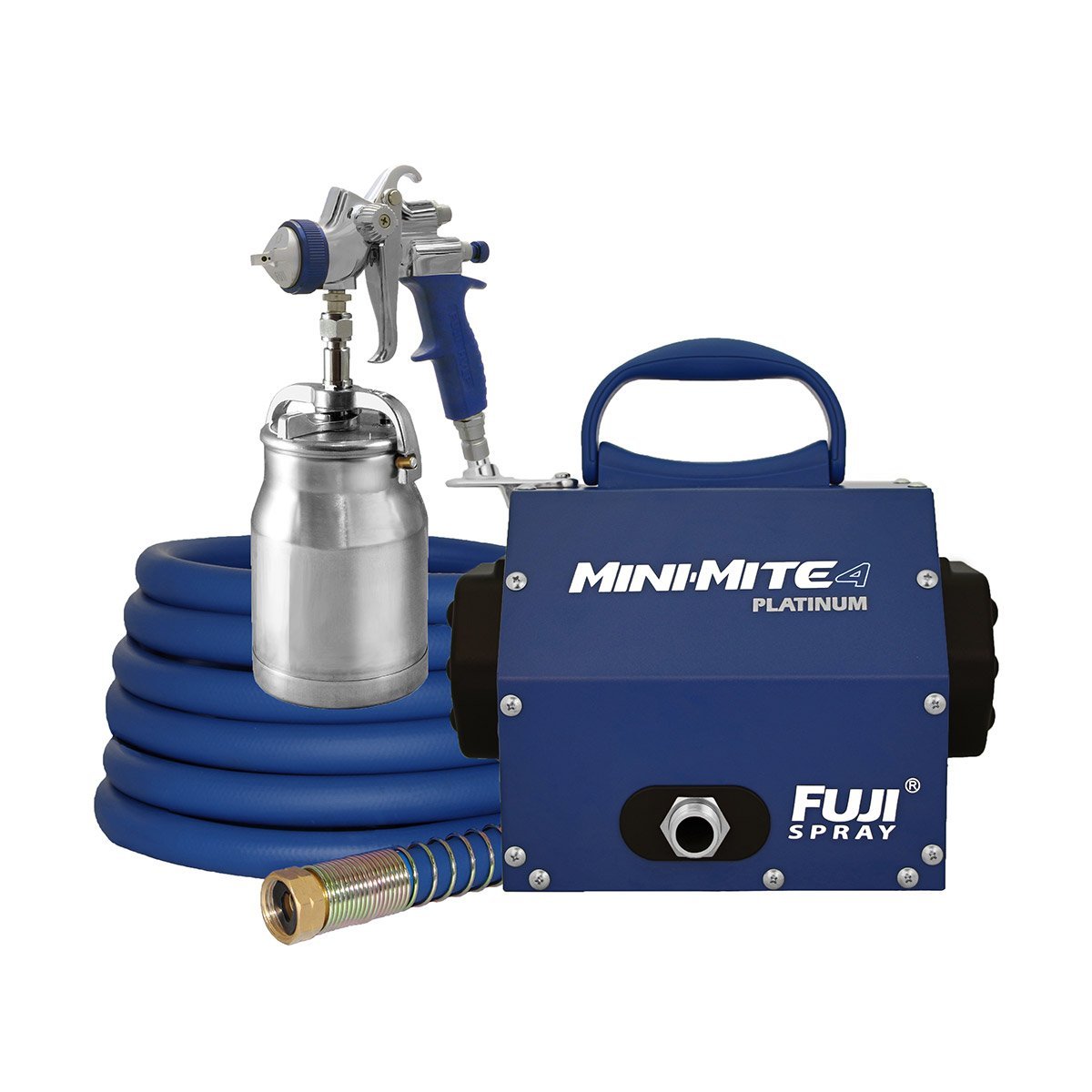

What's included with the Mini-Mite 4™ T-Series System?

Mini-Mite 4 Stage Turbine
T-Series Bottom Feed Spray Gun
1.3mm Air Cap Set
25 Foot (7.62m) Hose
Quick Connect Coupler
Air Control Valve
Viscosity Cup
Cleaning Brush
Turbine Dimensions 12" x 8.6" x 8.1" (30.5 cm x 21.8 cm x 20.6 cm)
Weight 23.6 lbs. (10.7 kg.)
Voltage/Hz 110 - 120 volt / 60Hz
Amps 13 Amp
PSI 6.5
Warranty Limited 24 Month Parts and Labor
