Q4 Platinum T-Series HVLP System Bottom Feed - UM_FMI

Fuji Spray

Q4 Platinum T-Series HVLP System Bottom Feed

SKU: 3004-T70

order today only 3 left in stock
$1,719.00

T

Free Shipping

Click Checkmark for Details

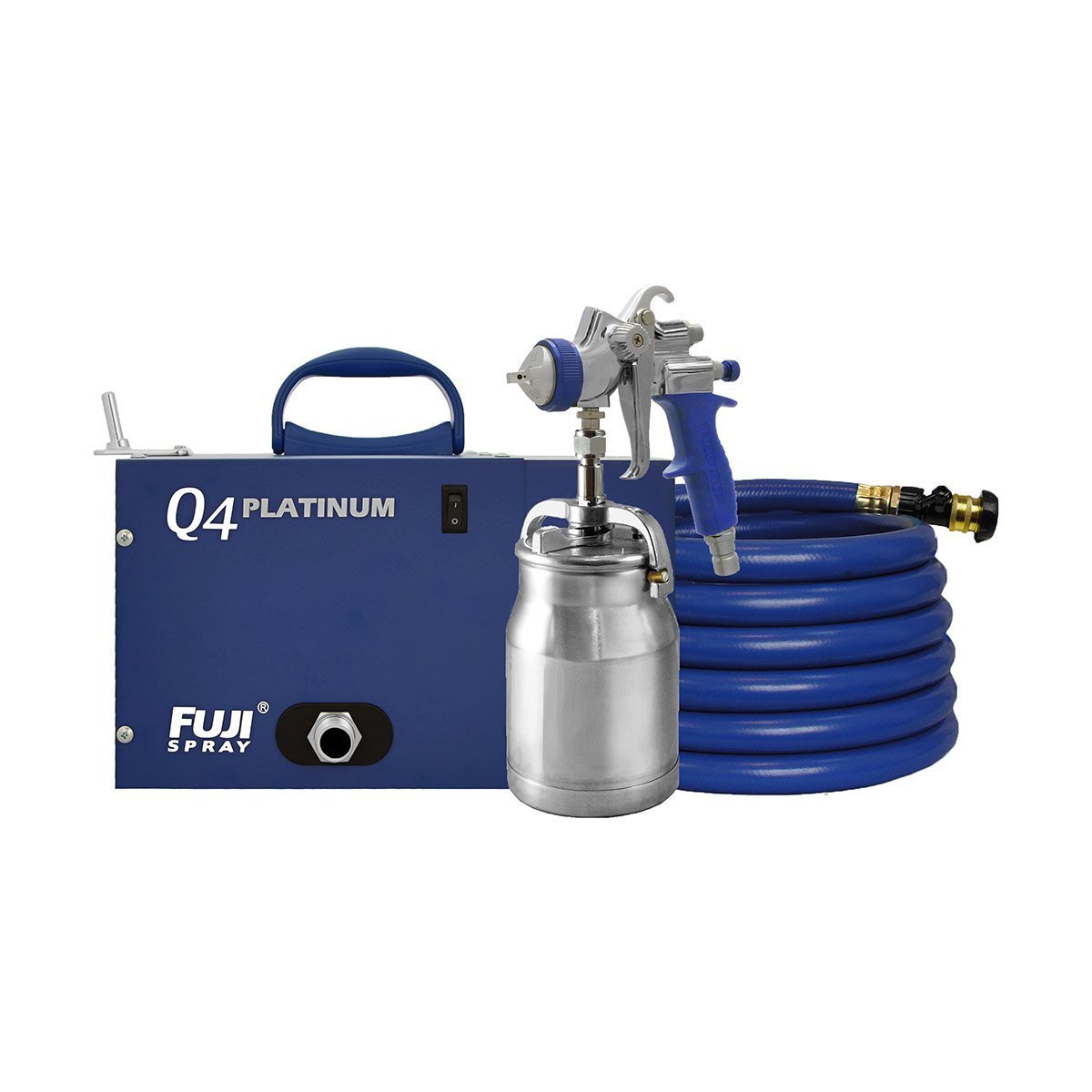

Fuji Q4 Platinum™ T-Series HVLP System Bottom Feed

SKU: 3004T70

The Q Platinum™ Series features many new technological advancements. Incorporated into its design is a proprietary Heat Dissipation Box (HDB). The HDB expels excess heat from the turbine resulting in much cooler operating temperatures. Less heat translates to longer motor life for your turbine. Because the hot air is routed to the rear of the turbine and passes through 60 holes the process is silent.

The Q4 Platinum™ is for Paint Contractors, industrial and commercial refinisher’s looking for a powerful 4-stage system that can spray a variety of different material at ease. The Q4 Platinum™ 4-stage turbine develops approximately 9psi, allowing for less thinning of paints than a 3 or 2 stage Turbine. The Q4 Platinum™ Turbine is perfect for fine-finishing of cabinets, furniture, as well as medium to heavy painting projects. The T-Model Bottom Feed Spray Gun (USA Patented) is a Non-Bleed with a side Pattern Control Knob allows the user to easily adjust the fan pattern. with Stainless Steel Fluid Components. Plus extra features such as an Air Control Valve and a High-Efficiency Air-cap for even less over spray.

At 15ft the Q4 Platinum™ Turbine is only 61 dba, at 20ft it is 58 dba. Normal Conversation is 60 dba.

The new T-Series spray guns deliver an enhanced spray pattern for exceptional performance. An exclusive side mounted pattern control knob allows the user to easily adjust the fan pattern. The new sleek design is ergonomic and well balanced. Overall the T-Series is 20% lighter which allows for easy maneuvering and less fatigue on the operator.

System Includes:
Q Series 4 Stage Turbine
T-Series Bottom Feed Spray Gun
1.3mm Air Cap Set
25 Foot (7.62m) Hose
Quick Connect Coupler
Air Control Valve
Viscosity Cup
Cleaning Brush
Wrench
Manual

Turbine Dimensions 14.87" x 11.5" x 9" (37.7 cm x 29.2 cm x 20.9 cm)
Weight 31.2 lbs. (14.1 kg.)
Voltage/Hz 110 - 120 volt / 60Hz
Amps 13 Amp
PSI 9.0
Warranty Limited 24 Month Parts and Labor
