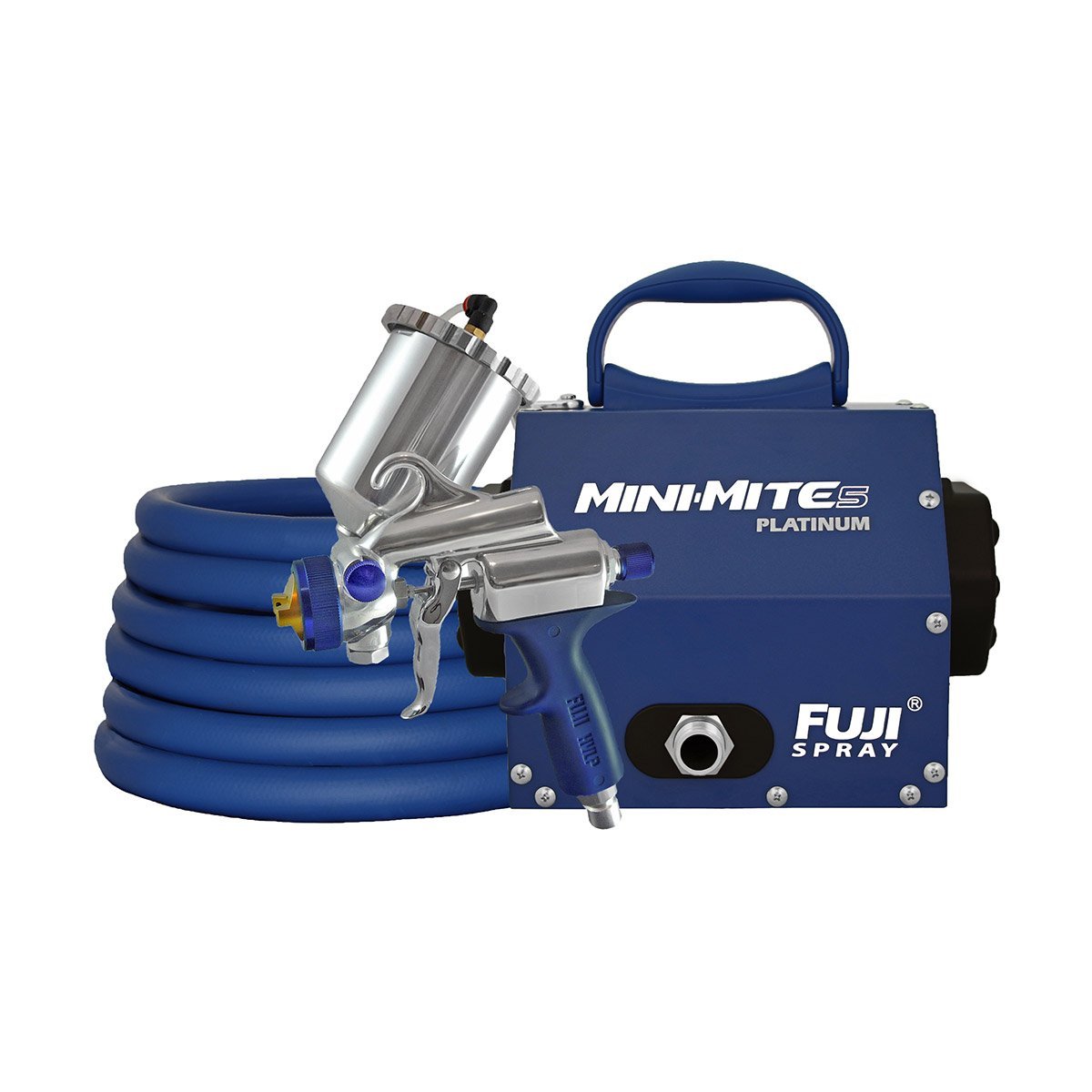

Mini-Mite 5 Platinum XPC-Series HVLP System Gravity Feed

Introducing the Ultimate Fuji Mini-Mite Turbine!

The Fuji Spray Mini-Mite 5 Platinum Turbine with its powerful 5-stage motor producing approximately 9.5psi is the latest addition to the Fuji lineup. The extra power allows for less thinning of viscous paints and achieves finer atomization.

What's new in the Fuji Mini-Mite Platinum™ Series?

The Fuji Spray Heat Dissipation Box™

Fuji Spray has designed a unique method of removing any heat build up from the Turbine case. Excess heat is channeled to a Heat Dissipation Box™ located at the rear of the case.

Because the hot air is dissipated evenly through an optimum surface area with 60 holes, there is no added hiss or loud whistling noise. There is also no blowing around of dust.

The benefits of a cooler running unit results in a longer life for your turbine motor compared to standard turbines.

Fuji Spray Noise Reduction Covers™

The Mini-Mite™ Platinum Turbines are equipped with a method to reduce noise. The Noise Reduction Covers™ house the Filters. Ambient air is entrained only from the rear effectively removing any Direct Sound Paths. Air is drawn in through a large Rear Aperture and through specially designed 'Finger Slots' for optimum performance. The G-XPC™ non-bleed Gravity Spray Gun also features an exclusive side Pattern Control Knob to adjust the Fan Size and comes installed with a 1.4mm Air Cap (High-Efficiency™) which is best for fine finishing with lacquers, enamels, polyurethanes, latex, water based coatings and more.

The G-XPC™ gun features the side mounted 400cc Gravity Cup and the tilt feature which easily allows the operator to spray in any direction including upwards. The angle of the Gravity Cup 400cc (.85 Pint) can be adjusted. This cup is now pressurized so you have the full range of spraying available to you.

PSI: The 5-stage Turbine develops approximately 9.5 PSI.

Additional power allows the user to apply heavier coatings and thicker viscosity finishes faster and with less time spent on preparation of materials.

Five Bonus items included inside every Mini-Mite 5 Platinum package - 5 for 5.

• 6' Whip Hose
• Wet Film Gauge
• 19 piece Spray Gun Cleaning & Maintenance Kit with Lubricant
• Extra Turbine Filter
• "Always Measure" Booklet - Record your material preparation and results

System Includes:
Mini-Mite 5 Stage Turbine
XPC-Series Gravity Feed Spray Gun
1.4mm Air Cap Set
25 Foot (7.62m) Hose
Quick Connect Coupler
Air Control Valve
Viscosity Cup
Cleaning Brush
Wrench
Manual
