Q3 Platinum XPC-Series HVLP System Gravity Feed - UM_FMI

Fuji Spray

Q3 Platinum XPC-Series HVLP System Gravity Feed

SKU: GXPC-2893

Low stock in Winnipeg
Your Order may be shipped directly from Fuji
$1,469.00

T

Free Shipping

Click Checkmark for Details

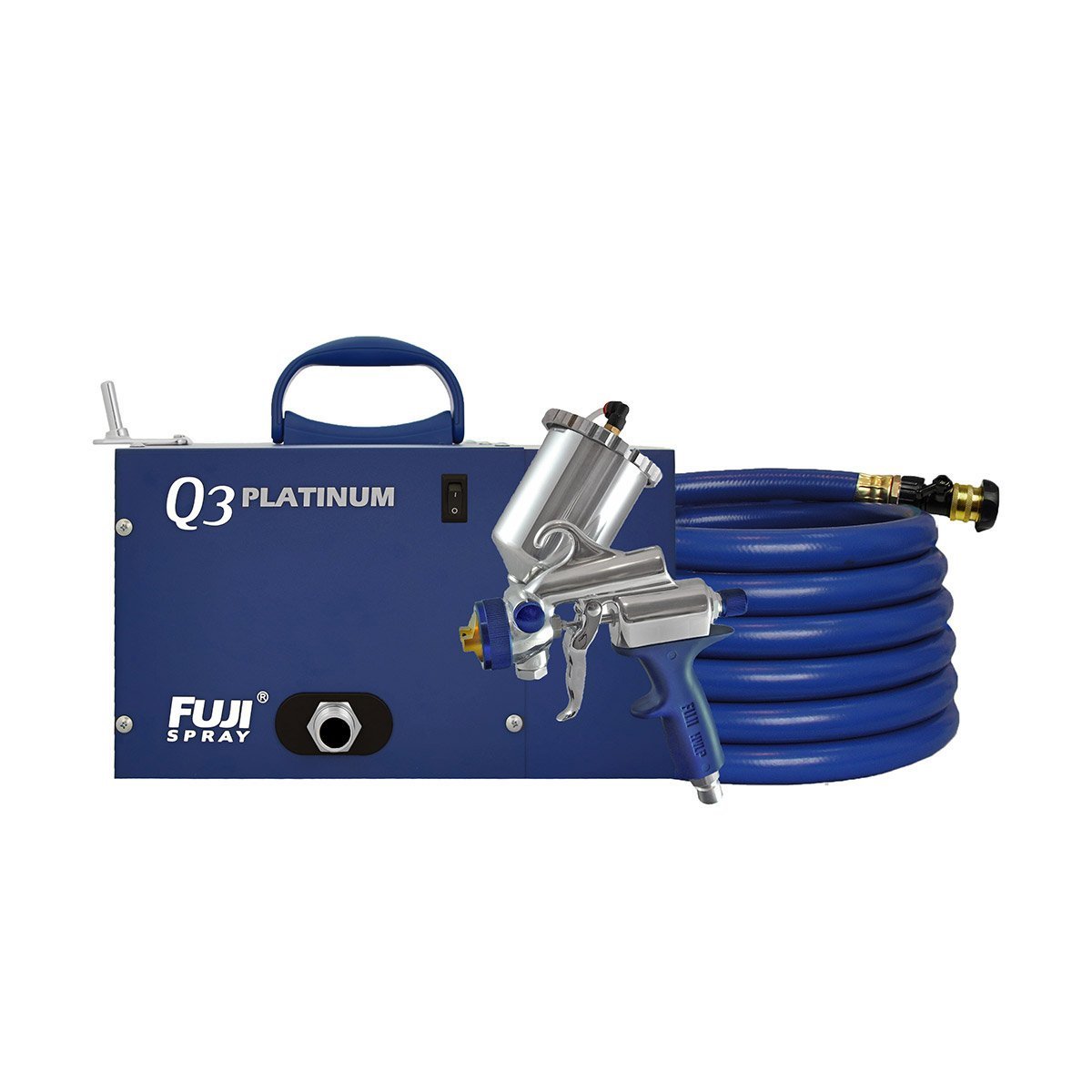

Fuji Q3 Platinum™ XPC-Series HVLP System Gravity Feed

SKU: GXPC2893

The Q Platinum™ Series features many new technological advancements. Incorporated into its design is a proprietary Heat Dissipation Box (HDB). The HDB expels excess heat from the turbine resulting in much cooler operating temperatures. Less heat translates to longer motor life for your turbine. Because the hot air is routed to the rear of the turbine and passes through 60 holes the process is silent.

The Q3 Platinum™ system has the added feature of extensive noise-reduction. The Fuji noise reduction method is patented in the USA. Research & Development was conducted by engineering staff at Carleton University in Canada under a partial Government grant program. Noise is reduced by over 50% making this the quietest 3-stage turbine available today. The G-XPC™ non-bleed Gravity Spray Gun also features an exclusive side Pattern Control Knob to adjust the Fan Size and comes installed with a 1.4mm Air Cap (High-Efficiency™) which is best for fine finishing with lacquers, enamels, polyurethanes, latex, water based coatings and more.

The G-XPC™ gun features the side mounted 400cc Gravity Cup and the tilt feature which easily allows the operator to spray in any direction including upwards. The angle of the Gravity Cup 400cc (.85 Pint) can be adjusted. This cup is now pressurized so you have the full range of spraying available to you.

The Q3 Platinum™ 3-stage turbine develops approximately 6.5 psi. This system is ideal for Cabinet Makers and Furniture Refinishers. Perfect for any type of fine-finishing.

At 15ft the Q3 Platinum™ Turbine is only 62 dba, at 20ft is it 59 dba. Normal Conversation is 60 dba..

System Includes:
Q series 3 Stage Turbine
XPC-Series Gravity Feed Spray Gun
1.4mm Air Cap Set
25 Foot (7.62m) Hose
Quick Connect Coupler
Air Control Valve
Viscosity Cup
Cleaning Brush
Wrench
Manual

Turbine Dimensions 14.87" x 11.5" x 9" (37.7 cm x 29.2 cm x 20.9 cm)
Weight 30.6 lbs. (13.9 kg.)
Voltage/Hz 110 - 120 volt / 60Hz
Amps 12 Amp
PSI 6.5
Warranty Limited 24 Month Parts and Labor
