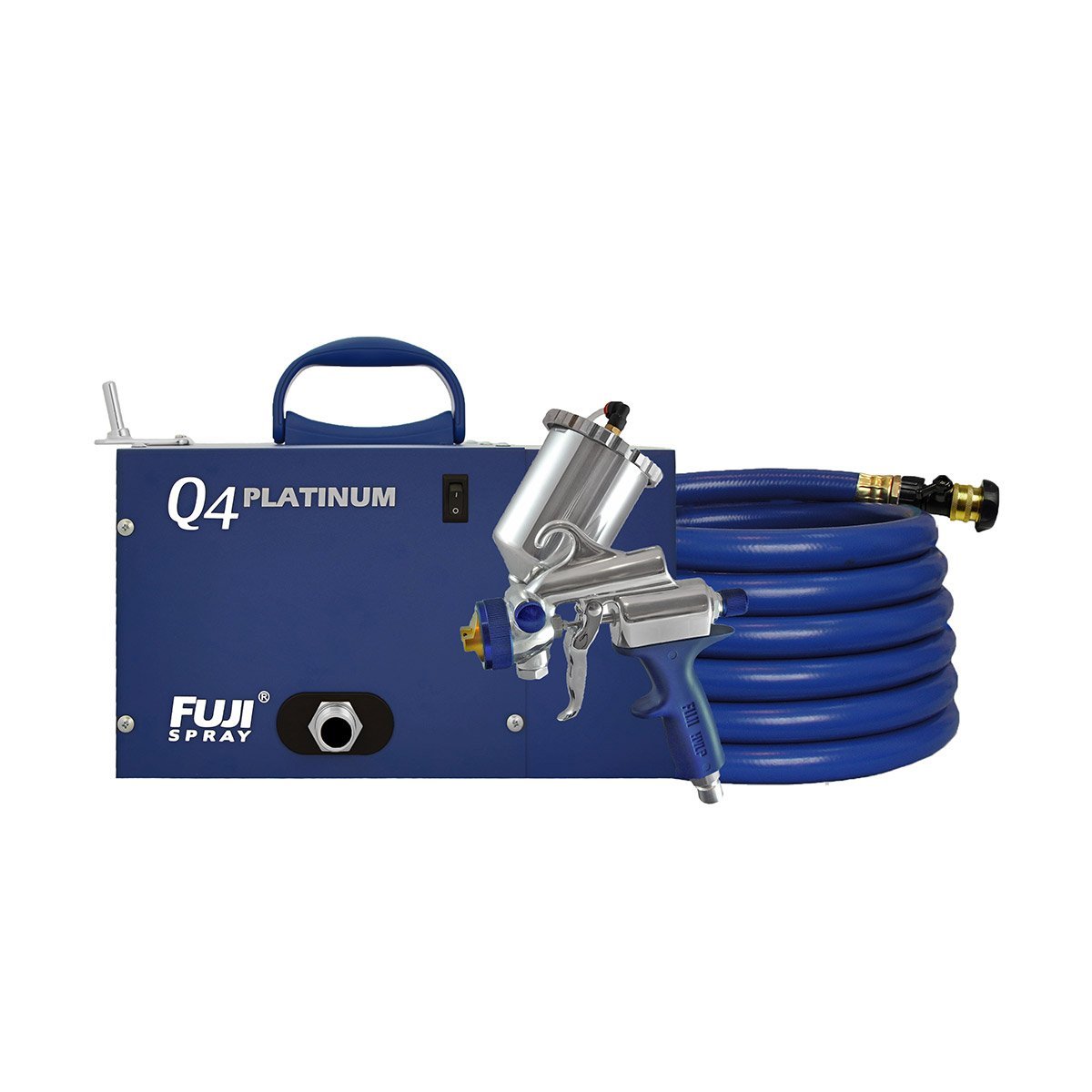

Q4 Platinum XPC-Series HVLP System Gravity Feed - UM_FMI

Fuji Spray

Q4 Platinum XPC-Series HVLP System Gravity Feed

SKU: GXPC-2894

order today only 3 left in stock
$1,709.00

T

Free Shipping

Click Checkmark for Details


Fuji Q4 Platinum™ XPC-Series HVLP System Gravity Feed

SKU: GXPC2894

The Q Platinum™ Series features many new technological advancements. Incorporated into its design is a proprietary Heat Dissipation Box (HDB). The HDB expels excess heat from the turbine resulting in much cooler operating temperatures. Less heat translates to longer motor life for your turbine. Because the hot air is routed to the rear of the turbine and passes through 60 holes the process is silent.

The Q4 Platinum™ is for Paint Contractors, industrial and commercial refinisher’s looking for a powerful 4-stage system that can spray a variety of different material at ease. The Q4 Platinum™ 4-stage turbine develops approximately 9 psi, allowing for less thinning of paints than a 3 or 2 stage Turbine. The Q4 Platinum™ Turbine is perfect for fine-finishing of cabinets, furniture, as well as medium to heavy painting projects. The G-XPC™ non-bleed Gravity Spray Gun also features an exclusive side Pattern Control Knob to adjust the Fan Size and comes installed with a 1.4mm Air Cap (High-Efficiency™) which is best for fine finishing with lacquers, enamels, polyurethanes, latex, water based coatings and more.

The G-XPC™ gun features the side mounted 400cc Gravity Cup and the tilt feature which easily allows the operator to spray in any direction including upwards. The angle of the Gravity Cup 400cc (.85 Pint) can be adjusted. This cup is now pressurized so you have the full range of spraying available to you.

At 15ft the Q4 Platinum™ Turbine is only 61 dba, at 20ft it is 58 dba. Normal Conversation is 60 dba.

System Includes:
Q Series 4 Stage Turbine
XPC-Series Gravity Feed Spray Gun
1.4mm Air Cap Set
25 Foot (7.62m) Hose
Quick Connect Coupler
Air Control Valve
Viscosity Cup
Cleaning Brush
Wrench
Manual

Turbine Dimensions 14.87" x 11.5" x 9" (37.7 cm x 29.2 cm x 20.9 cm)
Weight 31.2 lbs. (14.1 kg.)
Voltage/Hz 110 - 120 volt / 60Hz
Amps 13 Amp
PSI 9.0
Warranty Limited 24 Month Parts and Labor
